Econoline Identification

Here is the Warranty plate data from a specific Ford Econoline

Notes:

Year - Model Name:		1966 E100
Warranty Number:		E14AH732027
Series Code (1st - 3rd digits):	E14	Ford Econoline - Van

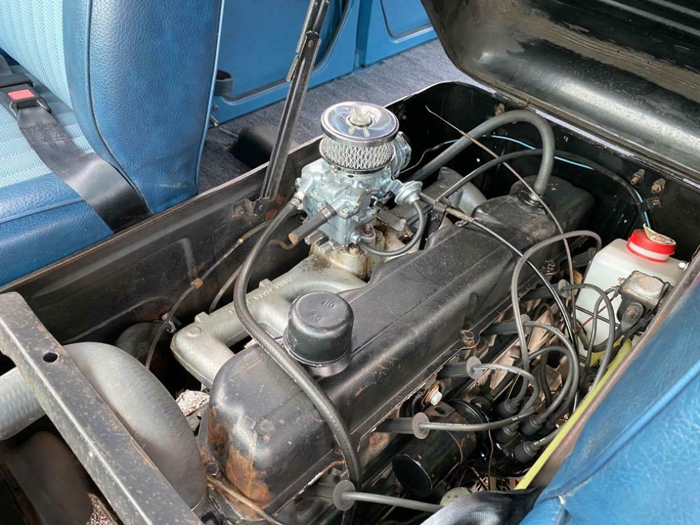

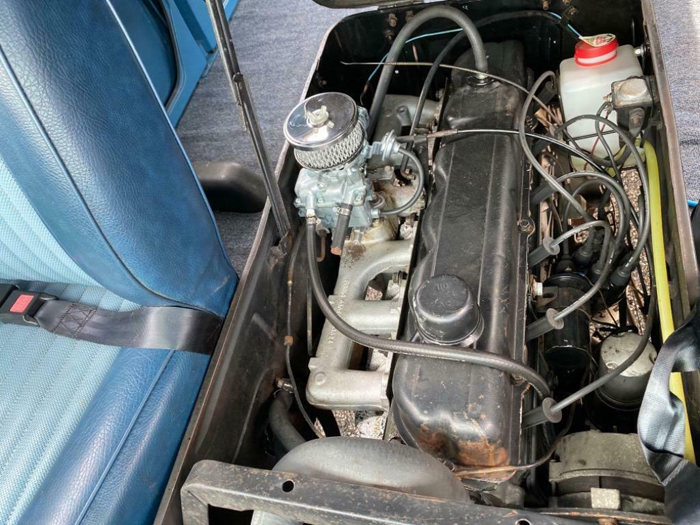

Engine (4th digit):	A	240 cui I6
Assembly Plant (5th digit):	H	Lorain, Ohio
Year/month built:		August 1965
Wheelbase (front to rear axle distance):	090	90"
Color:	WM	Marlin Blue (Medium Blue) 1742 & Wimbledon White 1619
Model:	E142	Van (Heavy Duty) (exc. state of Pa.) 4,930 lbs. GVW, 1-ton payload
Interior Soft Trim (first digit of Body):	0	unknown
Body Style (last digits in Body):	89	Van
Transmission:	G	Ford C4 3-speed automatic Gears 1st=2.46, 2nd=1.46, 3rd=1.00, R=2.20
Rear Axle:	B1	WDF-L, 8-3/4" gear (9" axle) 3.50:1 ratio, 3050 lbs. rating, Equalock - limited slip
MAX G.V.W. LBS:	4930	4,930 pounds - gross vehicle weight. 1-ton (2,000 lbs.) payload capacity
CERT. NET H.P. (Horsepower) R.P.M:	129 4000	129 H.P. @ 4,000 R.P.M.
Regional Sales District:	89	Transportation Services
Special Order:		not a special order (or missing data)

NOTES: The following may or may not apply to this particular vehicle.

Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-January 1961, Ford started installing a ballast (weight) above the gas tank. The GVW is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity

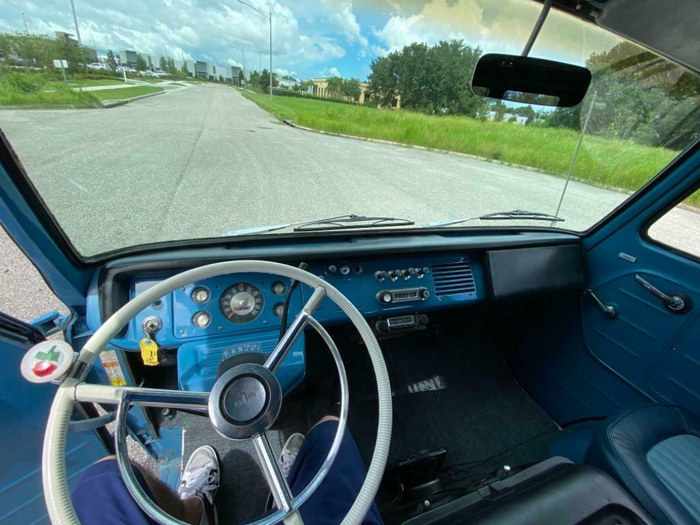

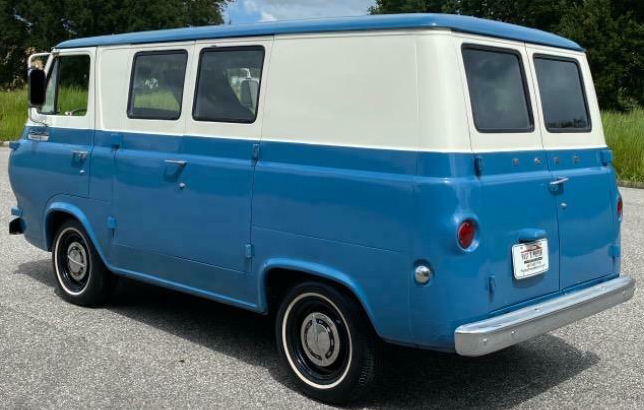

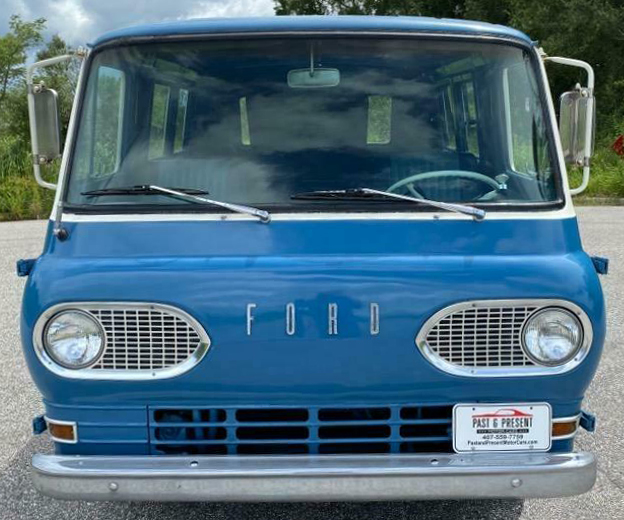

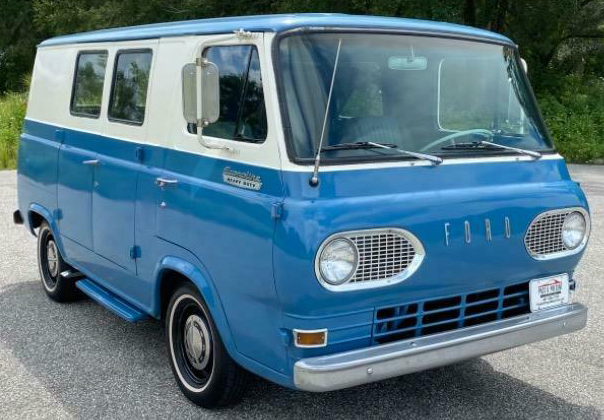

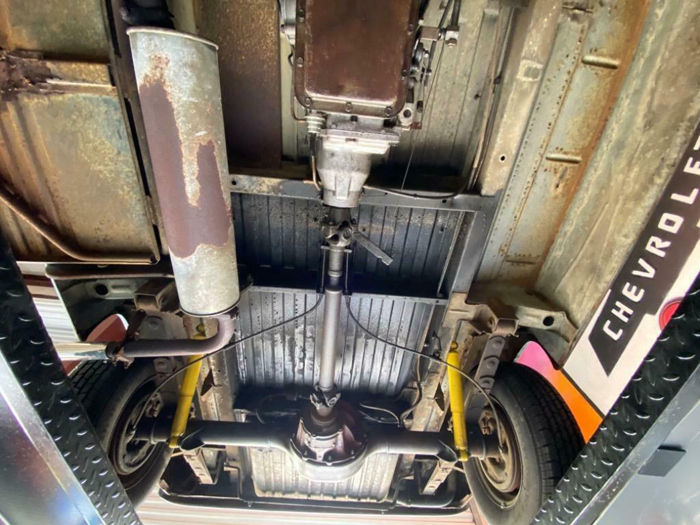

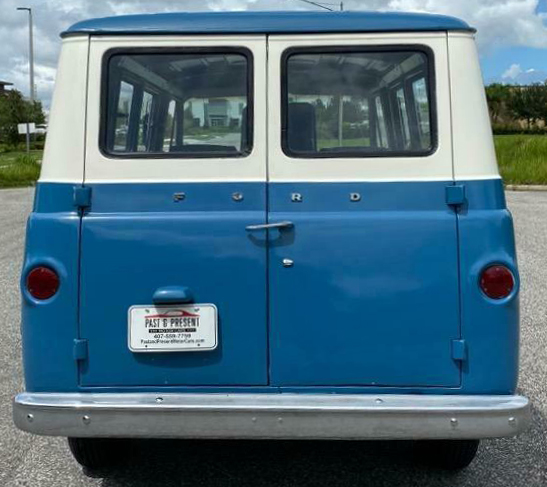

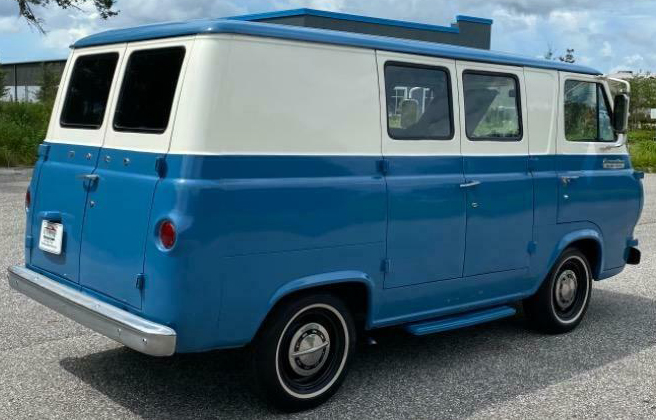

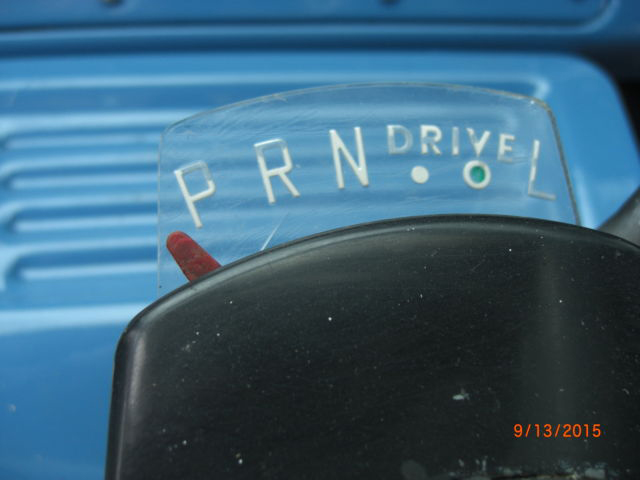

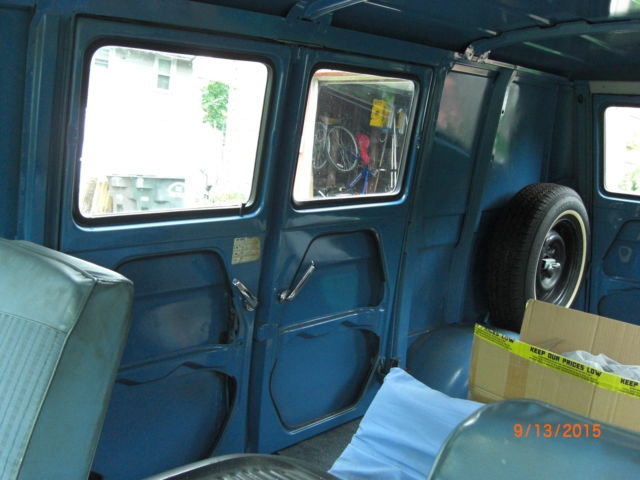

Photos

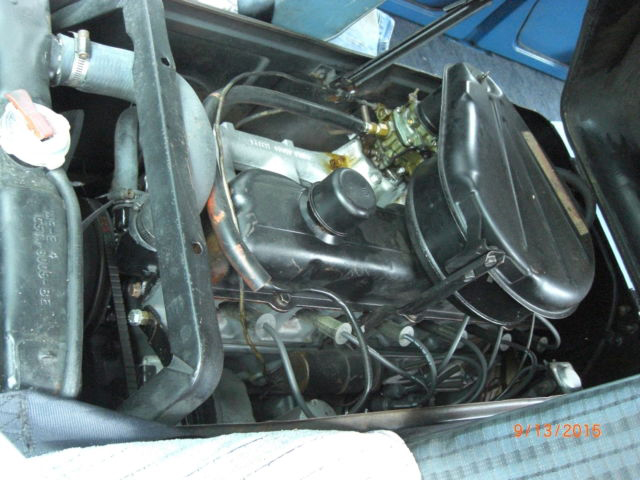

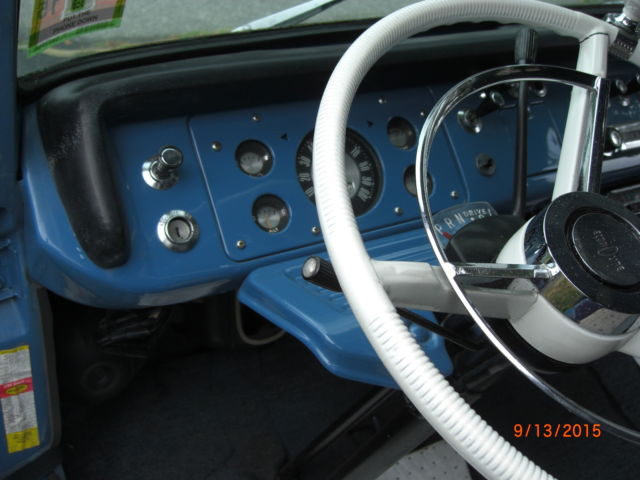

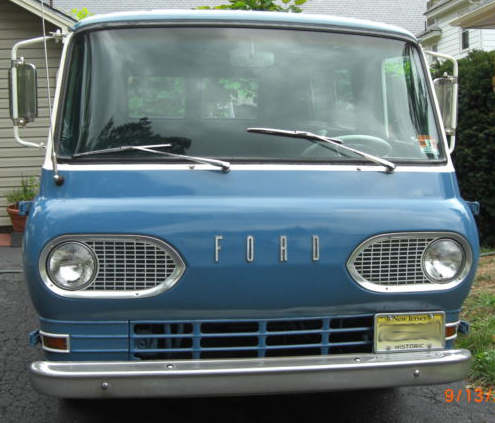

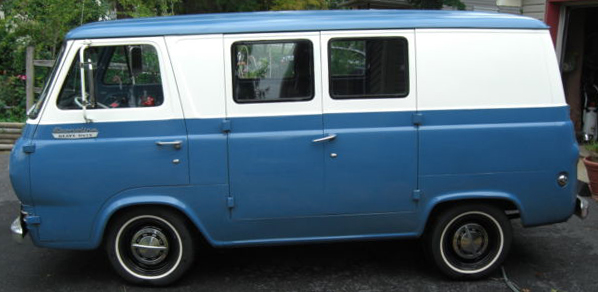

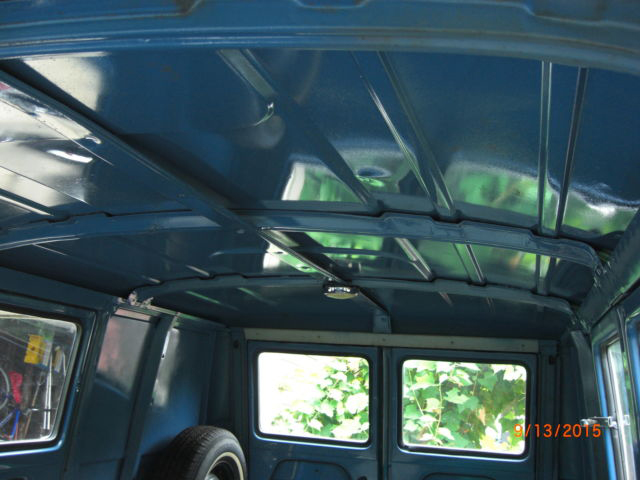

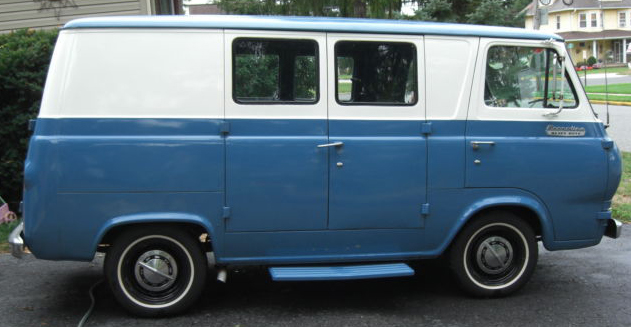

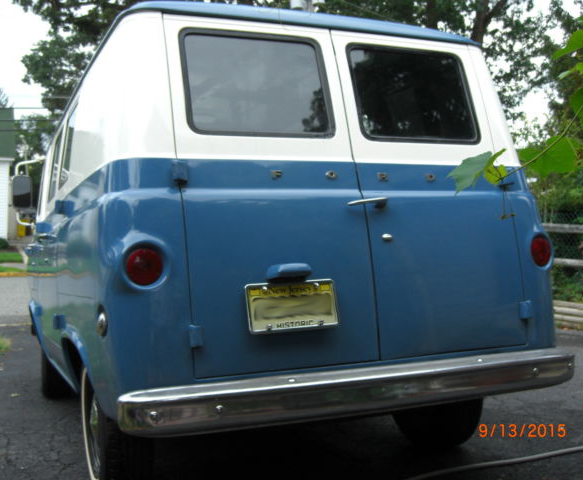

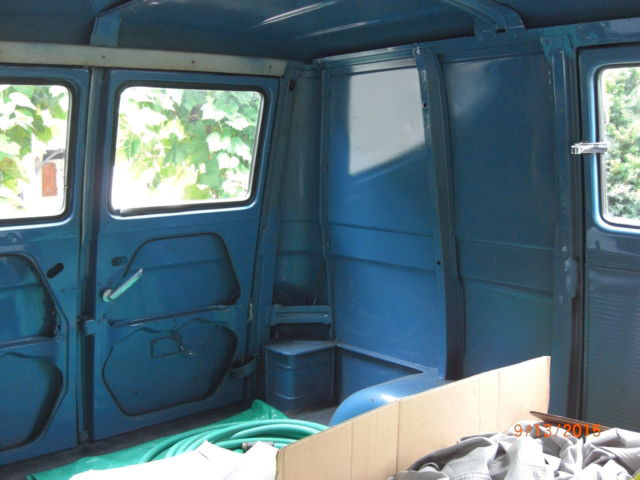

2015

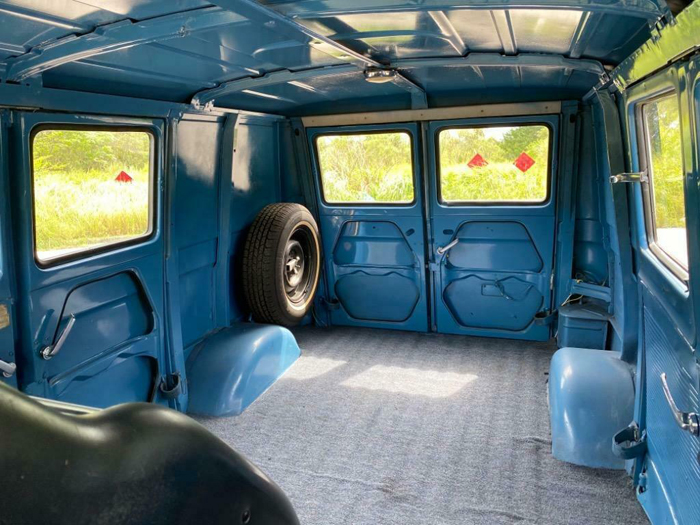

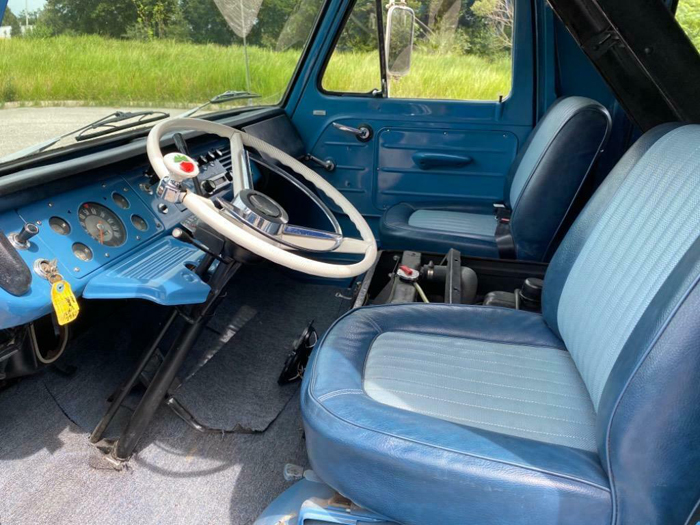

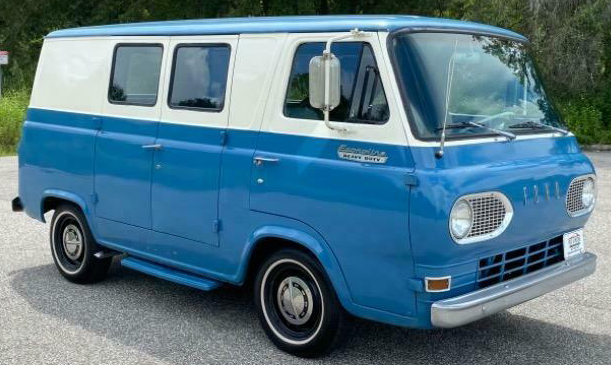

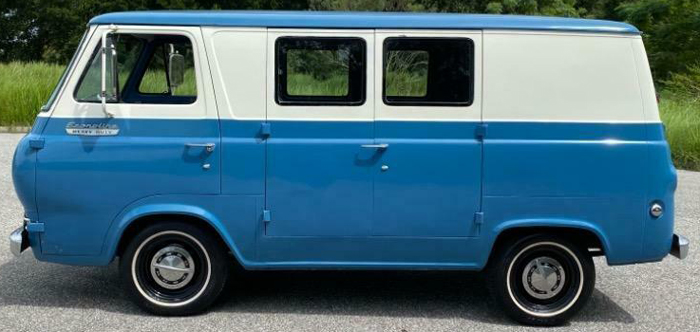

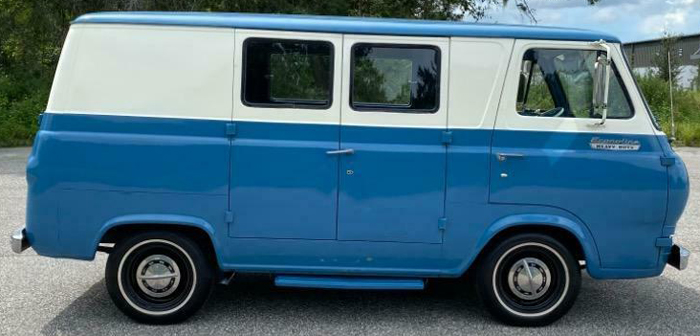

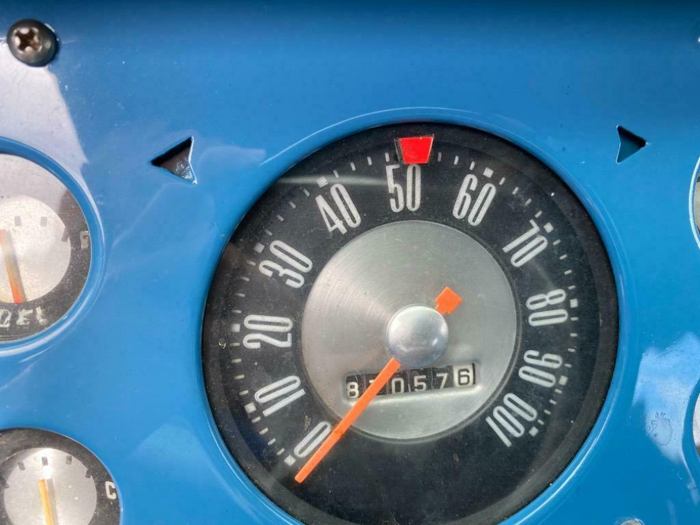

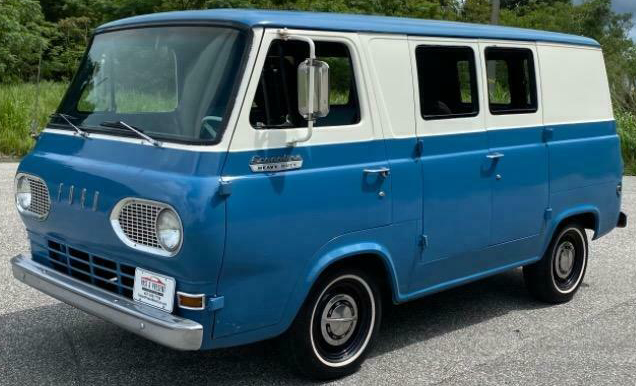

2020
