Econoline Identification

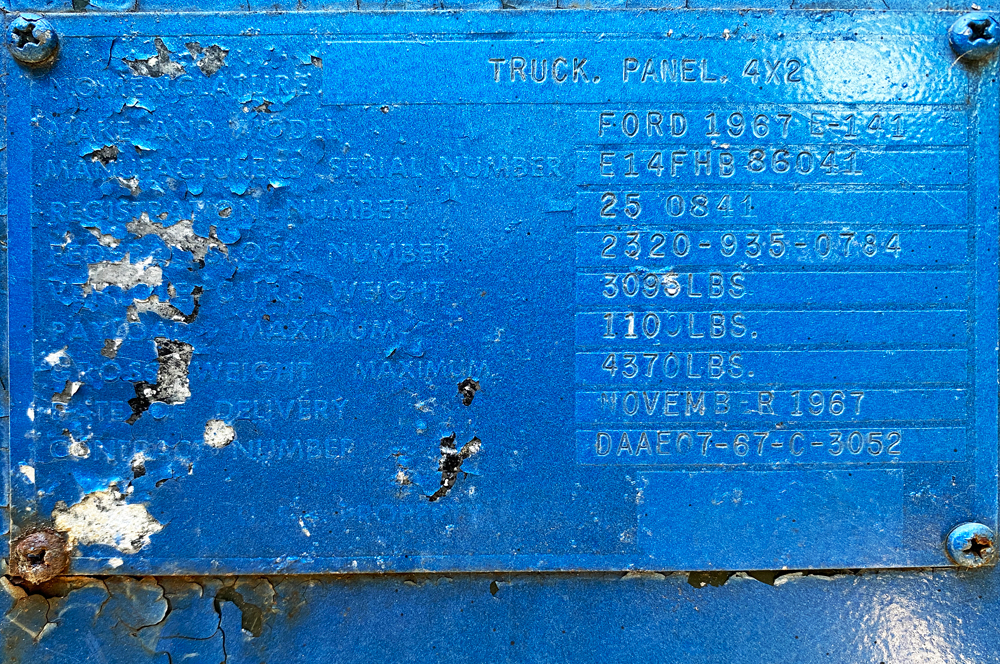

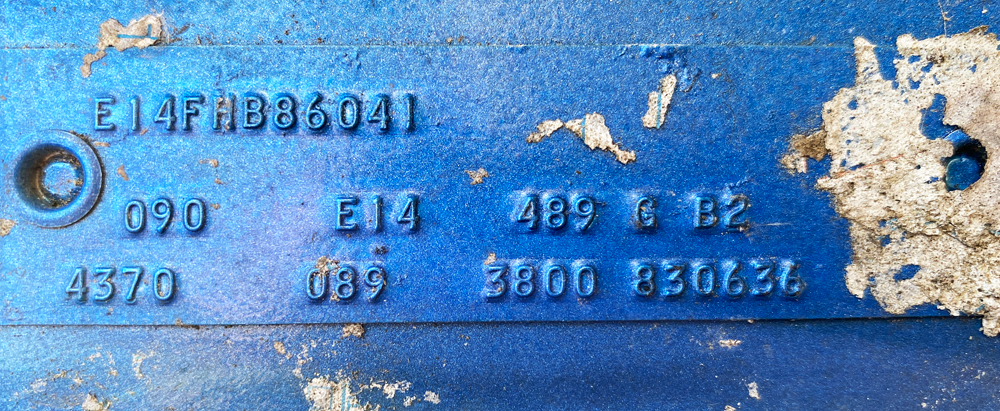

Here is the Warranty plate data from a specific Ford Econoline

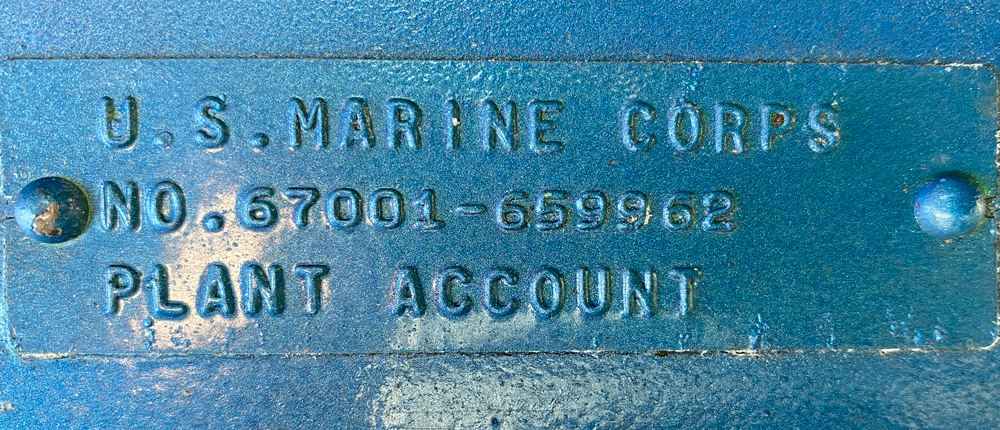

Notes: Originally U.S. Marine Corp van

Year - Model Name:		1967 E100
Warranty Number:		E14FHB86041
Series Code (1st - 3rd digits):	E14	Ford Econoline - Van
Engine (4th digit):	F	170 cui I6
Assembly Plant (5th digit):	H	Lorain, Ohio
Year/month built:		November 11-30, 1967
Wheelbase (front to rear axle distance):	090	90"
Color:		if blank = special ordered color
Model:	E14	Van (regular length) non-standard GVW and payload
Interior Soft Trim (first digit of Body):	4	Medium beige crush vinyl and medium beige match stick pattern vinyl
Body Style (last digits in Body):	89	Van
Transmission:	G	Ford C4 3-speed automatic Gears 1st=2.46, 2nd=1.46, 3rd=1.00, R=2.20
Rear Axle:	B2	WDF-J, 8-3/4" gear (9" axle) 4.11:1 ratio, 3050 lbs. rating, Equalock - limited slip
MAX G.V.W. LBS:	4370	4,370 pounds - gross vehicle weight. 3/4-ton (1,500 lbs.) payload capacity
CERT. NET H.P. (Horsepower) R.P.M:	089 3800	89 H.P. @ 3,800 R.P.M.
Regional Sales District:	83	Government
Special Order:	0636	This vehicle was special ordered. If the paint code is blank, it might have been a special paint color.

NOTES: The following may or may not apply to this particular vehicle.

Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-January 1961, Ford started installing a ballast (weight) above the gas tank. The GVW is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity

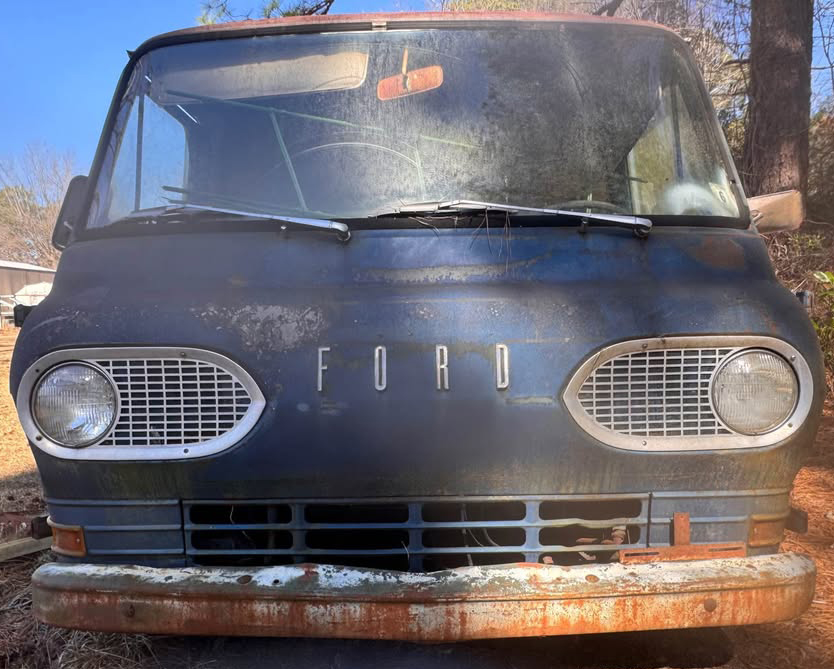

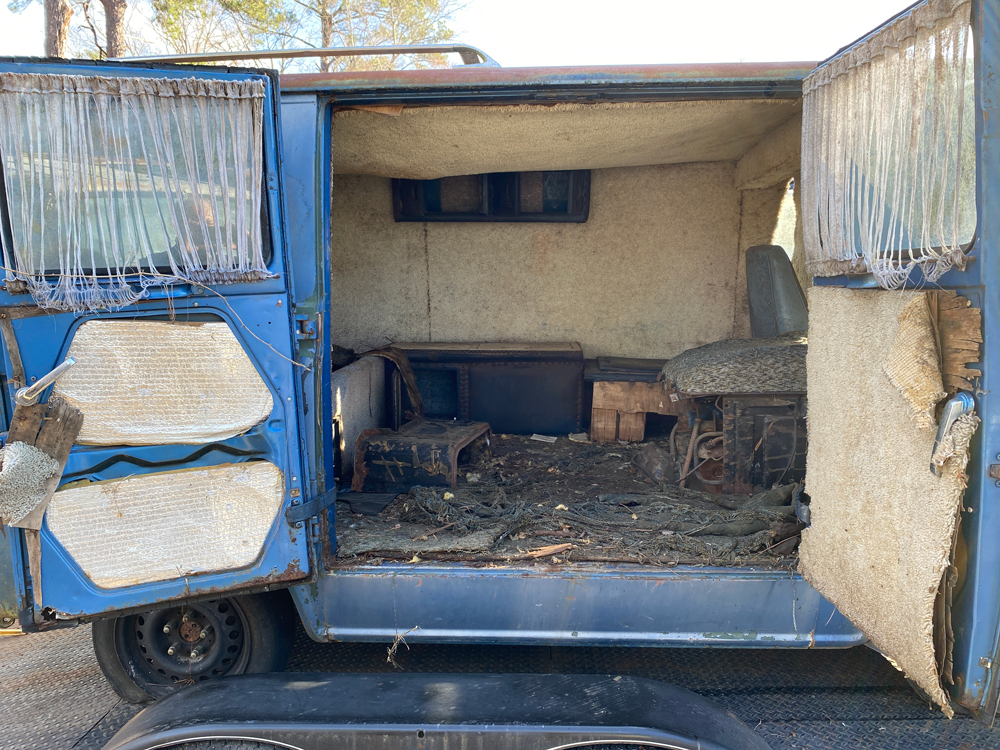

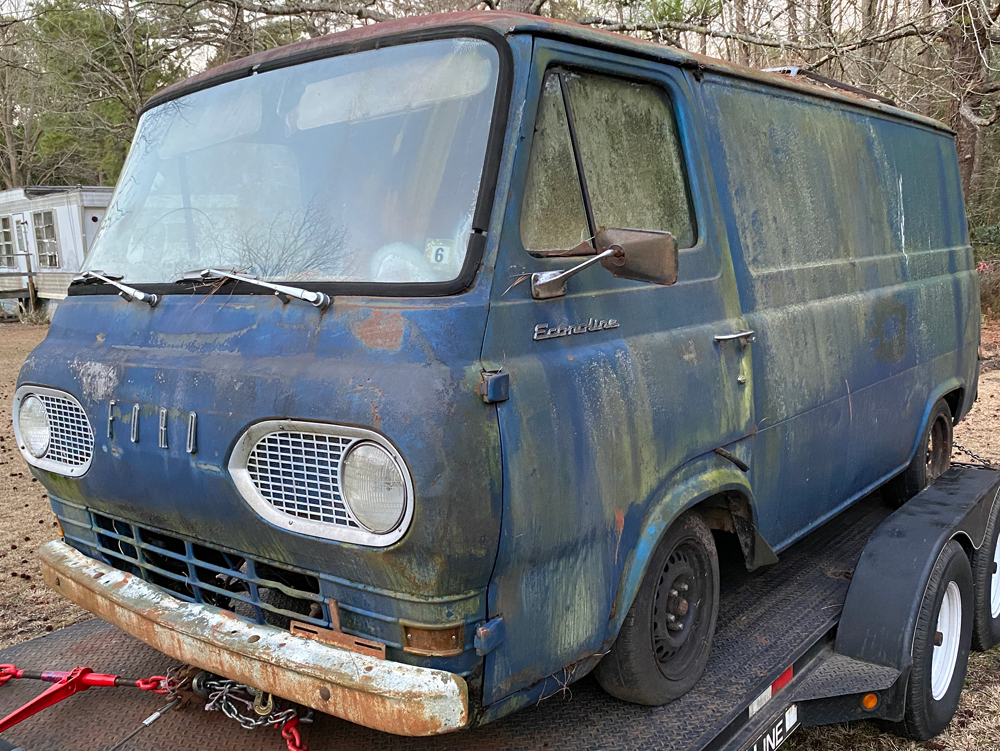

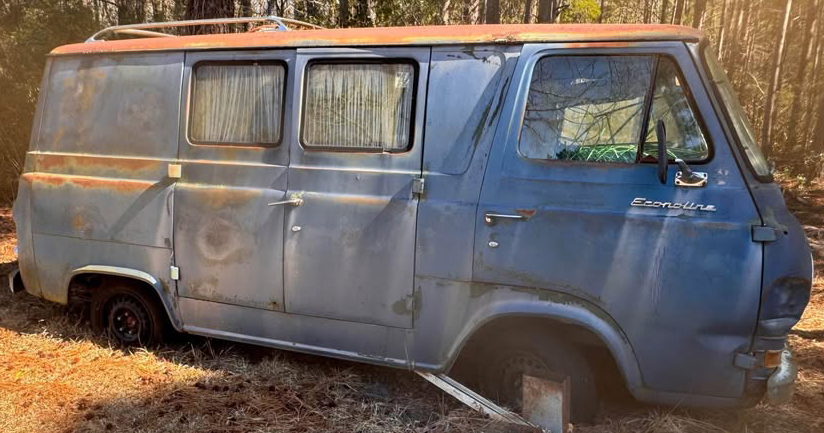

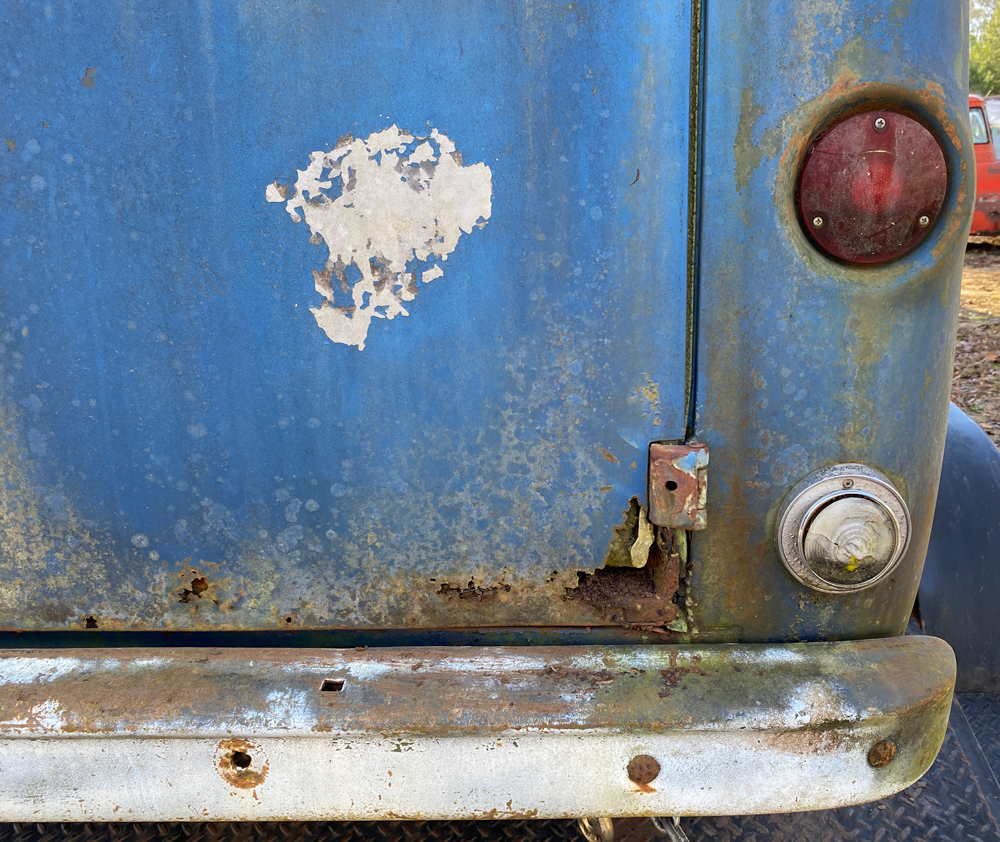

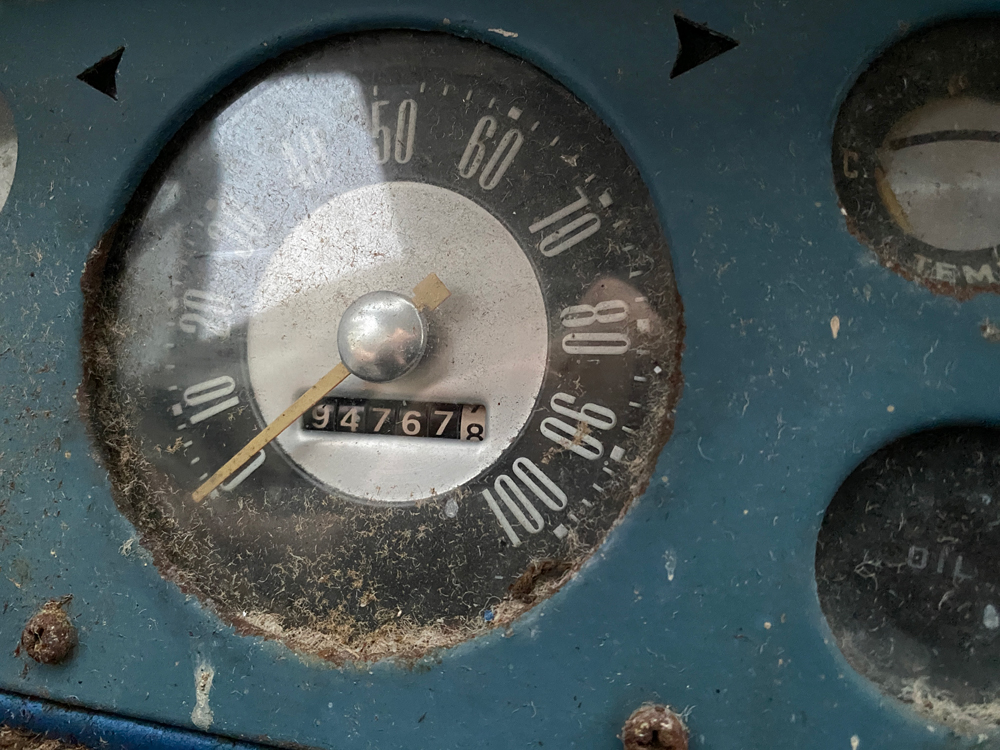

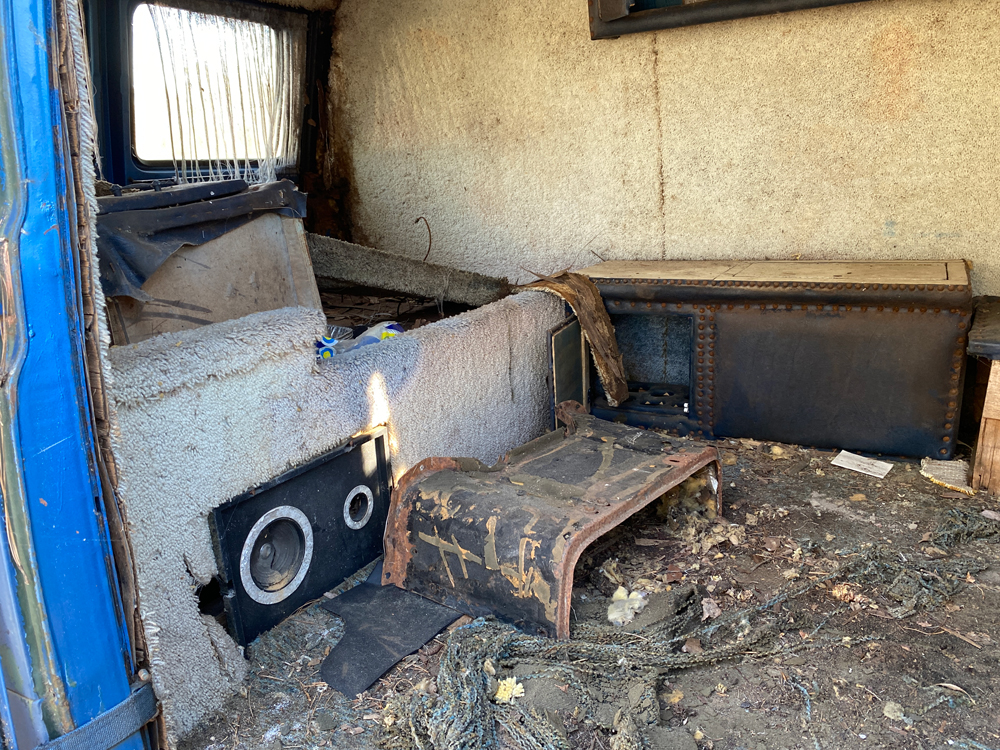

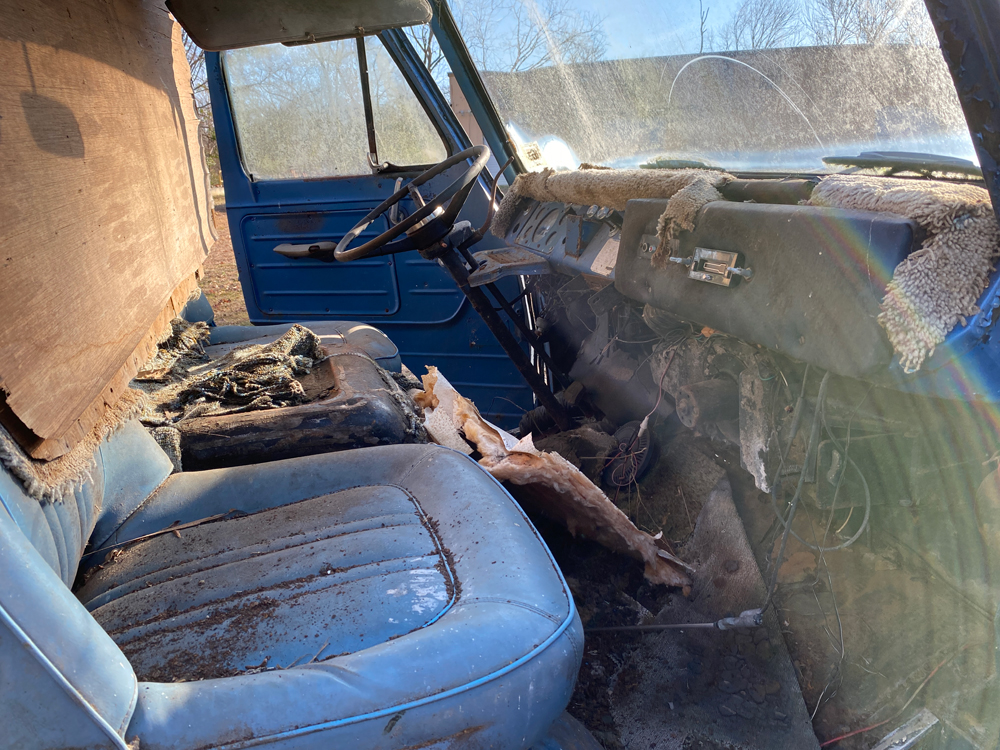

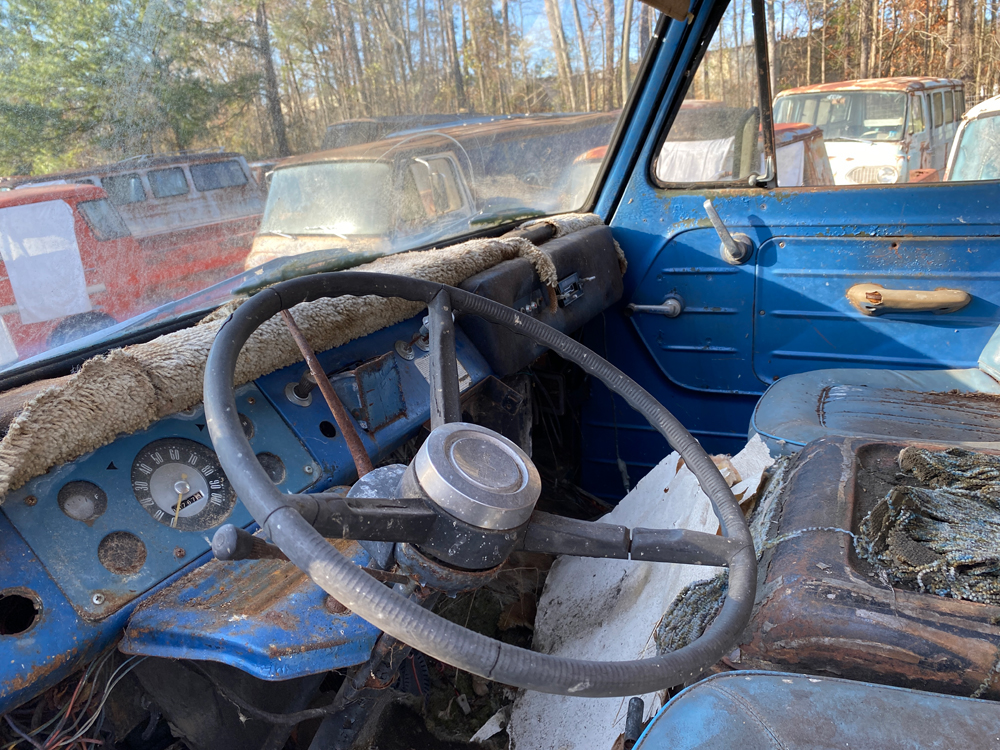

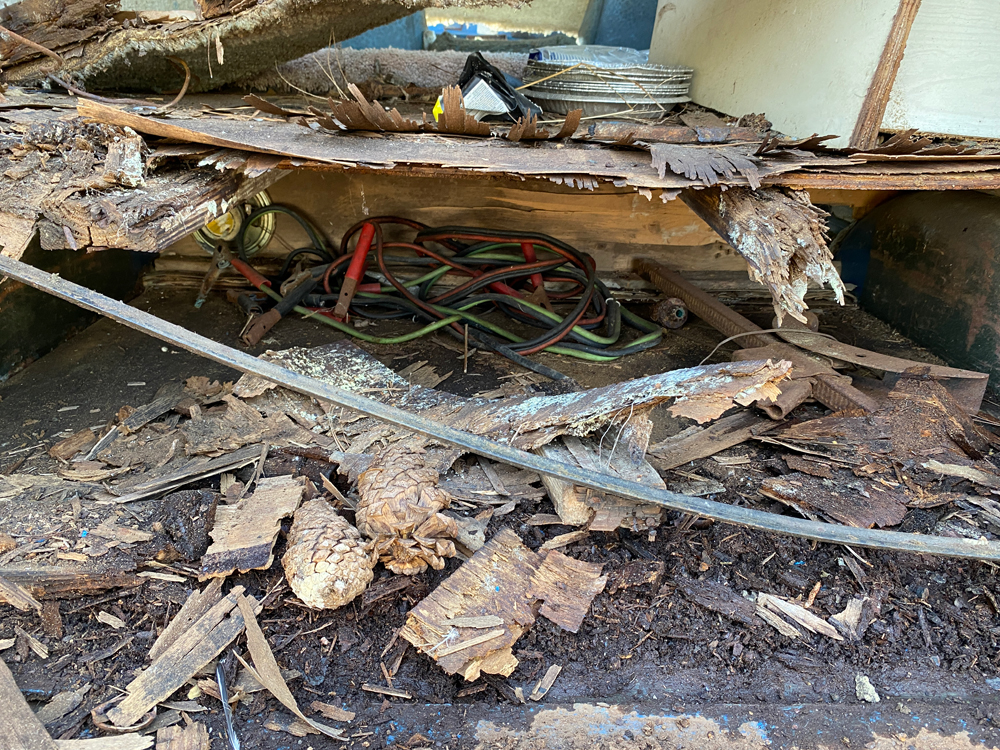

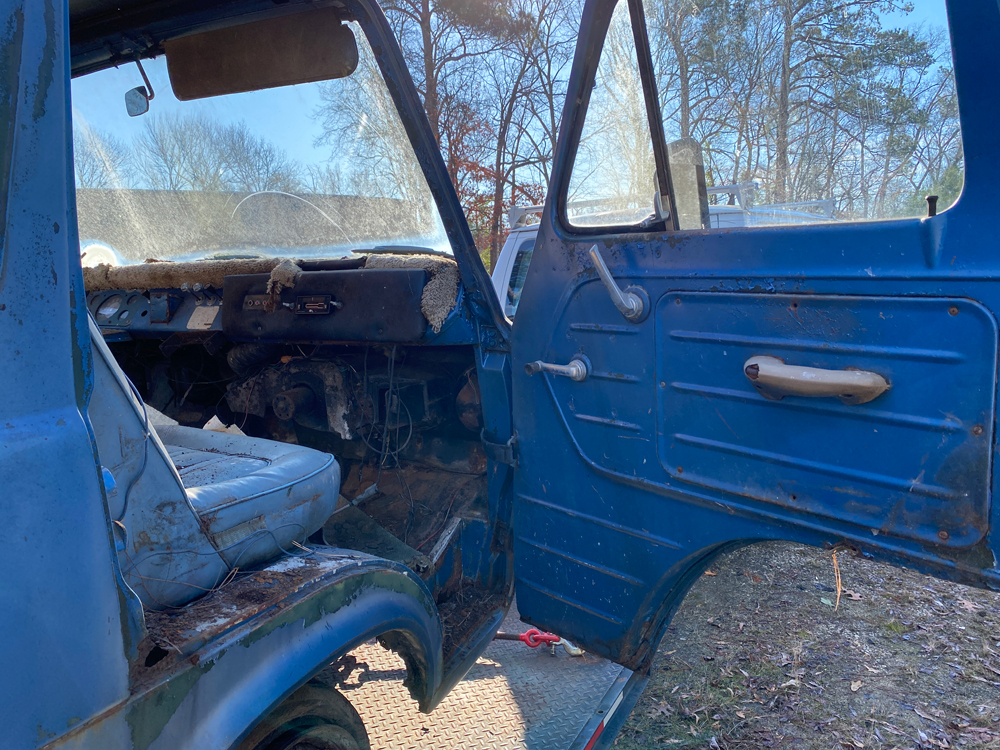

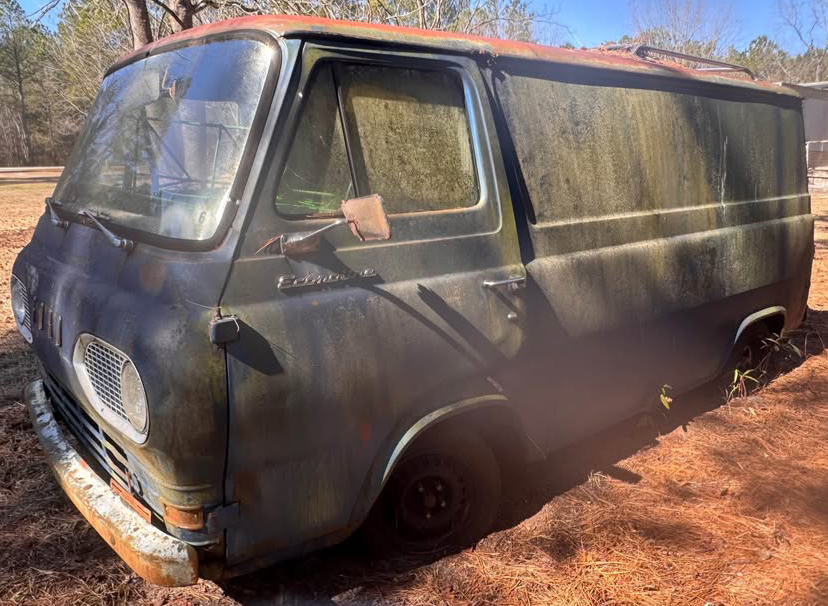

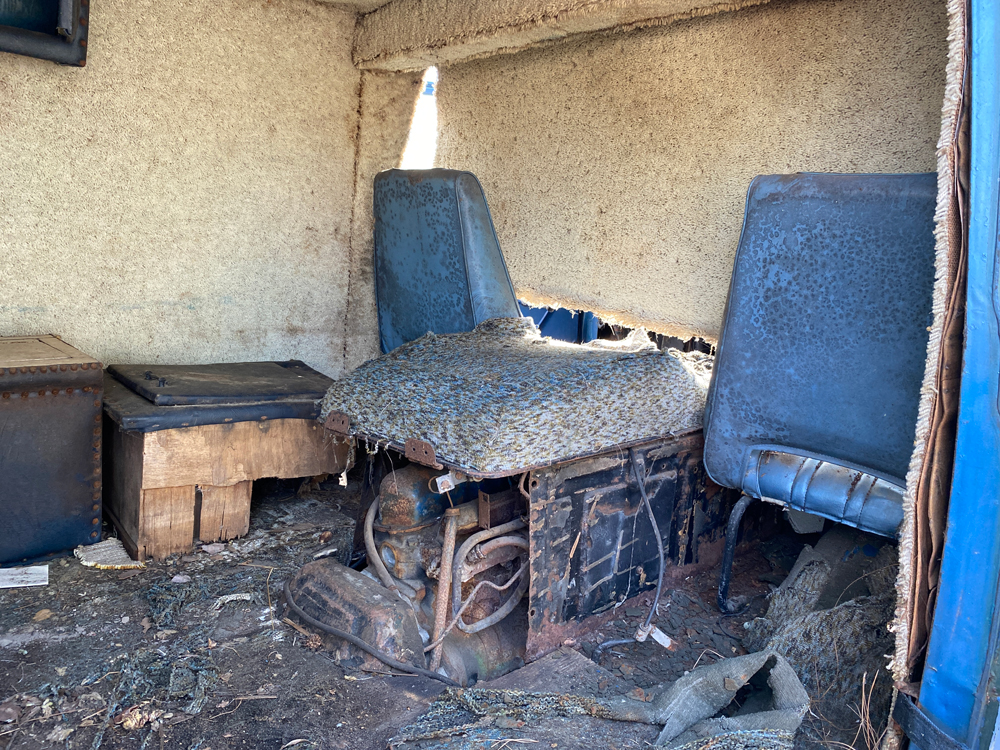

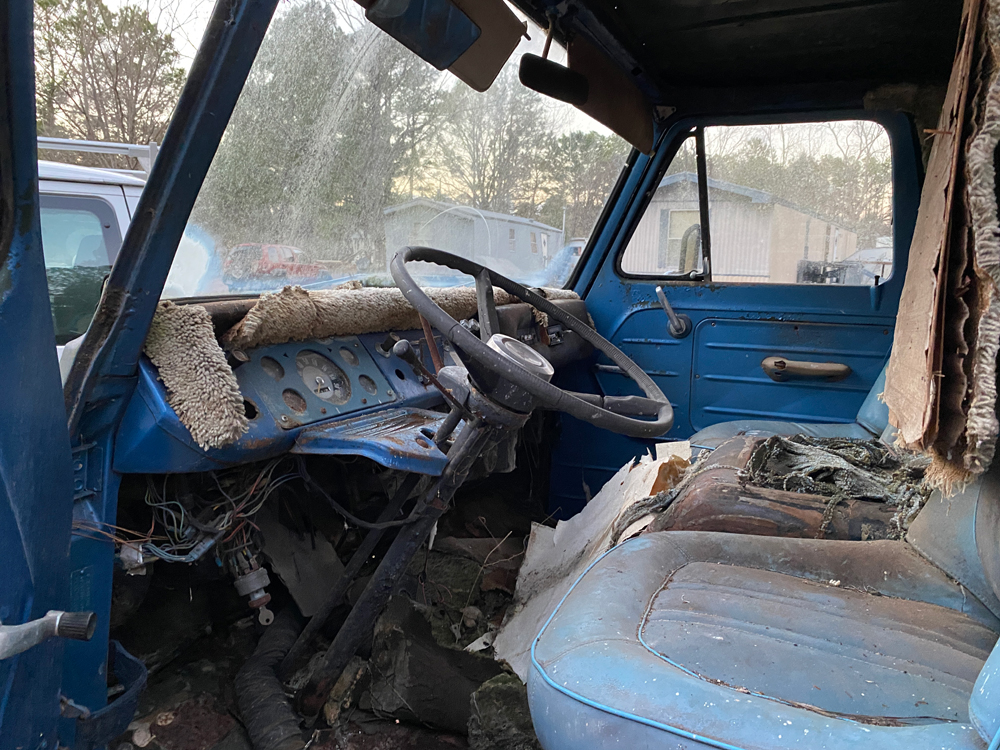

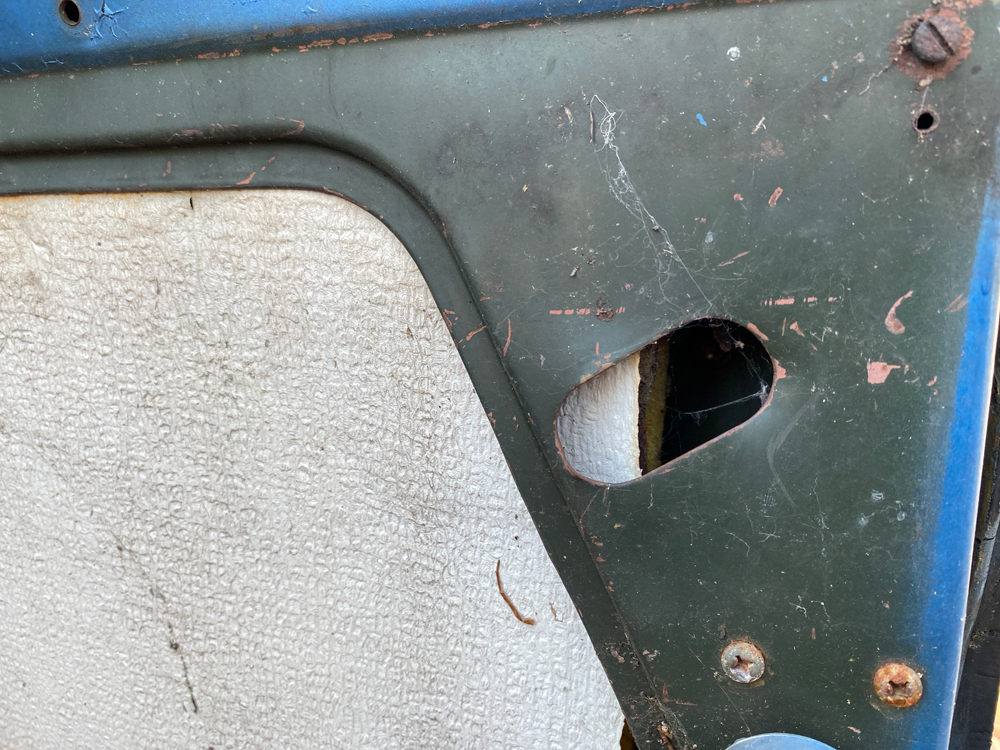

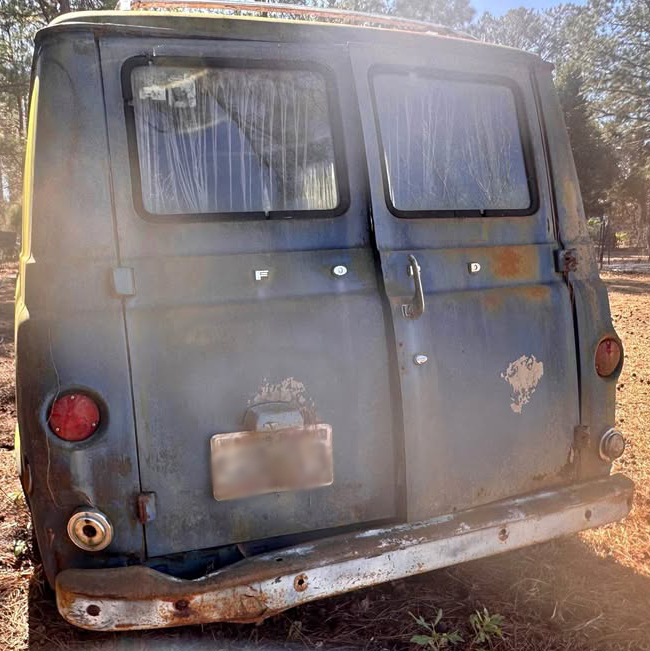

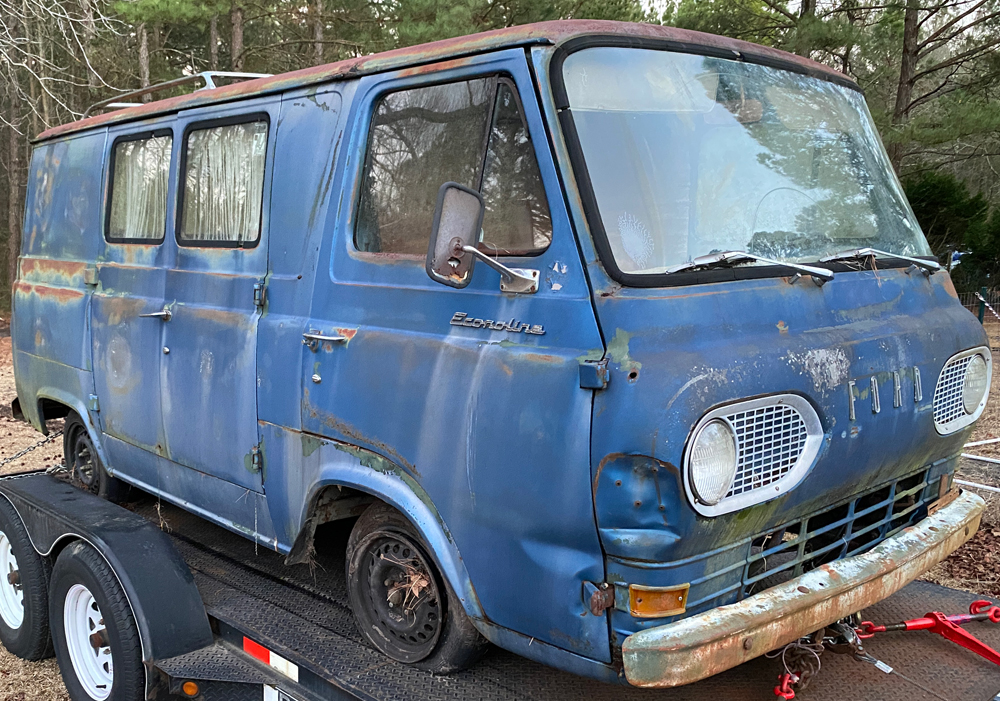

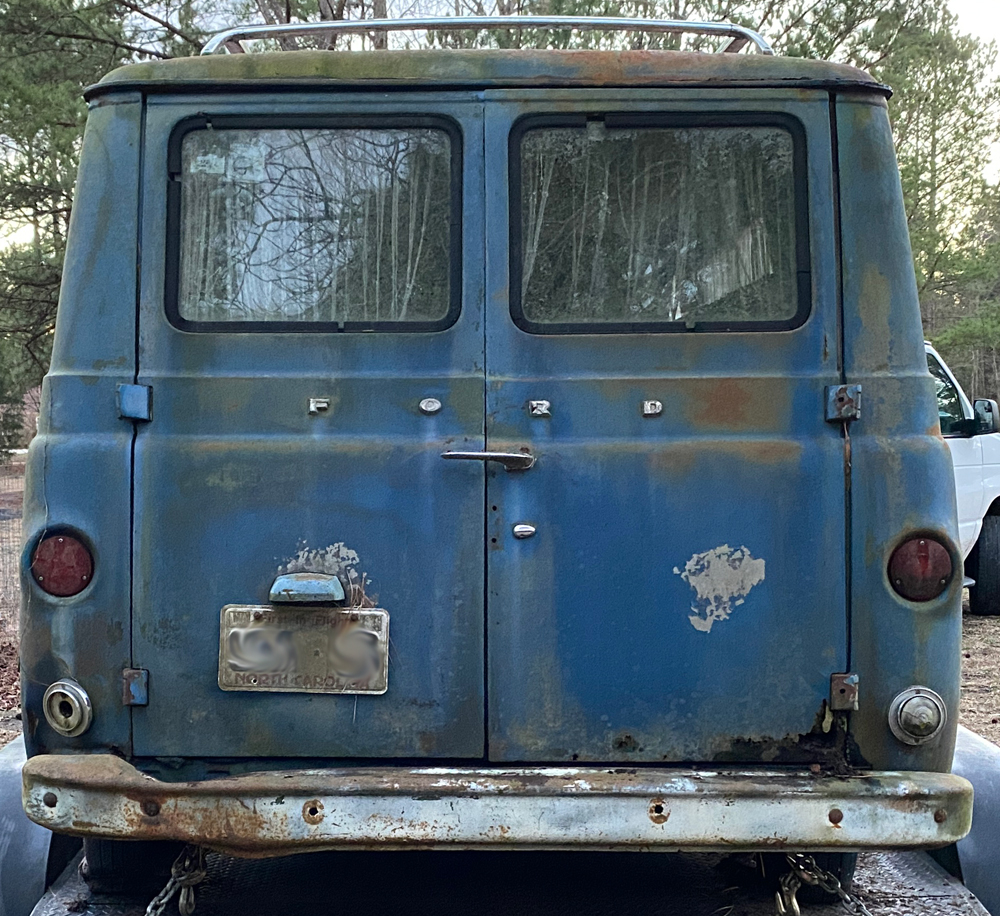

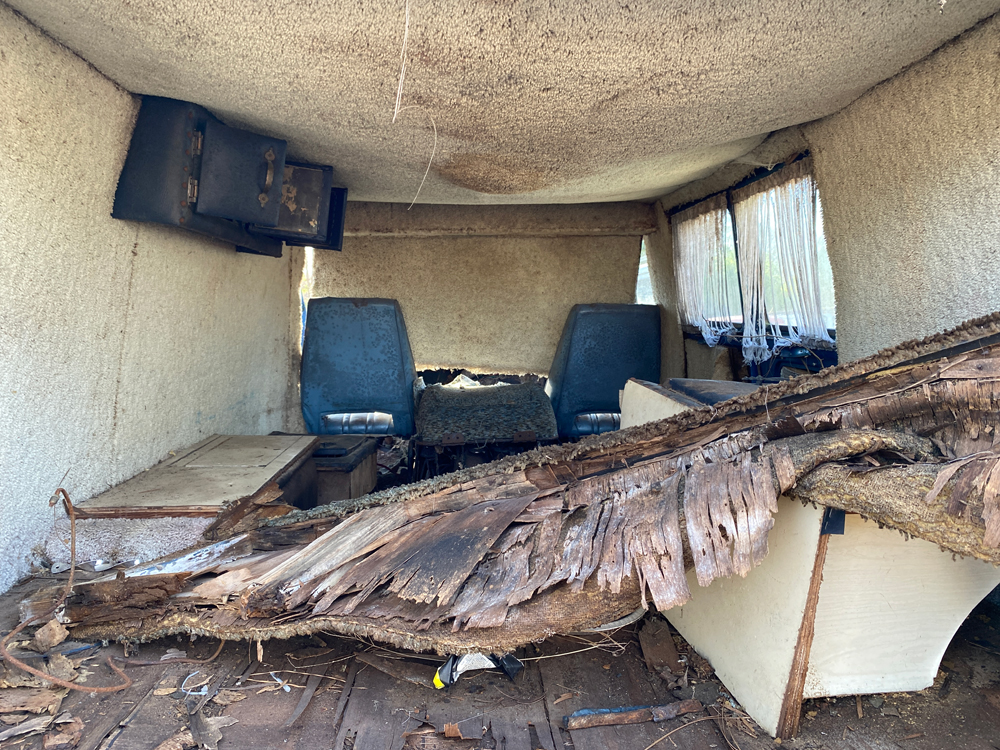

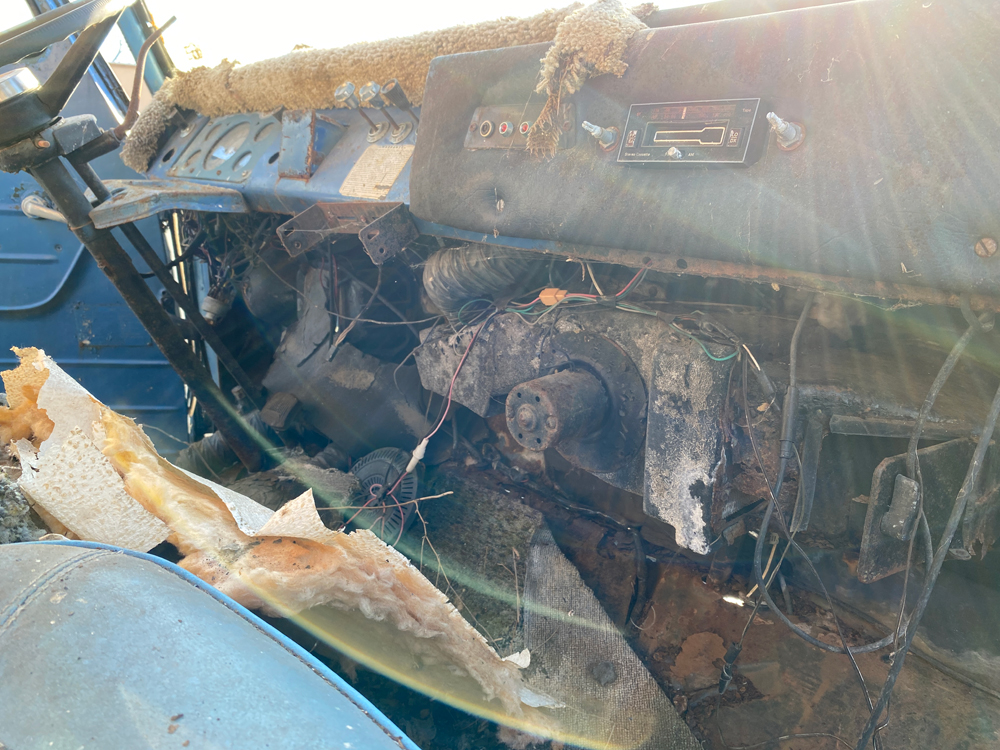

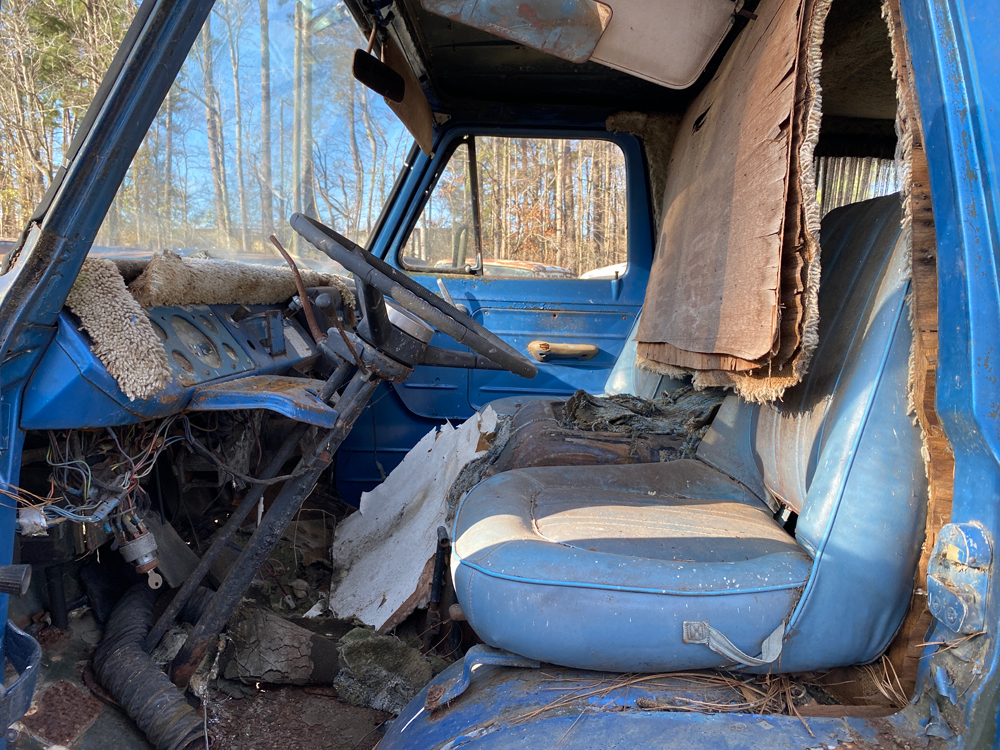

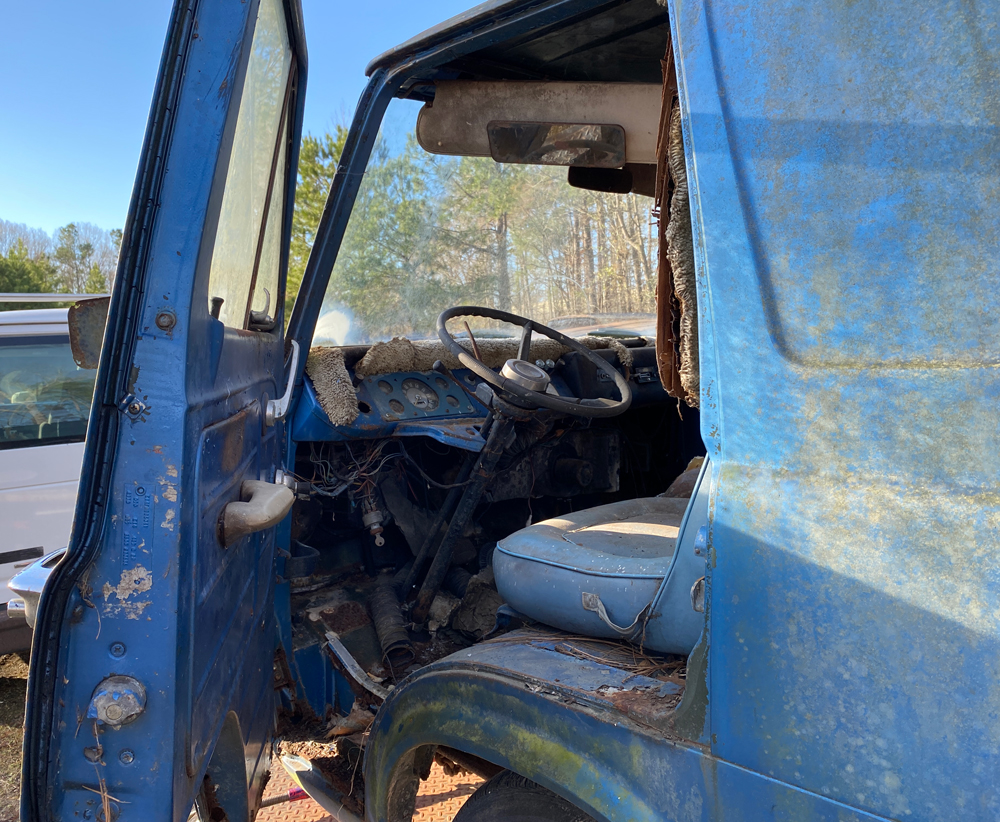

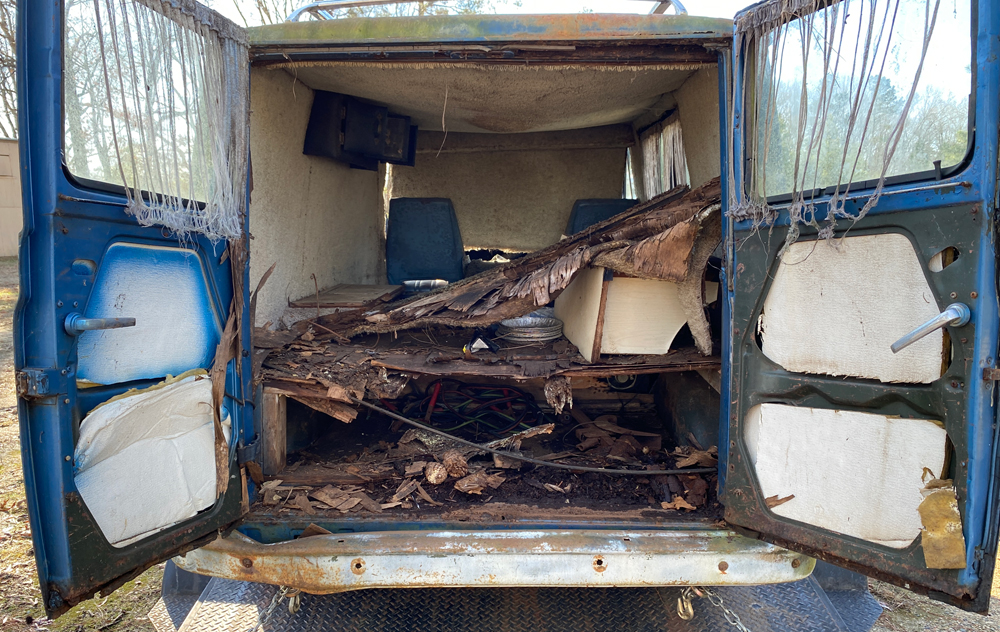

Photos

2025

Thanks for the positive comments that have been left on this site. It is still a work in progress.
