Econoline Identification

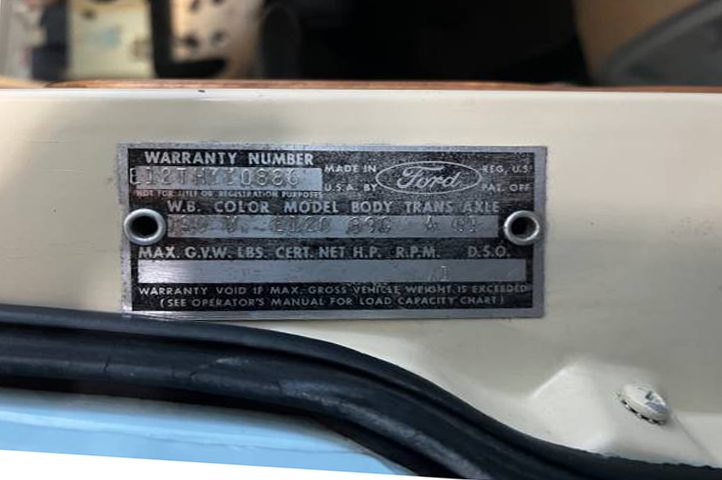

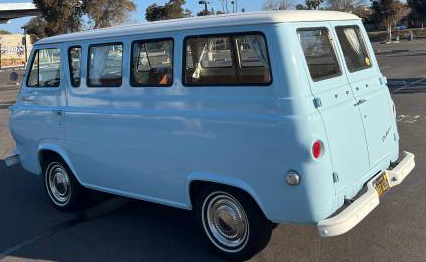

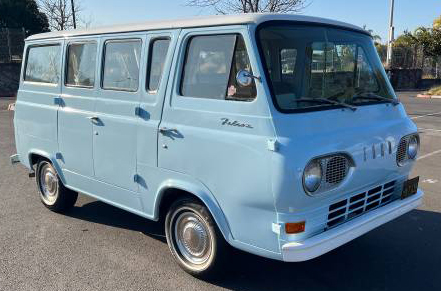

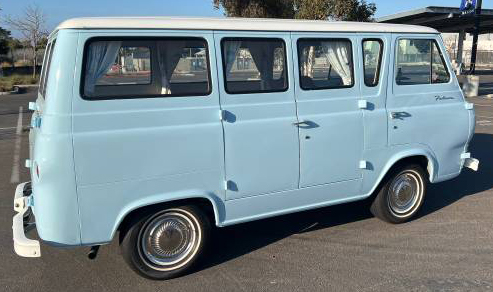

Here is the Warranty plate data from a specific Ford Econoline

window van,

Notes:

Year - Model Name:		1963 E100
Warranty Number:		E12TH330886
Series Code (1st - 3rd digits):	E12	Ford Econoline - Falcon Club Wagon

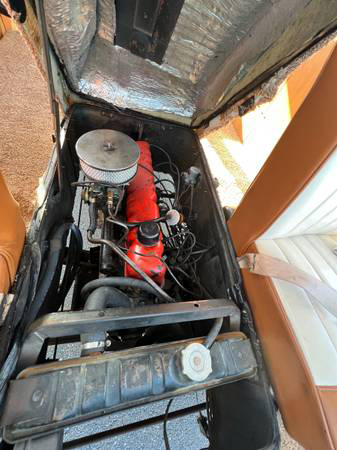

Engine (4th digit):	T	170 cui I6
Assembly Plant (5th digit):	H	Lorain, Ohio
Year/month built:		September 1962
Wheelbase (front to rear axle distance):	090	90"
Color:	Y	Glacier Blue 1553
Model:	E120	Falcon Club Wagon, 1/2-ton payload
Interior Soft Trim (first digit of Body):		not indicated in 1963
Body Style (last digits in Body):	89C	Falcon Club Wagon
Transmission:	A	Ford 3-speed manual, model 3.03 HEF Gears: 1st=3.41, 2nd=1.86, 3rd=1.00, R=3.51
Rear Axle:	01	WCC-D or WCC-M, 7-1/4" gear 3.50:1 ratio, 2300 lbs. rating
MAX G.V.W. LBS:		missing data (not included on Falcon models)
CERT. NET H.P. (Horsepower) R.P.M:		missing data (not included on Falcon models)
Regional Sales District:	71	Los Angeles
Special Order:		not a special order (or missing data)

NOTES: The following may or may not apply to this particular vehicle.

Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-January 1961, Ford started installing a ballast (weight) above the gas tank. The GVW is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity

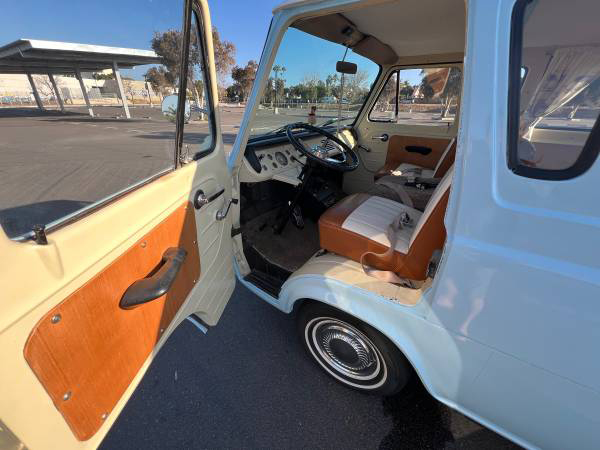

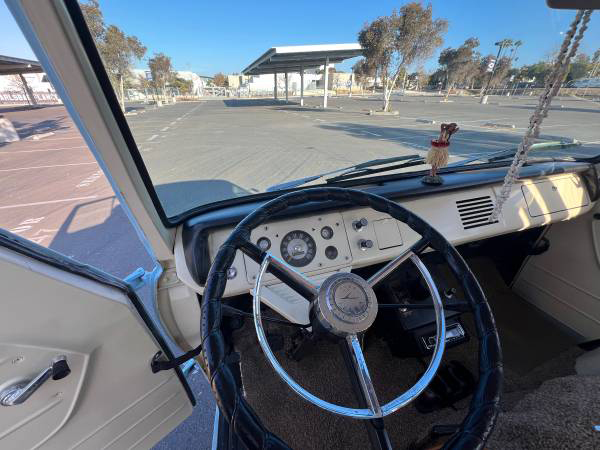

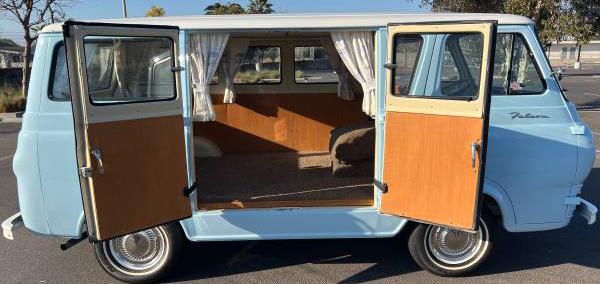

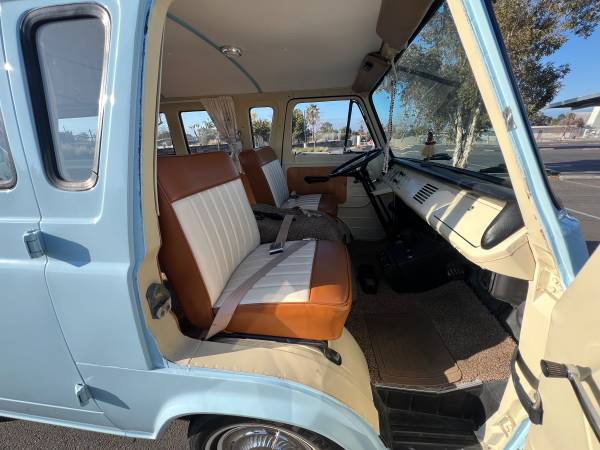

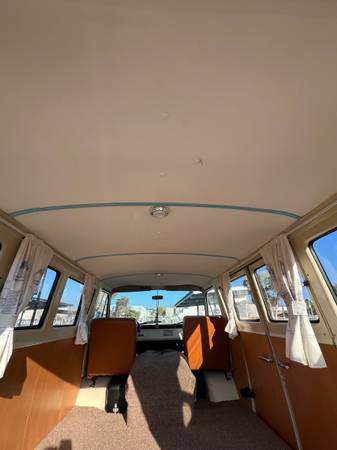

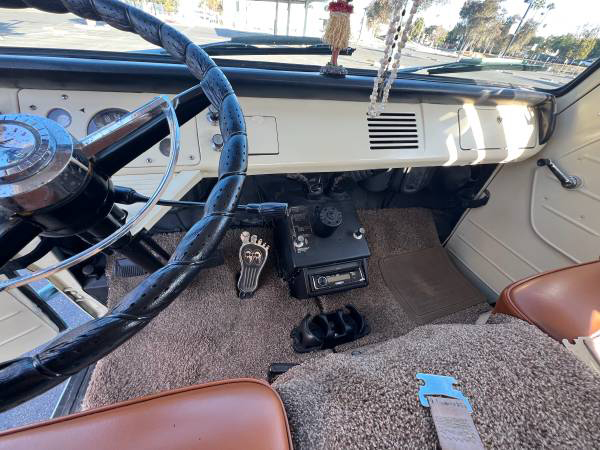

Photos
