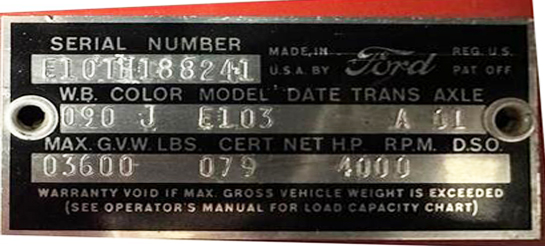

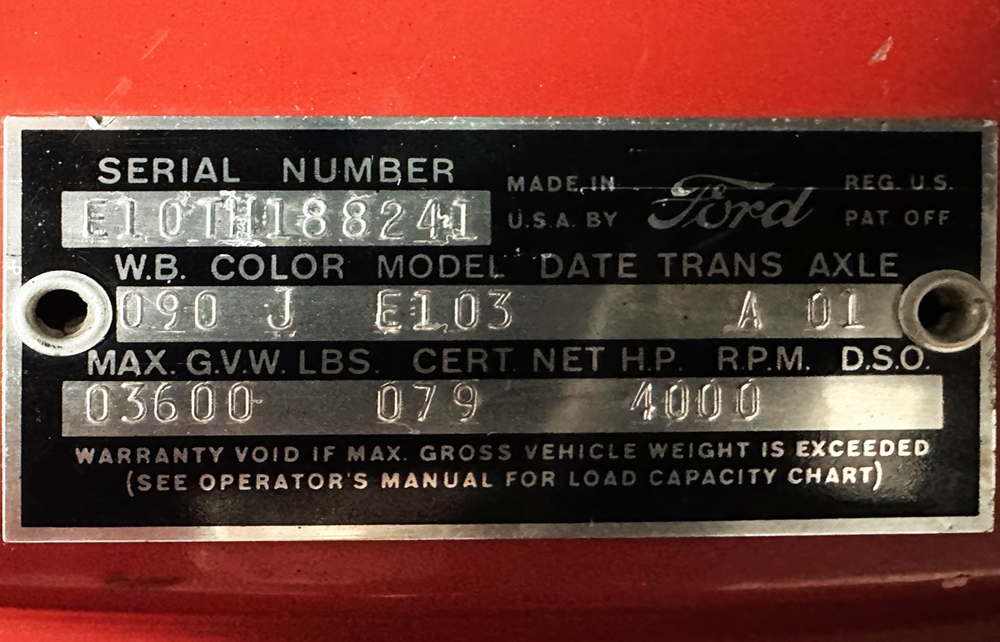

Here is the Warranty plate data from a specific Ford Econoline
| WARRANTY NUMBER | |||||||
| E10TH188241 | |||||||
| W.B. | COLOR | MODEL | BODY | TRANS | AXLE | ||
|
090 | J | E103 | A | 01 | |
|
| MAX G.V.W. LBS | CERT. NET H.P. | R.P.M. | D.S.O. | ||||
| 03600 | 079 | 4000 | |||||

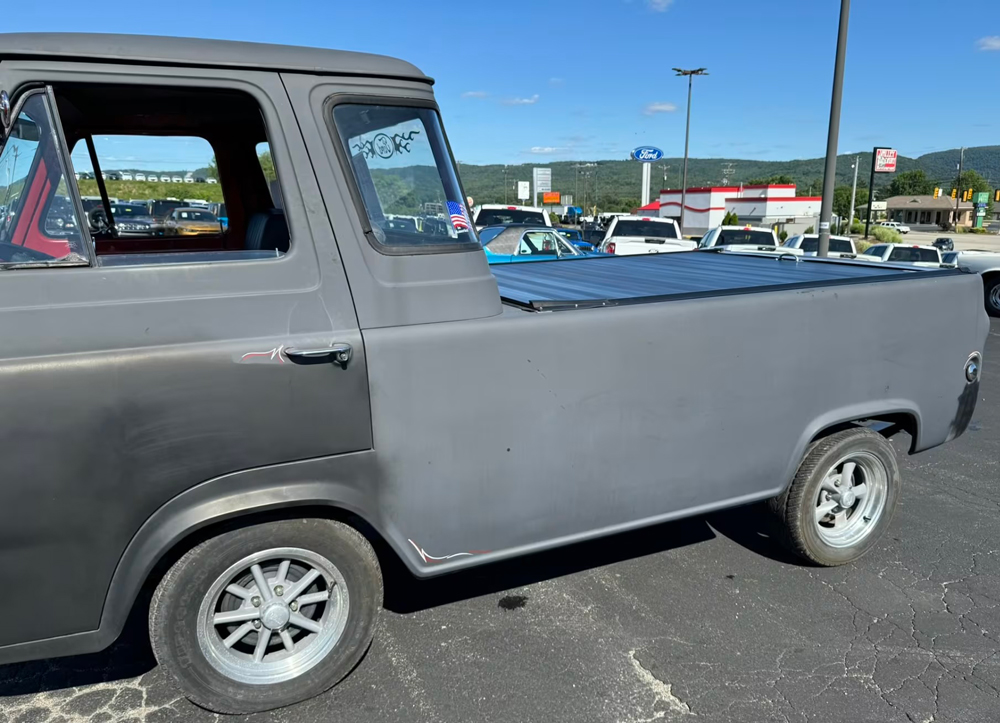

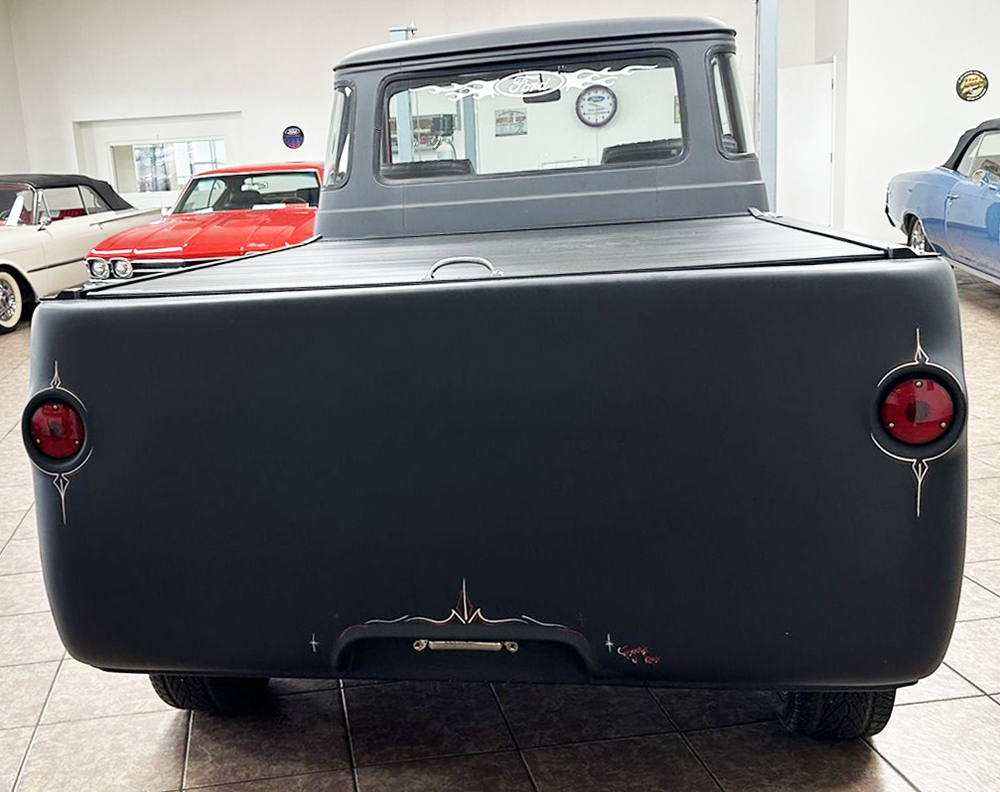

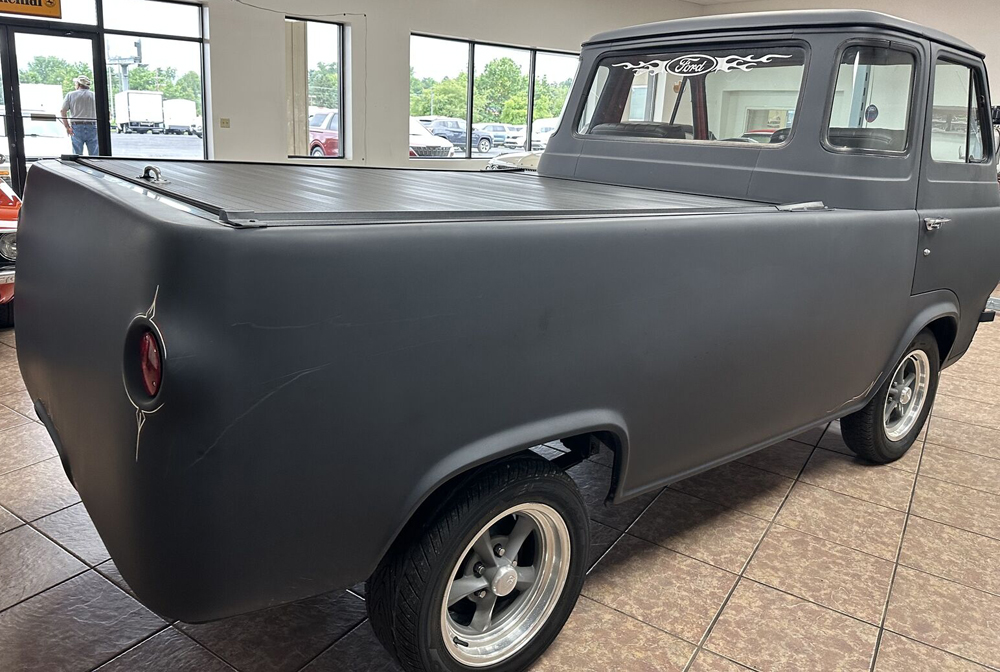

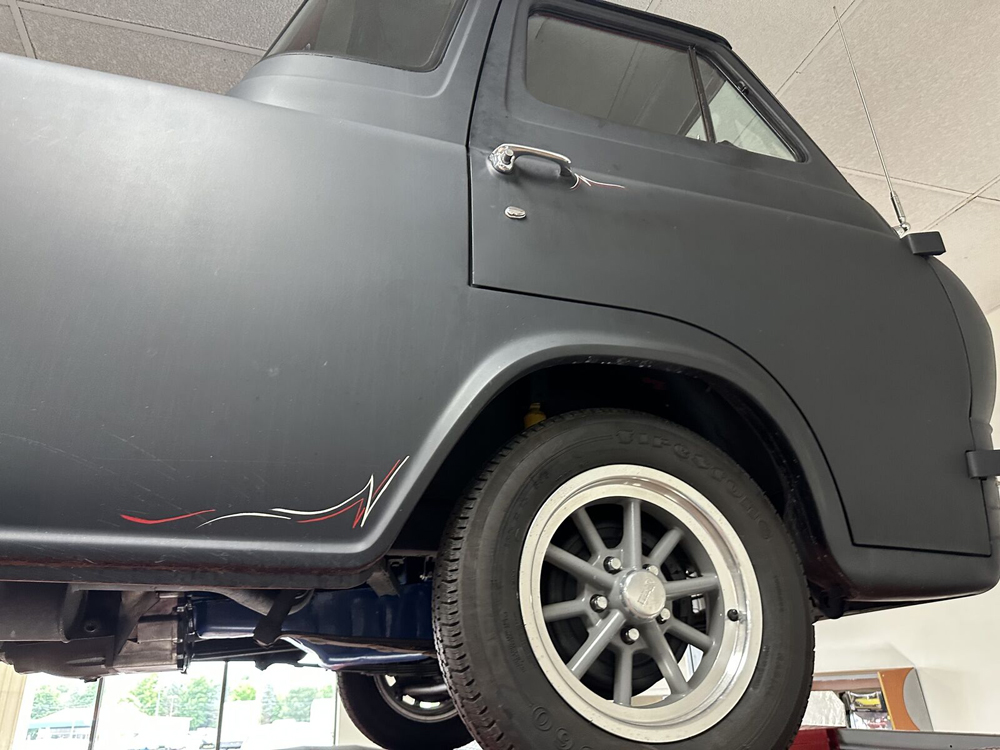

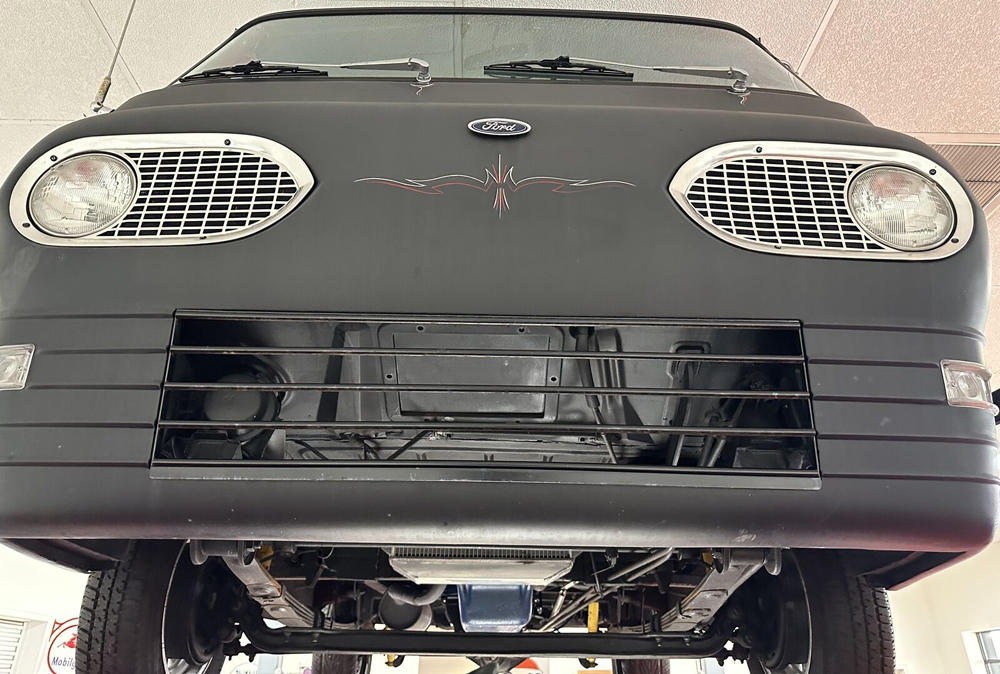

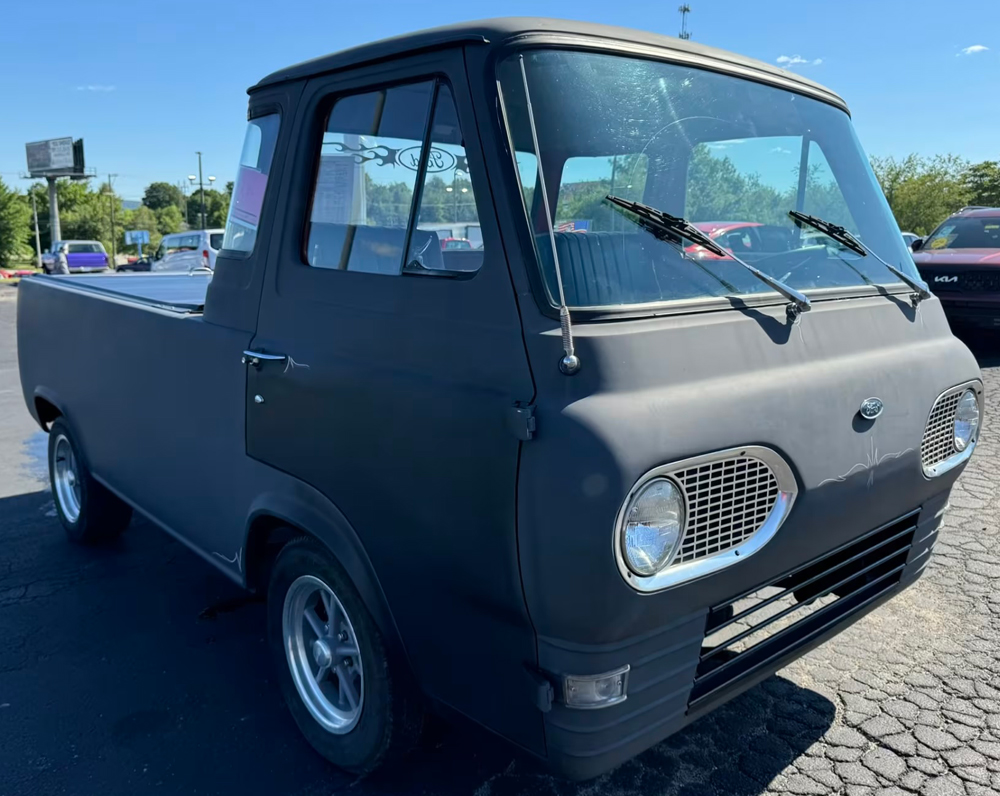

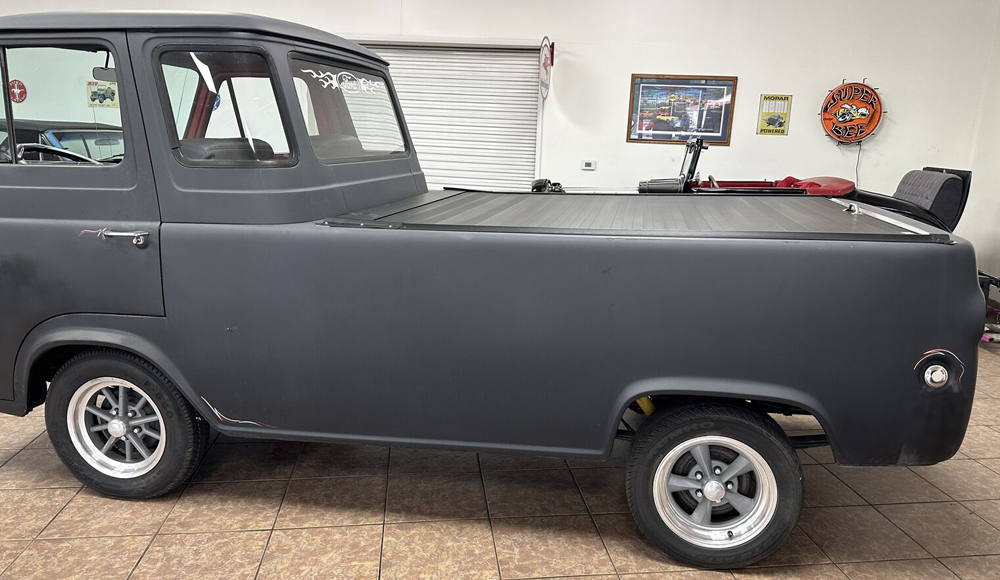

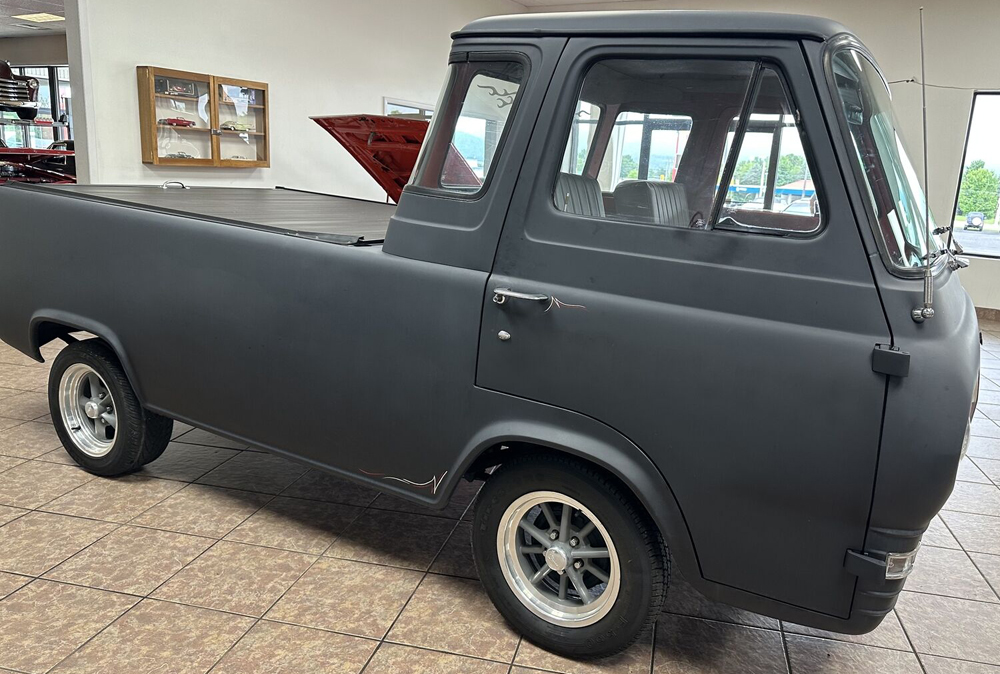

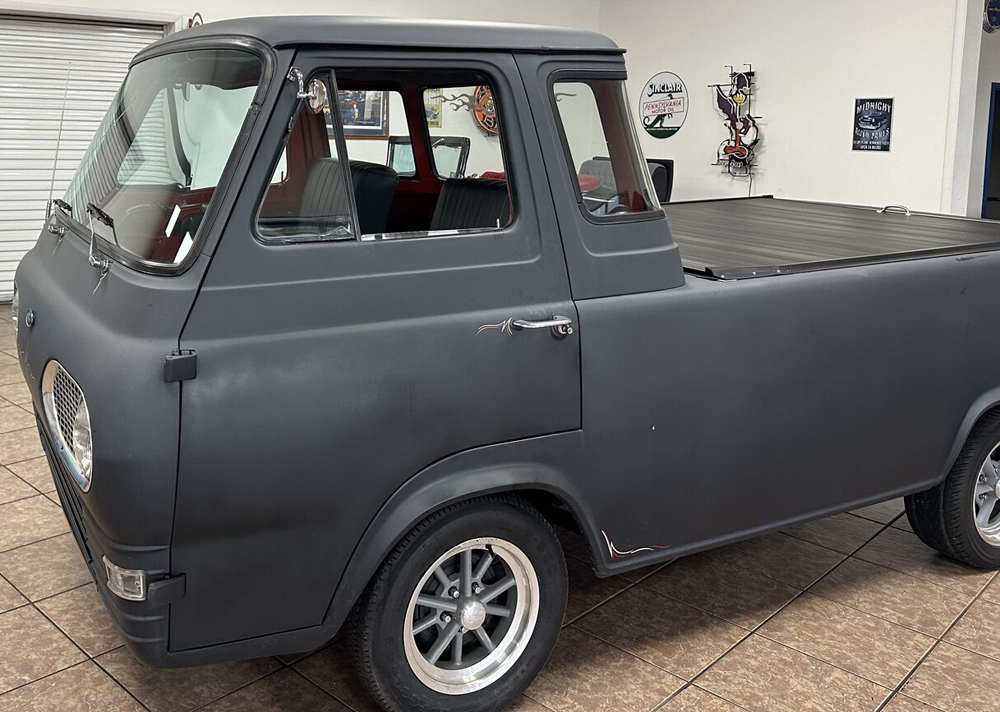

5-window pickup,
Notes:
| Year - Model Name: | 1961 E100 | |
| Warranty Number: | E10TH188241 | |
| Series Code (1st - 3rd digits): | E10 | Ford Econoline - pickup or van |

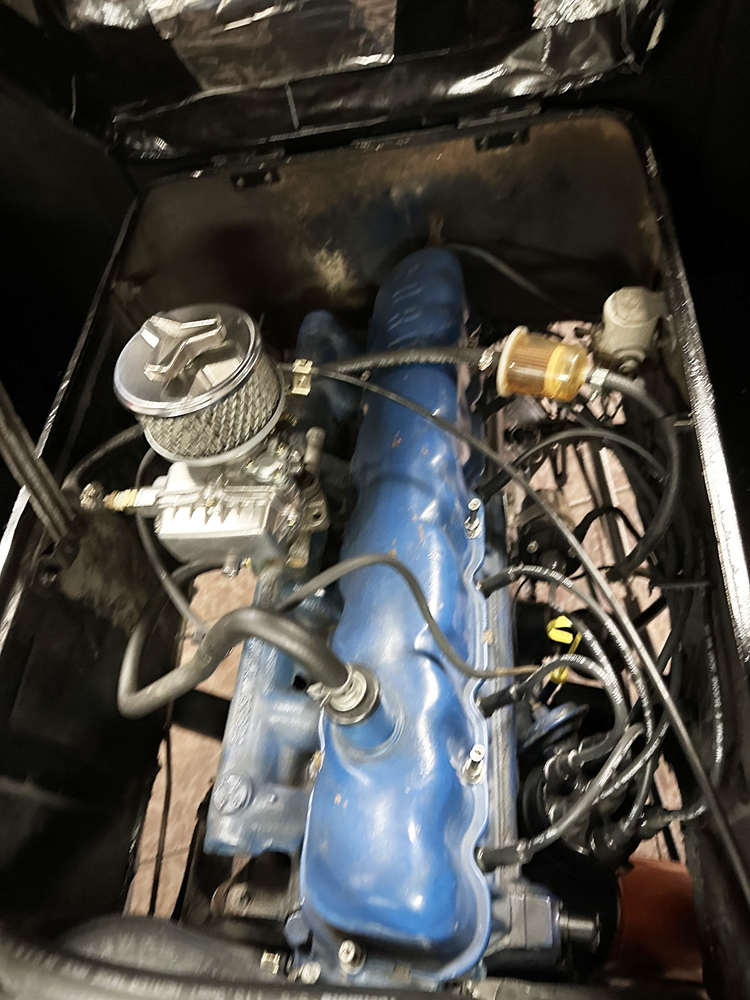

| Engine (4th digit): | T | 170 cui I6 |
| Assembly Plant (5th digit): | H | Lorain, Ohio |
| Year/month built: | June 1961 | |
| Wheelbase (front to rear axle distance): | 090 | 90" |
| Color: | J | Monte Carlo Red 1232 |
| Model: | E103 | Pickup or Van 3,600 lbs. GVW, 1/2-ton payload |
| Interior Soft Trim (first digit of Body): | not indicated in 1961 | |
| Body Style (last digits in Body): | ||

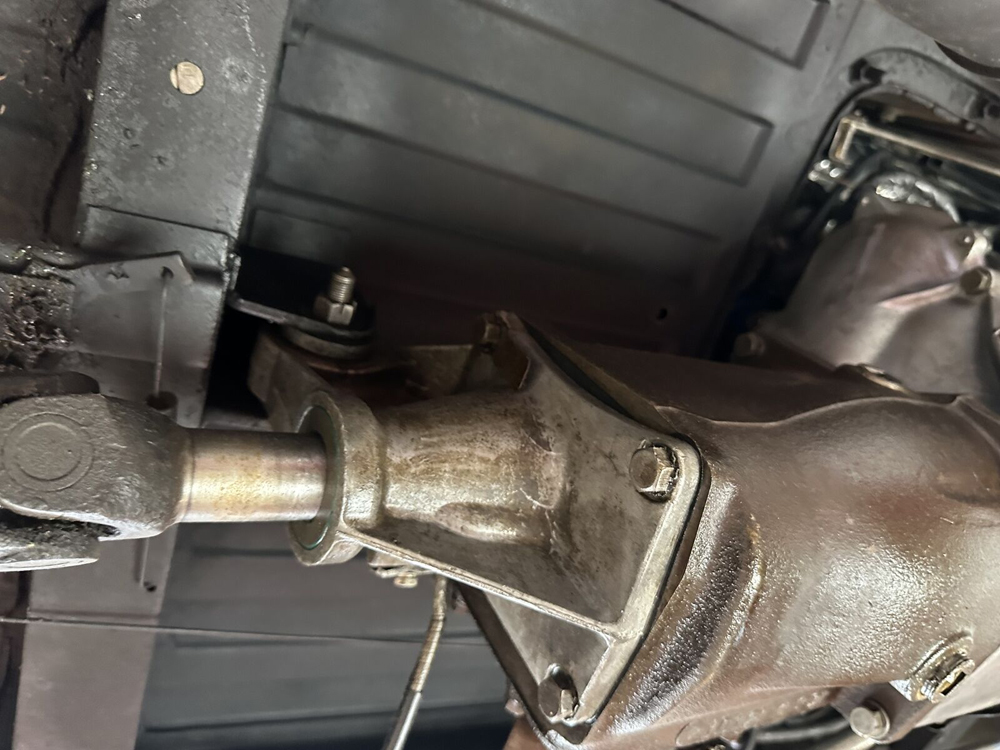

| Transmission: | A | Ford 3-speed manual (non-synchronized crashbox) Gears: 1st=3.39, 2nd=1.97, 3rd=1.00, R=4.12 |

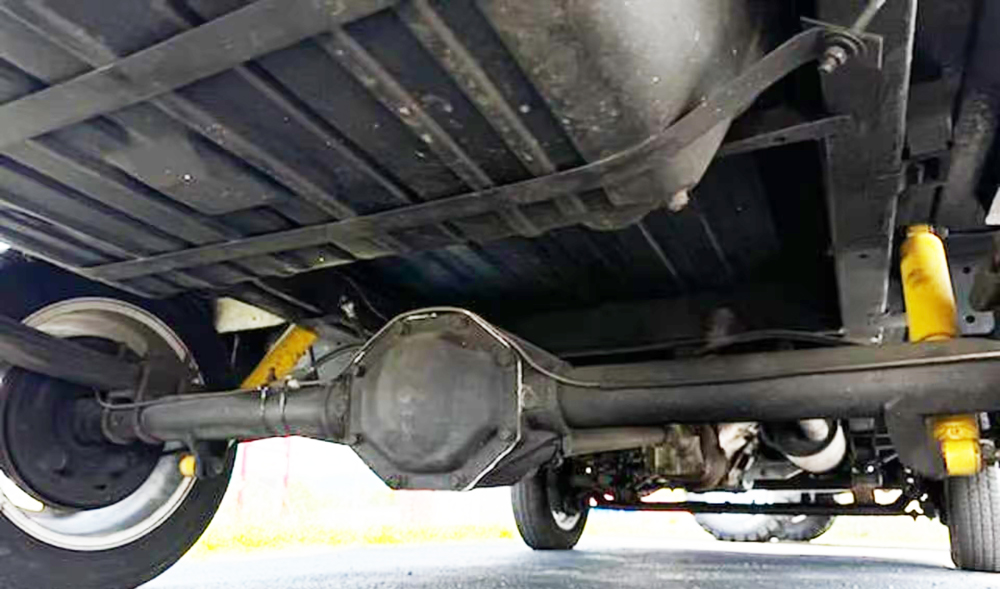

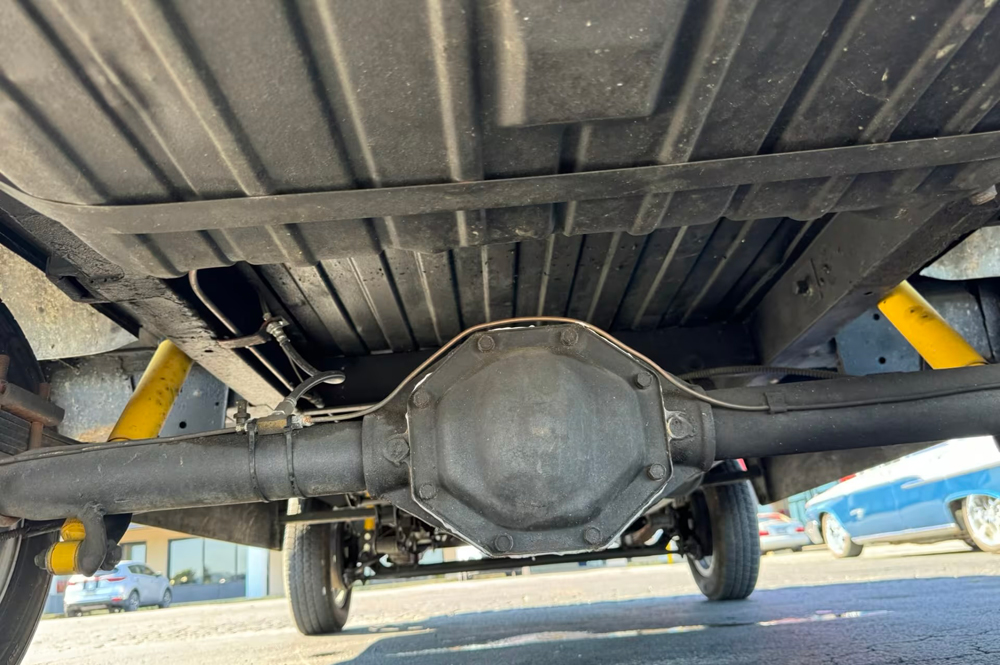

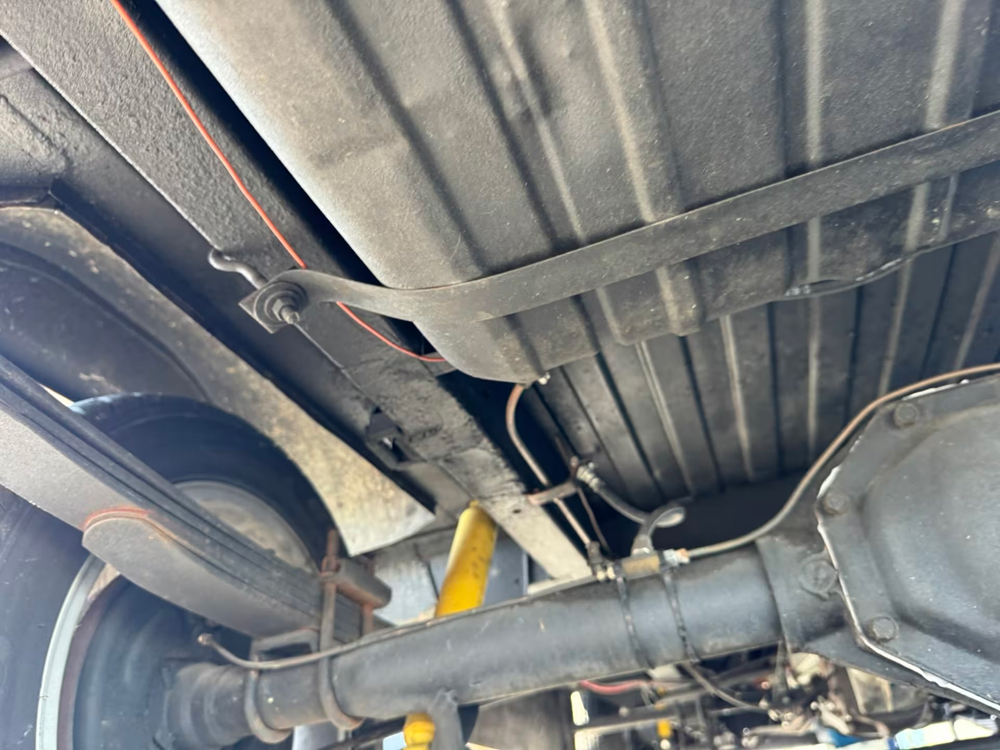

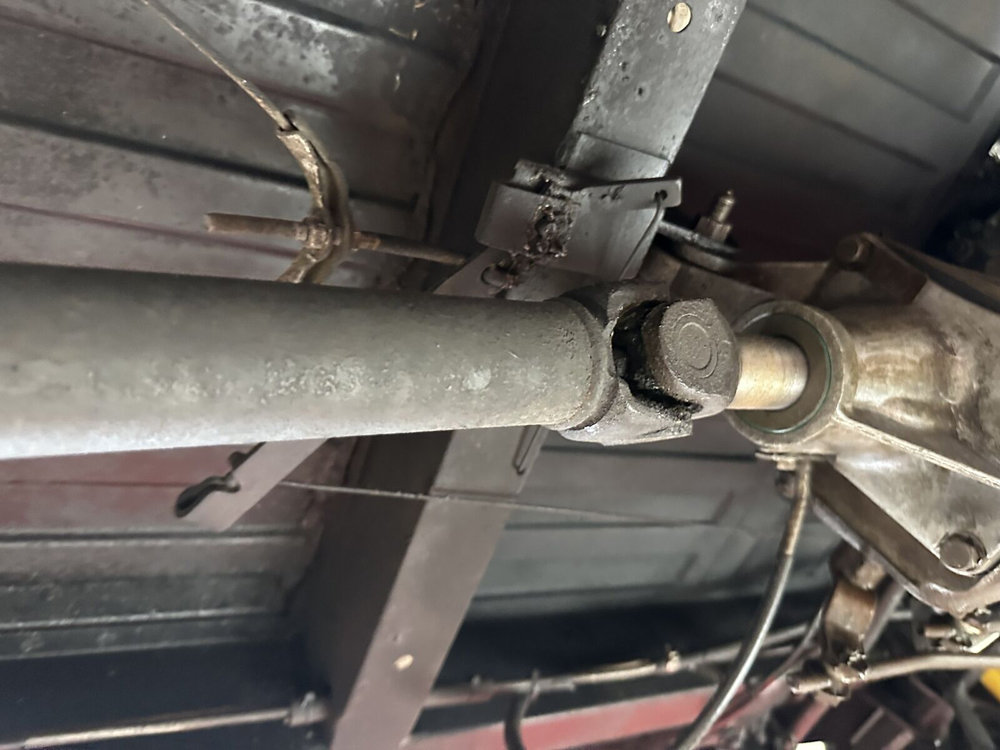

| Rear Axle: | 01 | WCC-D or WCC-M, 7-1/4" gear 3.50:1 ratio, 2300 lbs. rating |
| MAX G.V.W. LBS: | 03600 | 3,600 pounds gross vehicle weight. 1/2-ton (1,000 lbs.) payload capacity |
| CERT. NET H.P. (Horsepower) R.P.M: | 079 4000 | 79 H.P. @ 4,000 R.P.M. |
| Regional Sales District: | not indicated in 1961 to mid-1962 | |
| Special Order: | not a special order (or missing data) | |
NOTES: The following may or may not apply to this particular vehicle.
