Econoline Identification

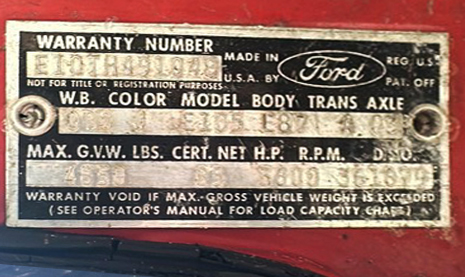

Here is the Warranty plate data from a specific Ford Econoline

WARRANTY NUMBER
E10TH491048
W.B. COLOR MODEL BODY TRANS AXLE
screw hole 090 J E105 E87 A 03 screw hole
MAX G.V.W. LBS   CERT. NET H.P.   R.P.M.   D.S.O.
4850 85 3600 361679


5-window pickup,

Notes:


Year - Model Name:1964    E100
Warranty Number:E10TH491048
Series Code (1st - 3rd digits):E10Ford Econoline - pickup
Engine (4th digit):T170 cui I6
Assembly Plant (5th digit):HLorain, Ohio
Year/month built:January 1964
Wheelbase (front to rear axle distance):09090"
Color:JRangoon Red 1515
Model:E105Pickup (H.D.)
4,850 lbs. GVW, 1-ton payload
Interior Soft Trim (first digit of Body):ECustom Equipment Package
Red crush vinyl and red check stripe woven plastic
Body Style (last digits in Body):87Pickup 87A or 87B
Transmission:AFord 3-speed manual, model 3.03 HEF
Gears: 1st=3.41, 2nd=1.86, 3rd=1.00, R=3.51
Rear Axle:03WCR-A or WCR-H, 8.75" gear (9" axle)
4.11:1 ratio, 2780 lbs. rating
MAX G.V.W. LBS:48504,850 pounds - gross vehicle weight.
1-ton (2,000 lbs.) payload capacity
CERT. NET H.P. (Horsepower)
R.P.M:
85
3600
85 H.P. @ 3,600 R.P.M.
Regional Sales District:36Louisville
Special Order:1679This vehicle was special ordered.
If the paint code is blank, it might have been a special paint color.

NOTES: The following may or may not apply to this particular vehicle.
