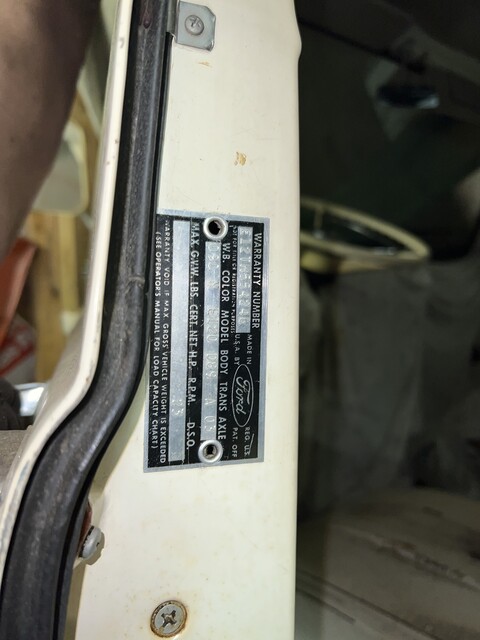

Here is the Warranty plate data from a specific Ford Econoline
| WARRANTY NUMBER | |||||||
| E12TH554246 | |||||||
| W.B. | COLOR | MODEL | BODY | TRANS | AXLE | ||
|
090 | M | E120 | D89 | A | 03 | |
| MAX G.V.W. LBS | CERT. NET H.P. | R.P.M. | D.S.O. | ||||
| 23 | |||||||
window van,
Notes: Calthorpe Travelwagon. Since no special order number, probably installed at the dealership.
| Year - Model Name: | 1964 E100 | |
| Warranty Number: | E12TH554246 | |
| Series Code (1st - 3rd digits): | E12 | Ford Econoline - Falcon Club Wagon |
| Engine (4th digit): | T | 170 cui I6 |
| Assembly Plant (5th digit): | H | Lorain, Ohio |
| Year/month built: | June 1964 | |
| Wheelbase (front to rear axle distance): | 090 | 90" |
| Color: | M | Wimbledon White 1619 |
| Model: | E120 | Falcon Club Wagon (Falcon Custom Club Wagon), 1/2-ton payload |
| Interior Soft Trim (first digit of Body): | D | Custom Equipment Package Light beige crush vinyl and medium beige check stripe woven plastic |
| Body Style (last digits in Body): | 89 | Van |
| Transmission: | A | Ford 3-speed manual, model 3.03 HEF Gears: 1st=3.41, 2nd=1.86, 3rd=1.00, R=3.51 |
| Rear Axle: | 03 | WCR-A or WCR-H, 8.75" gear (9" axle) 4.11:1 ratio, 2780 lbs. rating |
| MAX G.V.W. LBS: | missing data (not included on Falcon models) | |
| CERT. NET H.P. (Horsepower) R.P.M: | missing data (not included on Falcon models) | |
| Regional Sales District: | 23 | Philadelphia |
| Special Order: | not a special order (or missing data) | |
NOTES: The following may or may not apply to this particular vehicle.
