Econoline Identification

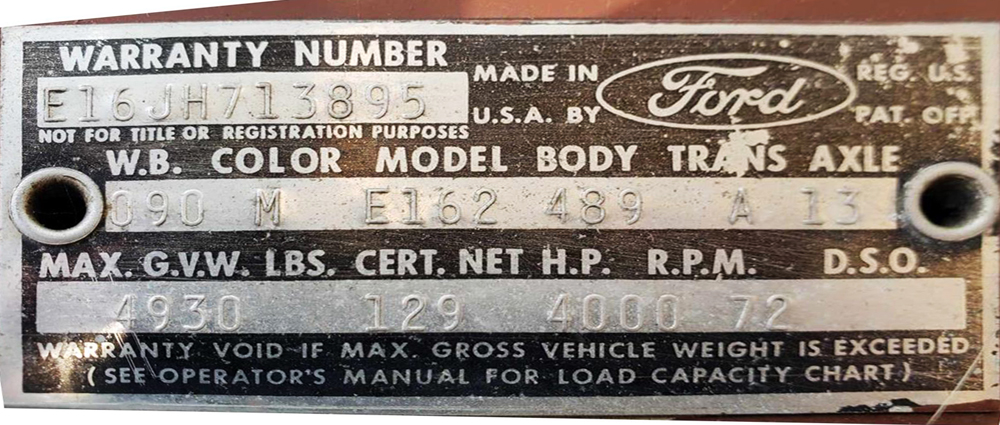

Here is the Warranty plate data from a specific Ford Econoline

Notes:

Year - Model Name:		1965 E100
Warranty Number:		E16JH713895
Series Code (1st - 3rd digits):	E16	Ford Econoline - SuperVan (extended)

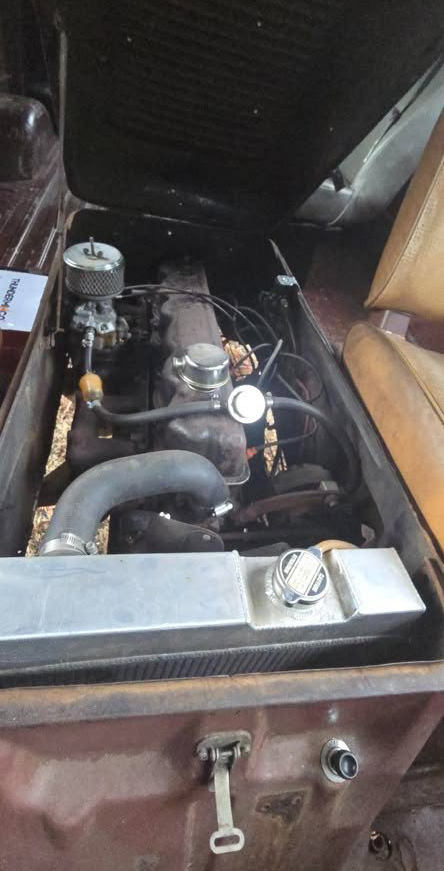

Engine (4th digit):	J	240 cui I6
Assembly Plant (5th digit):	H	Lorain, Ohio
Year/month built:		July 1965
Wheelbase (front to rear axle distance):	090	90"
Color:	M	Wimbledon White 1619
Model:	E162	Van, Extended (Heavy Duty) (exc. state of Pa.) 4,930 lbs. GVW, 1-ton payload
Interior Soft Trim (first digit of Body):	4	Light beige crush vinyl and light beige stitch pattern vinyl
Body Style (last digits in Body):	89	Van
Transmission:	A	Ford 3-speed manual, model 3.03 HEF Gears: 1st=2.99, 2nd=1.75, 3rd=1.00, R=3.17
Rear Axle:	13	WCR-?, 8-3/4" gear (9" axle) 3.00:1 ratio, 3050 lbs. rating
MAX G.V.W. LBS:	4930	4,930 pounds - gross vehicle weight. 1-ton (2,000 lbs.) payload capacity
CERT. NET H.P. (Horsepower) R.P.M:	129 4000	129 H.P. @ 4,000 R.P.M.
Regional Sales District:	72	San Jose
Special Order:		not a special order (or missing data)

NOTES: The following may or may not apply to this particular vehicle.

Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-January 1961, Ford started installing a ballast (weight) above the gas tank. The GVW is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity

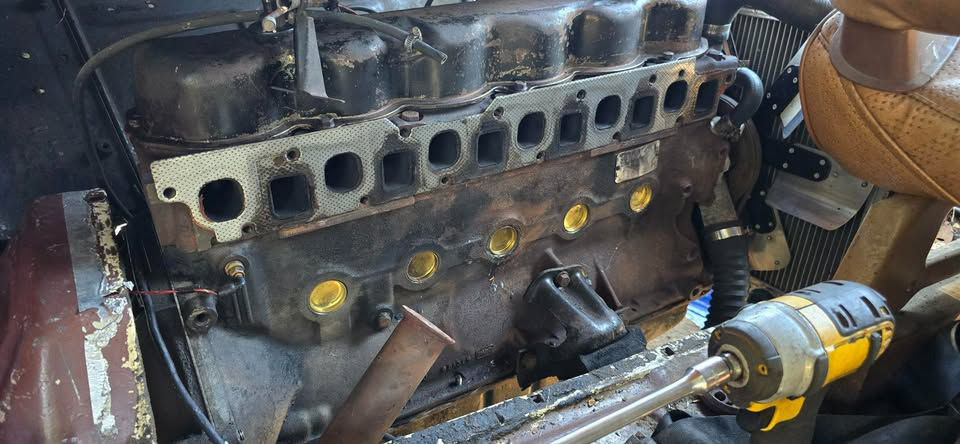

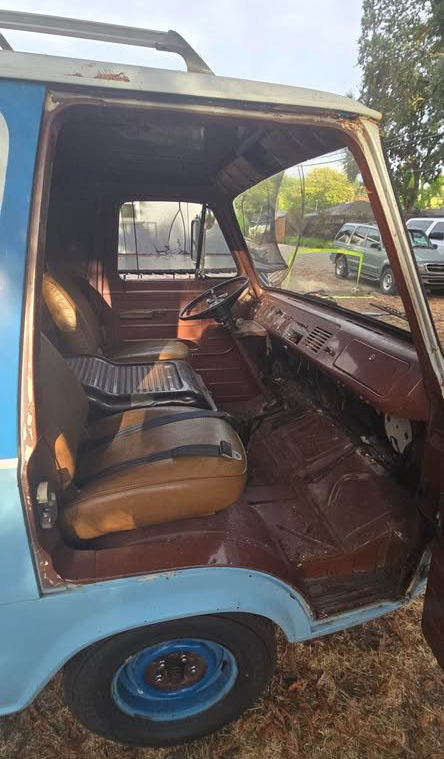

Photos
