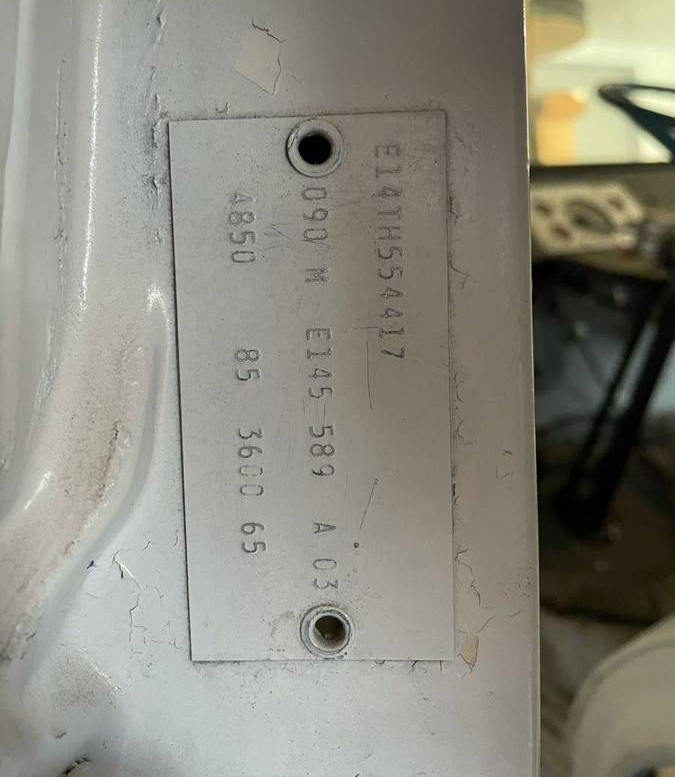

Here is the Warranty plate data from a specific Ford Econoline
| WARRANTY NUMBER | |||||||
| E14TH554417 | |||||||
| W.B. | COLOR | MODEL | BODY | TRANS | AXLE | ||
|
090 | M | E145 | 589 | A | 03 | |
| MAX G.V.W. LBS | CERT. NET H.P. | R.P.M. | D.S.O. | ||||
| 4850 | 85 | 3600 | 65 | ||||

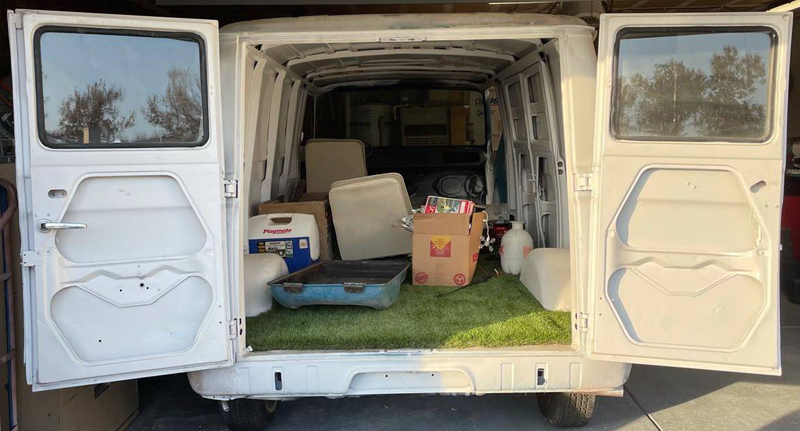

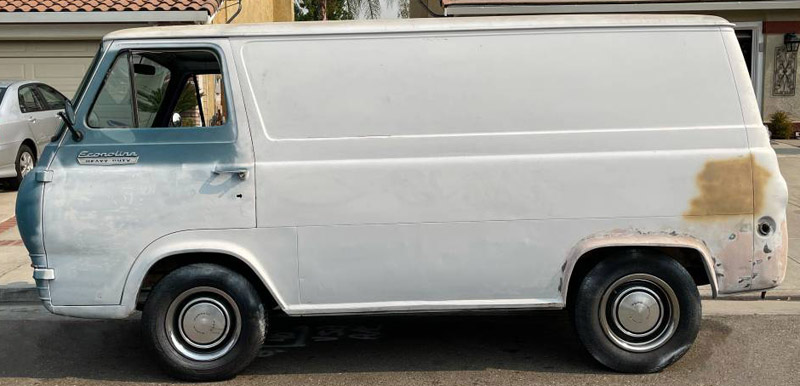

Notes: no windows on sides, cargo doors on right side
| Year - Model Name: | 1964 E100 | |
| Warranty Number: | E14TH554417 | |
| Series Code (1st - 3rd digits): | E14 | Ford Econoline - Van |

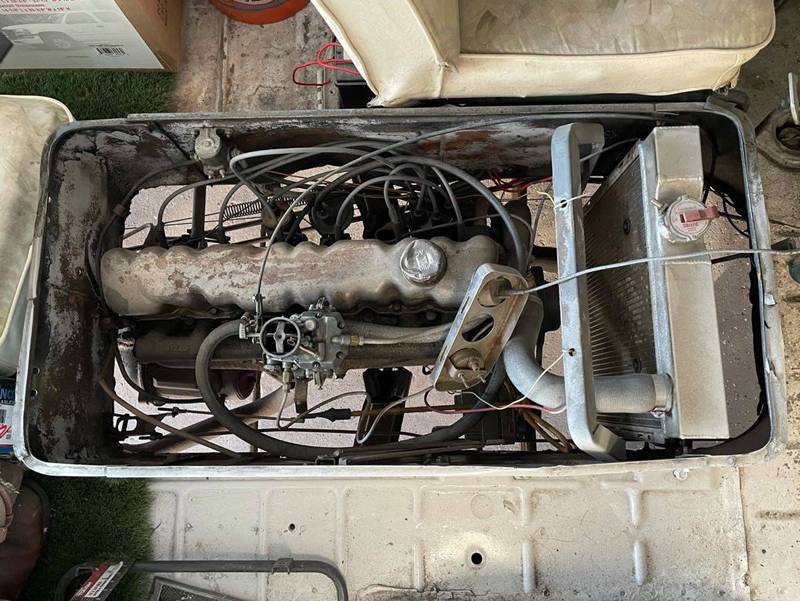

| Engine (4th digit): | T | 170 cui I6 |
| Assembly Plant (5th digit): | H | Lorain, Ohio |
| Year/month built: | June 1964 | |
| Wheelbase (front to rear axle distance): | 090 | 90" |
| Color: | M | Wimbledon White 1619 |

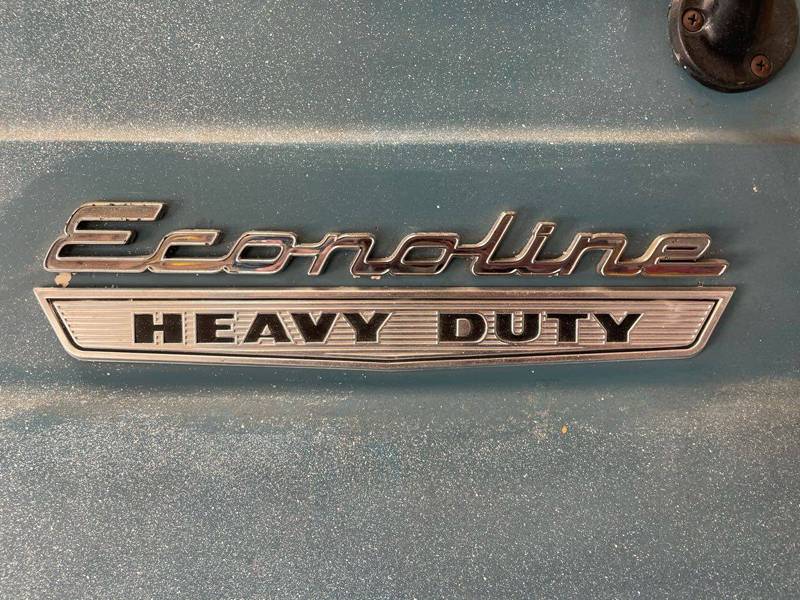

| Model: | E145 | Van (regular length) (Heavy Duty) 4,850 lbs. GVW, 1-ton payload |

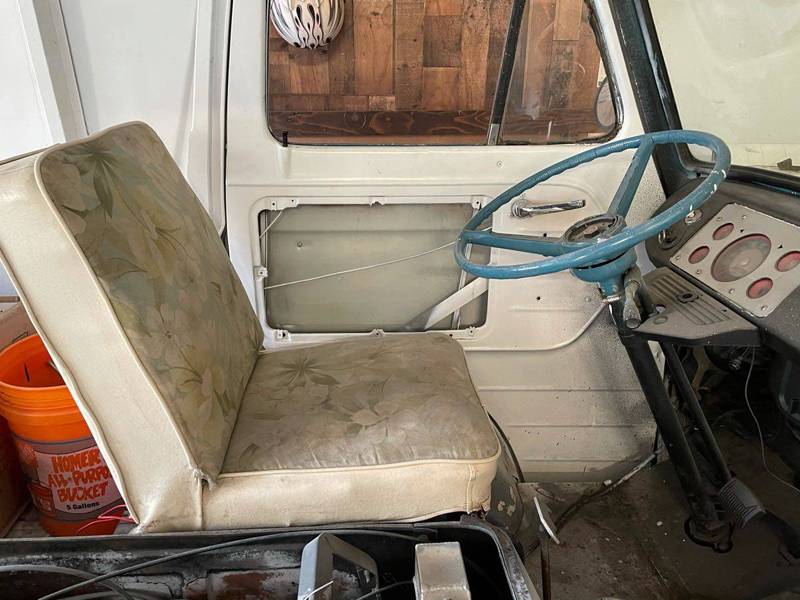

| Interior Soft Trim (first digit of Body): | 5 | Red crush vinyl and red stitch pattern vinyl |
| Body Style (last digits in Body): | 89 | Van |
| Transmission: | A | Ford 3-speed manual, model 3.03 HEF Gears: 1st=3.41, 2nd=1.86, 3rd=1.00, R=3.51 |
| Rear Axle: | 03 | WCR-A or WCR-H, 8.75" gear (9" axle) 4.11:1 ratio, 2780 lbs. rating |
| MAX G.V.W. LBS: | 4850 | 4,850 pounds - gross vehicle weight. 1-ton (2,000 lbs.) payload capacity |
| CERT. NET H.P. (Horsepower) R.P.M: | 85 3600 | 85 H.P. @ 3,600 R.P.M. |
| Regional Sales District: | 65 | Oklahoma City |
| Special Order: | not a special order (or missing data) | |
NOTES: The following may or may not apply to this particular vehicle.
