Canadian Econoline Identification

The Canadian-built Econolines had a different data plate from those built in the USA. Right now we have only data from 1965. We have made some assumptions about the 1961 to 1964 Econolines.

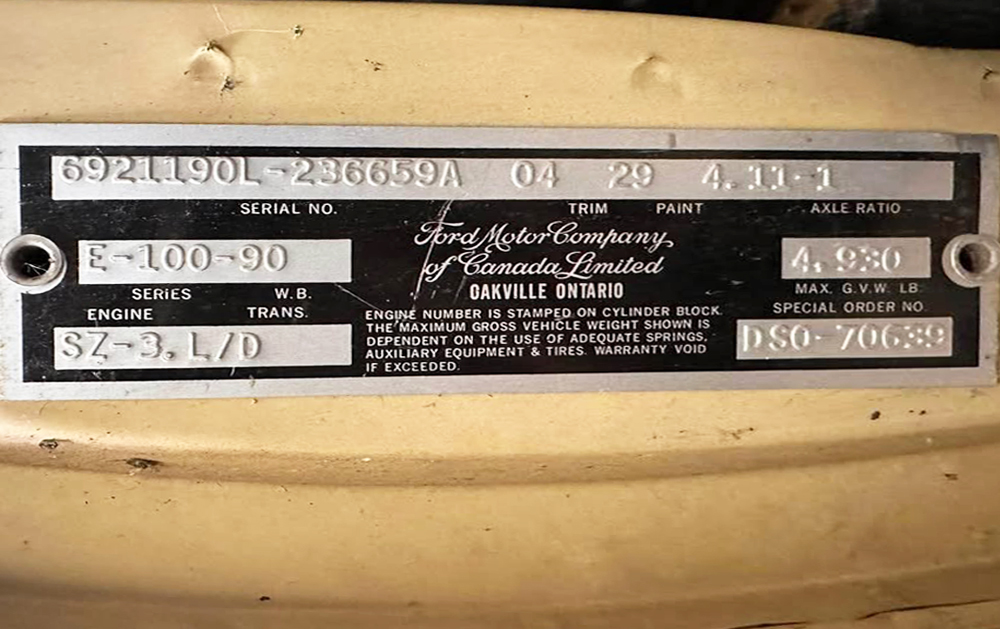

Here is the Warranty plate data from a specific Canadian Ford Econoline


6921190L--236659A			04	29	4.11-1
SERIAL NO.			TRIM	PAINT	AXLE RATIO
E100	90				4930
SERIES	W.B.				MAX G.V.W. LB.
ENGINE	TRANS				SPECIAL ORDER NO.
SZ-3.	--	L/D			DSO70639

Notes:

Model Year - Model Name		1965 E100
Assembly Plant		Oakville, Ontario
Warranty Number		6921190L--236659A
Make (1st digit):	6	Ford
Body Type (2nd & 3rd digits):	92	Van 89A, 89E, 89F, 89G
Series Code (4th & 5th digits):	11	E100 Econoline
Wheelbase (W.B.) (6th & 7th digits):	90	90" wheelbase
Drive (8th digit):	L	Left-hand drive
Numerical Sequence of Assembly:	236659	Assembled in April 1965
Gross Weight Range:	A	0 to 6,000 pounds
Interior Trim	04	beige standard trim
Paint (1st letter is bottom color, 2nd letter is top color)	29	tutone color Canadian Military Green
Axle Ratio	4.11-1	4.11:1
Make	E	Econoline
Series	E100	Econoline
Wheelbase (W.B.)	90	90" wheelbase
Maximum Gross Vehicle Weight (MAX. G.V.W. LB.)	4930	4930 pounds
Engine	SZ-3.	Unknown
Year Engine Assembled	SZ-3.	Unknown
Transmission	L/D	Unknown
Special Order Number	DSO70639

NOTES: The following may or may not apply to this particular vehicle.

Right now we have only data from 1965. We have made some assumptions about 1961 to 1964 Econolines.
In 1965, all Econolines had a Ford dataplate.
The Canadian model year was based on the calendar year, rather than the USA model year that begins in August. Thus features for a USA model year might be available in a different Canadian year.
Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-1961 Ford started installing a ballast above the gas tank. The GVWR is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity
