Canadian Econoline Identification

The Canadian-built Econolines had a different data plate from those built in the USA. Right now we have only data from 1965. We have made some assumptions about the 1961 to 1964 Econolines.

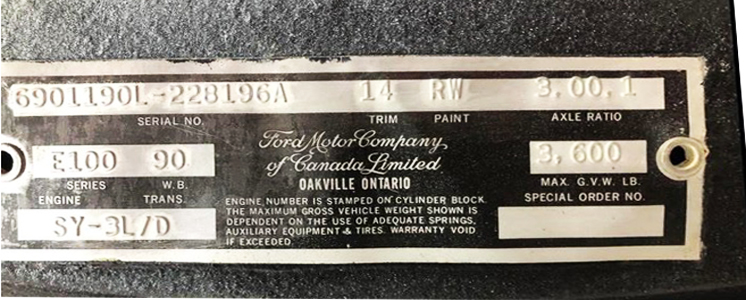

Here is the Warranty plate data from a specific Canadian Ford Econoline


6901190L--228196A     14 RW 3.00.1
SERIAL NO. TRIM PAINT AXLE RATIO
screw hole E100 90 3600 screw hole
SERIES W.B. MAX G.V.W. LB.
ENGINE TRANS SPECIAL ORDER NO.
SY -- 3L/D


5-window pickup,

Notes: Pickup 240 cu in


Model Year - Model Name1965    E100
Assembly PlantOakville, Ontario
Warranty Number6901190L--228196A
Make (1st digit): 6Ford
Body Type (2nd & 3rd digits): 90Pickup 87A or 87B
Series Code (4th & 5th digits): 11E100 Econoline
Wheelbase (W.B.) (6th & 7th digits): 9090" wheelbase
Drive (8th digit): LLeft-hand drive
Numerical Sequence of Assembly:228196Assembled in February 1965
Gross Weight Range:A0 to 6,000 pounds
Trim14unknown
Paint (1st letter is bottom color, 2nd letter is top color)RWtutone color
Wimbledon White 1619 &
Rangoon Red (Red) 1515
Axle Ratio3.00.13.00:1
MakeEEconoline
SeriesE100Econoline
Wheelbase (W.B.)9090" wheelbase
Maximum Gross Vehicle Weight (MAX. G.V.W. LB.)36003600 pounds
EngineSYgasoline, 6 cyl, 144 c.u.i.
Year Engine AssembledSYassembled in 1965
Transmission3L/D3 speed, light-duty
Special Order Number

NOTES: The following may or may not apply to this particular vehicle.
