Econoline Identification

Here is the Warranty plate data from a specific Ford Econoline

WARRANTY NUMBER
E10AHB86215
W.B. COLOR MODEL BODY TRANS AXLE
screw hole 090 U E101 387 C screw hole
MAX G.V.W. LBS   CERT. NET H.P.   R.P.M.   D.S.O.


5-window pickup,

Notes: Heavy Duty


Year - Model Name:1967    E100
Warranty Number:E10AHB86215
Series Code (1st - 3rd digits):E10Ford Econoline - pickup
Engine (4th digit):A240 cui I6
Assembly Plant (5th digit):HLorain, Ohio
Year/month built:November 11-30, 1967
Wheelbase (front to rear axle distance):09090"
Color:ULunar Green (Medium Green) 2097
Model:E101Pickup
4,350 lbs. GVW, 3/4-ton payload
Interior Soft Trim (first digit of Body):3Medium green crush vinyl and medium green match stick pattern vinyl
Body Style (last digits in Body):87Pickup 87A or 87B
Transmission:CFord 3-speed manual, model 3.03 RAN
Gears: 1st=2.99, 2nd=1.75, 3rd=1.00, R=3.17
Rear Axle:missing data OR special-order axle
MAX G.V.W. LBS:missing data (not included on Falcon models)
CERT. NET H.P. (Horsepower)
R.P.M:

missing data (not included on Falcon models)
Regional Sales District:missing data
Special Order:not a special order (or missing data)

NOTES: The following may or may not apply to this particular vehicle.

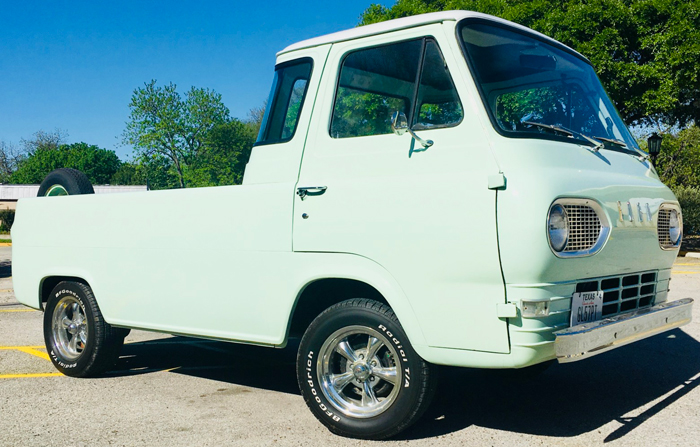

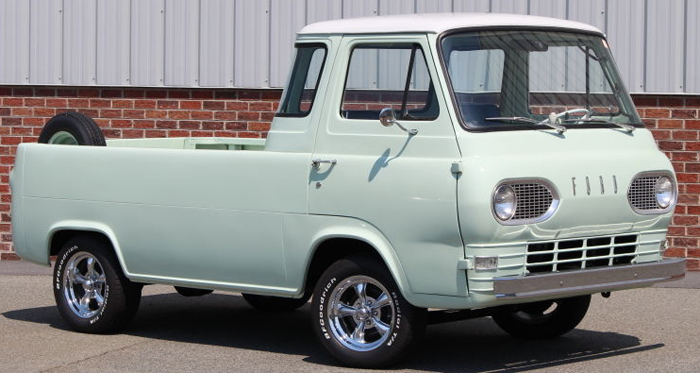

Photos


2015

2015

2015

2015

2015

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020

2020
