Econoline Identification

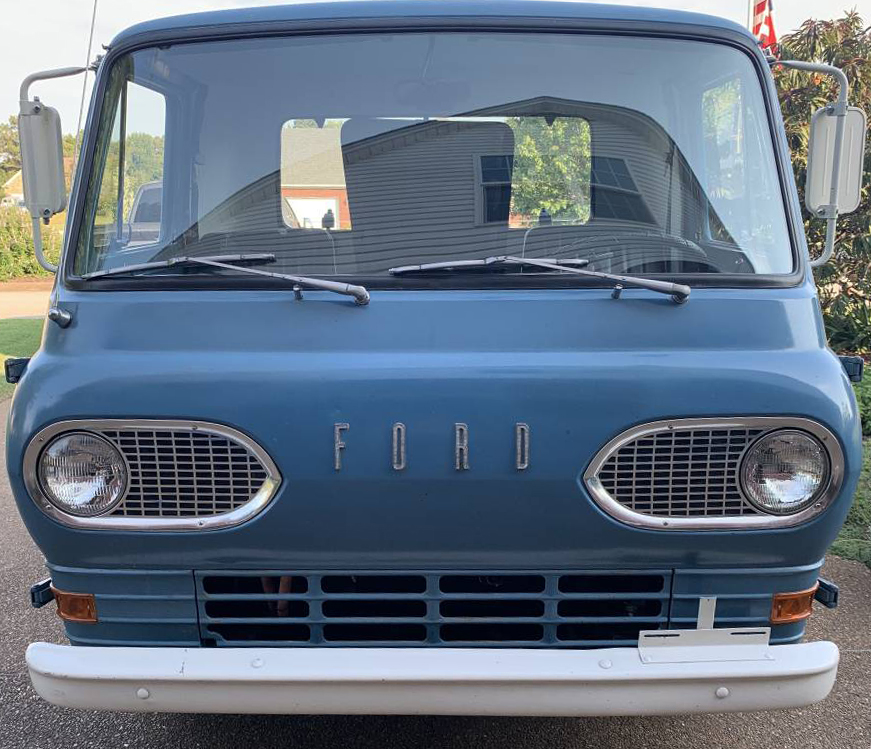

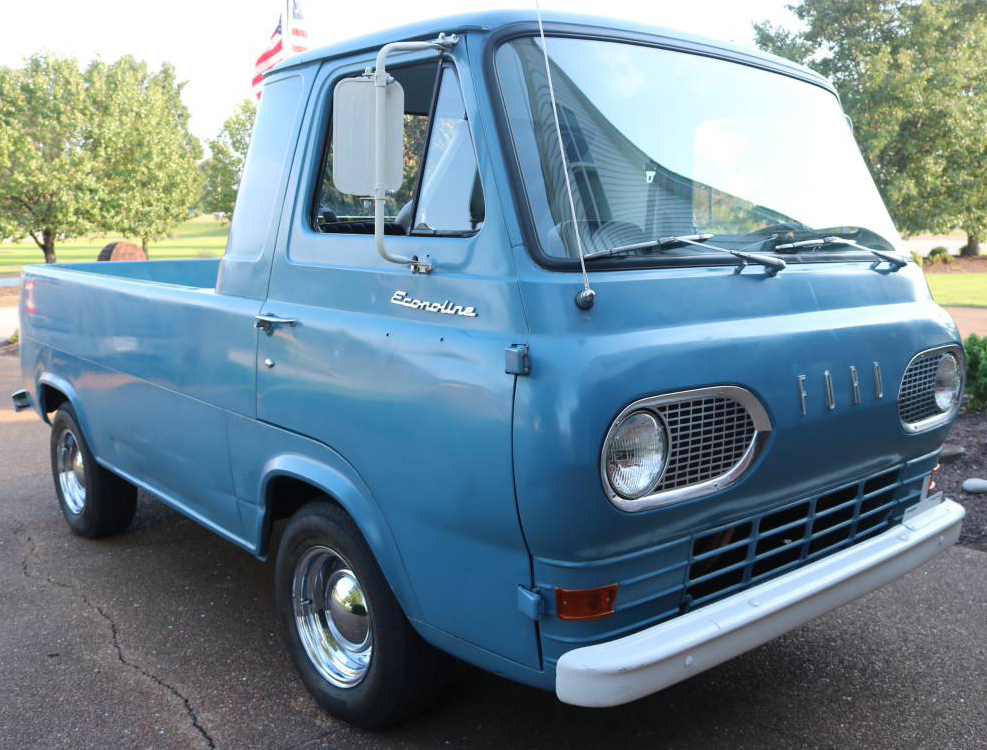

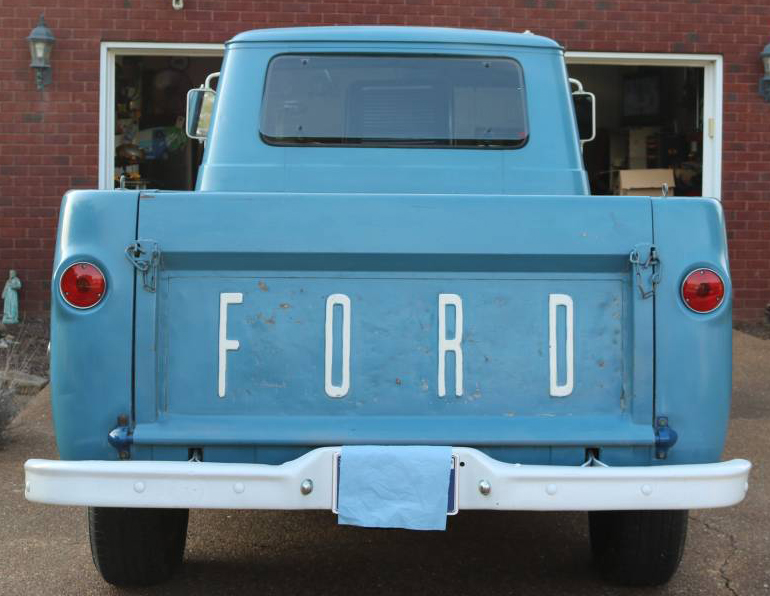

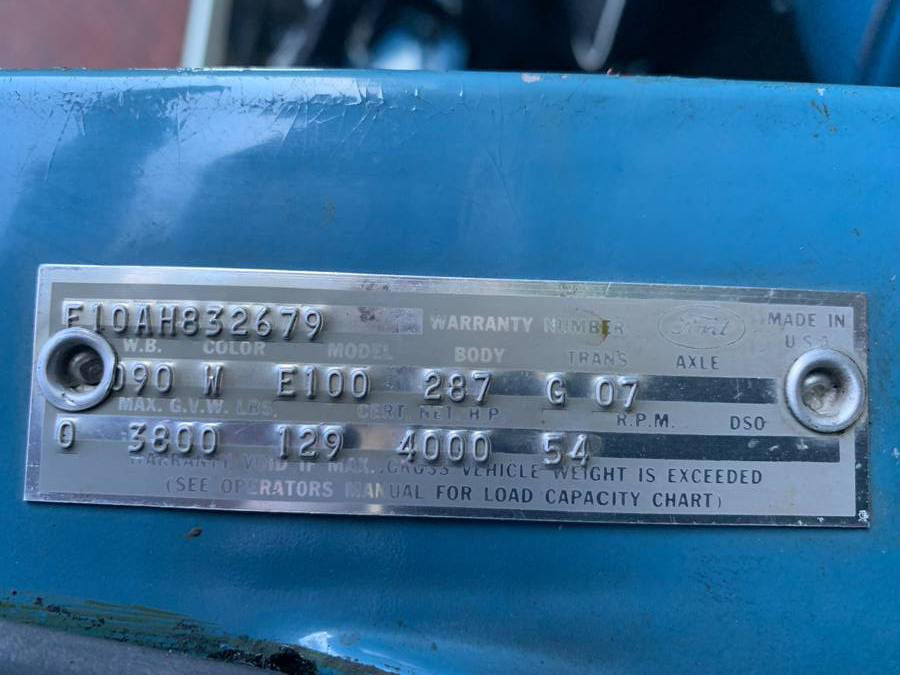

Here is the Warranty plate data from a specific Ford Econoline

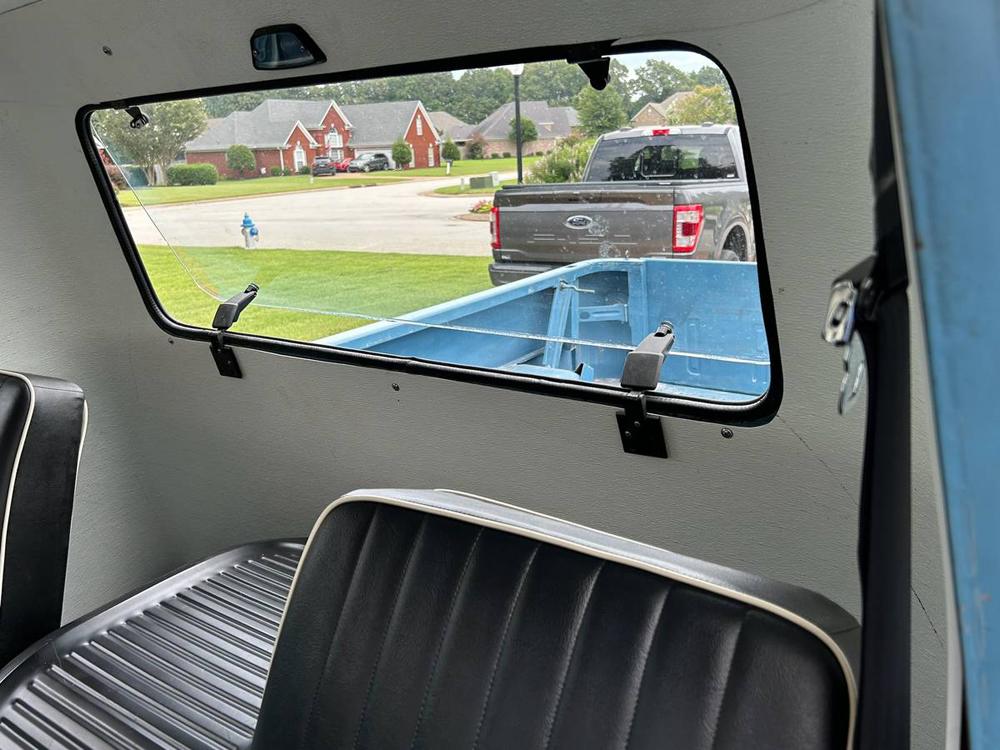

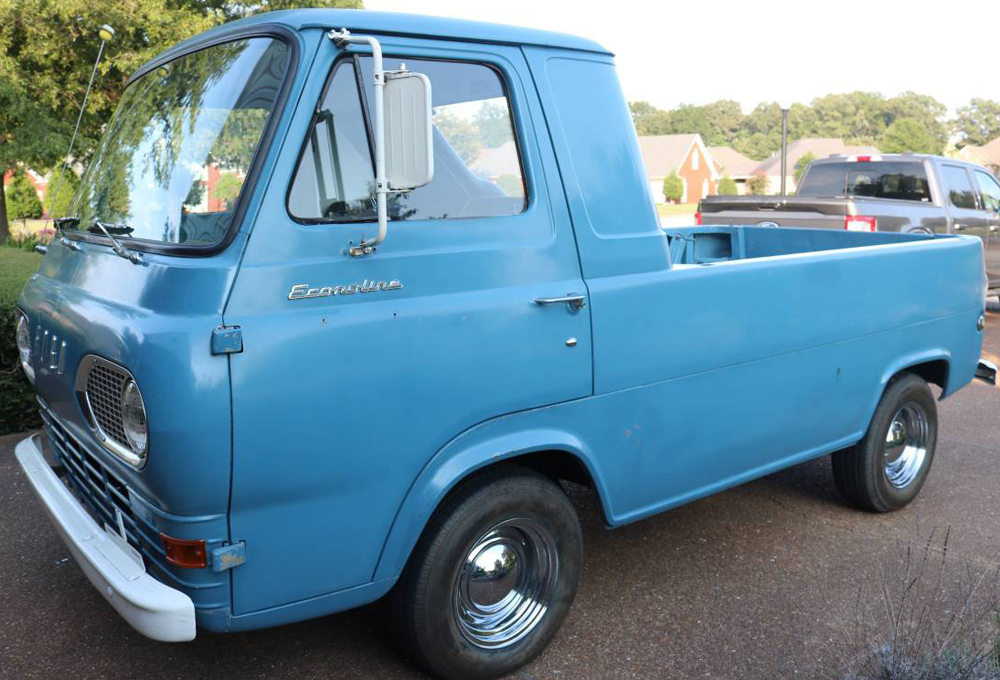

3-window pickup,

Notes:

Year - Model Name:		1966 E100
Warranty Number:		E10AH832679
Series Code (1st - 3rd digits):	E10	Ford Econoline pickup

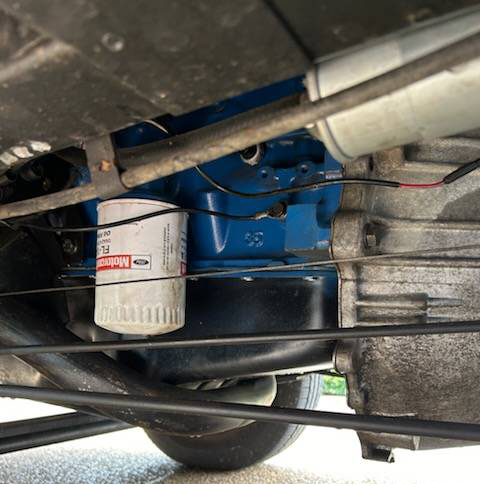

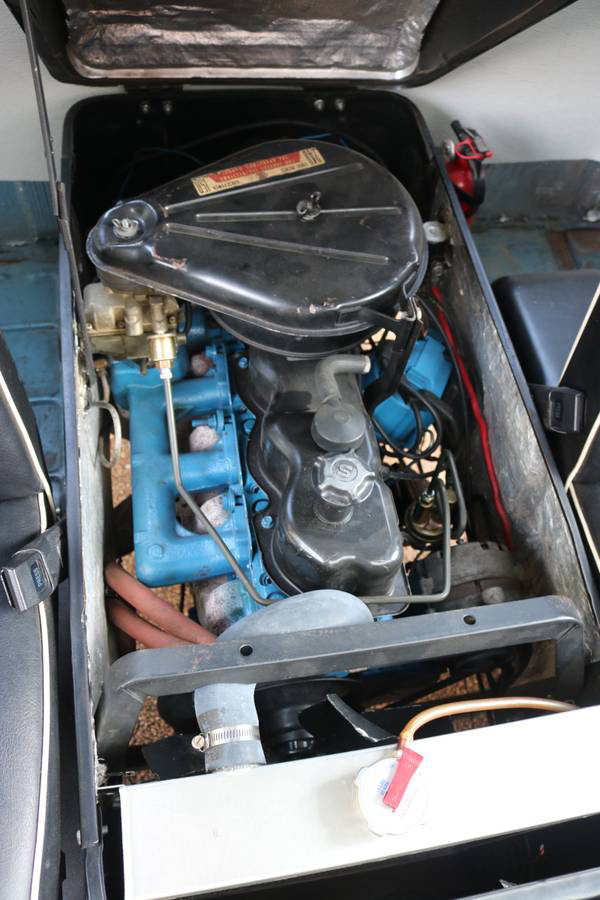

Engine (4th digit):	A	240 cui I6
Assembly Plant (5th digit):	H	Lorain, Ohio
Year/month built:		March 1966
Wheelbase (front to rear axle distance):	090	90"
Color:	W	Marlin Blue (Medium Blue) 1742
Model:	E100	Pickup 3,800 lbs. GVW, 1/2-ton payload

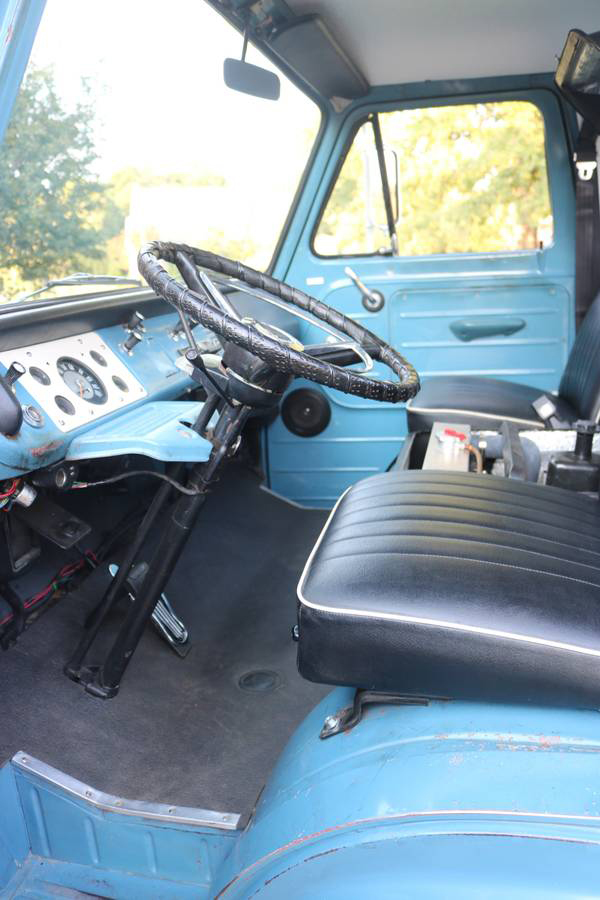

Interior Soft Trim (first digit of Body):	2	Medium blue crush vinyl and medium blue match stick pattern vinyl
Body Style (last digits in Body):	87	Pickup 87A or 87B
Transmission:	G	Ford C4 3-speed automatic Gears 1st=2.46, 2nd=1.46, 3rd=1.00, R=2.20

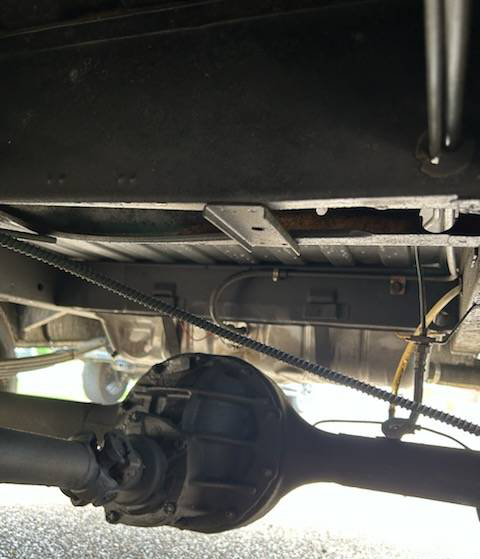

Rear Axle:	07	WCR-S, 8.75" gear, 3.00:1 ratio, 3050 lbs. rating
Spring Special?:		No
Gross Vehicle Weight (lbs):	03800	3,800 pounds gross vehicle weight, 1/2-ton payload
Engine Horsepower:	129	129 H.P.
Engine Speed at Rated Horsepower:	4000	4,000 R.P.M.
Regional Sales District:	54	Omaha
Special Order:		not a special order (or missing data)

NOTES: The following may or may not apply to this particular vehicle.

Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-January 1961, Ford started installing a ballast (weight) above the gas tank. The GVW is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity
