Econoline Identification

Here is the Warranty plate data from a specific Ford Econoline

window van,

Notes:

Year - Model Name:		1964 E100
Warranty Number:		E11TH480561
Series Code (1st - 3rd digits):	E11	Ford Econoline - Falcon Station Bus

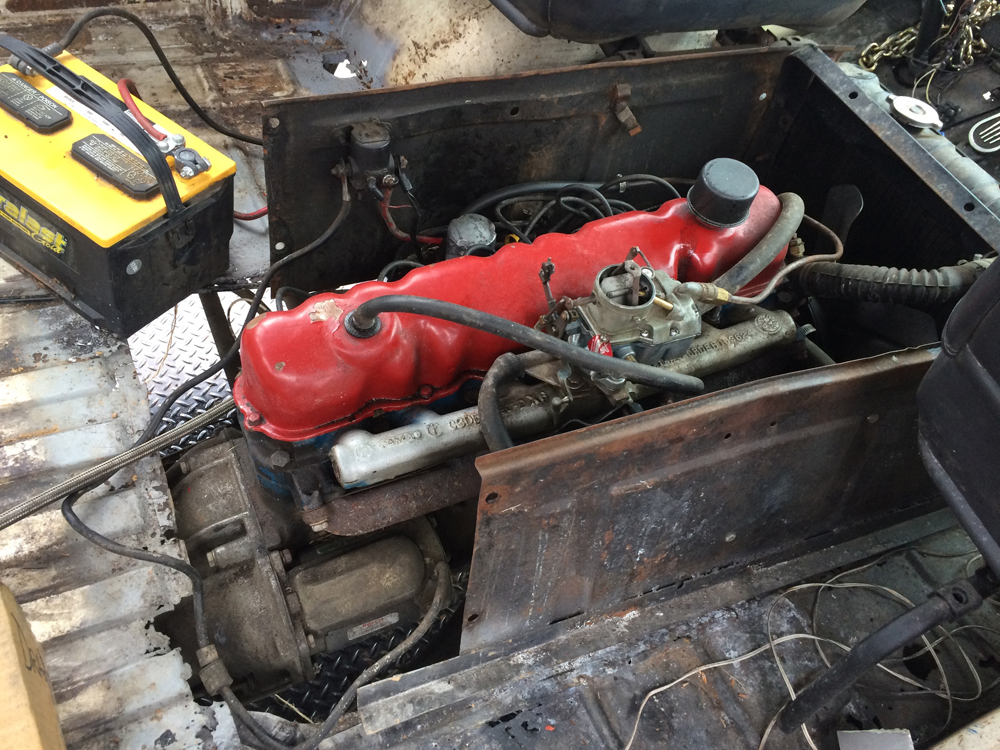

Engine (4th digit):	T	170 cui I6
Assembly Plant (5th digit):	H	Lorain, Ohio
Year/month built:		December 1963
Wheelbase (front to rear axle distance):	090	90"
Color:	M	Wimbledon White 1619
Model:	E110	Falcon Station Bus (standard, 1/2-ton payload)
Interior Soft Trim (first digit of Body):	5	Red crush vinyl and red stitch pattern vinyl
Body Style (last digits in Body):	89	Van
Transmission:	F	Dagenham 4-speed manual. Gears: 1st=3.163, 2nd=2.214, 3rd=1.412, 4th=1.000, R=3.346
Rear Axle:	02	WCC-E or WCC-N, 7-1/4" gear 4.00:1 ratio, 2300 lbs. rating
MAX G.V.W. LBS:		missing data (not included on Falcon models)
CERT. NET H.P. (Horsepower) R.P.M:		missing data (not included on Falcon models)
Regional Sales District:	23	Philadelphia
Special Order:		not a special order (or missing data)

NOTES: The following may or may not apply to this particular vehicle.

Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-January 1961, Ford started installing a ballast (weight) above the gas tank. The GVW is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity

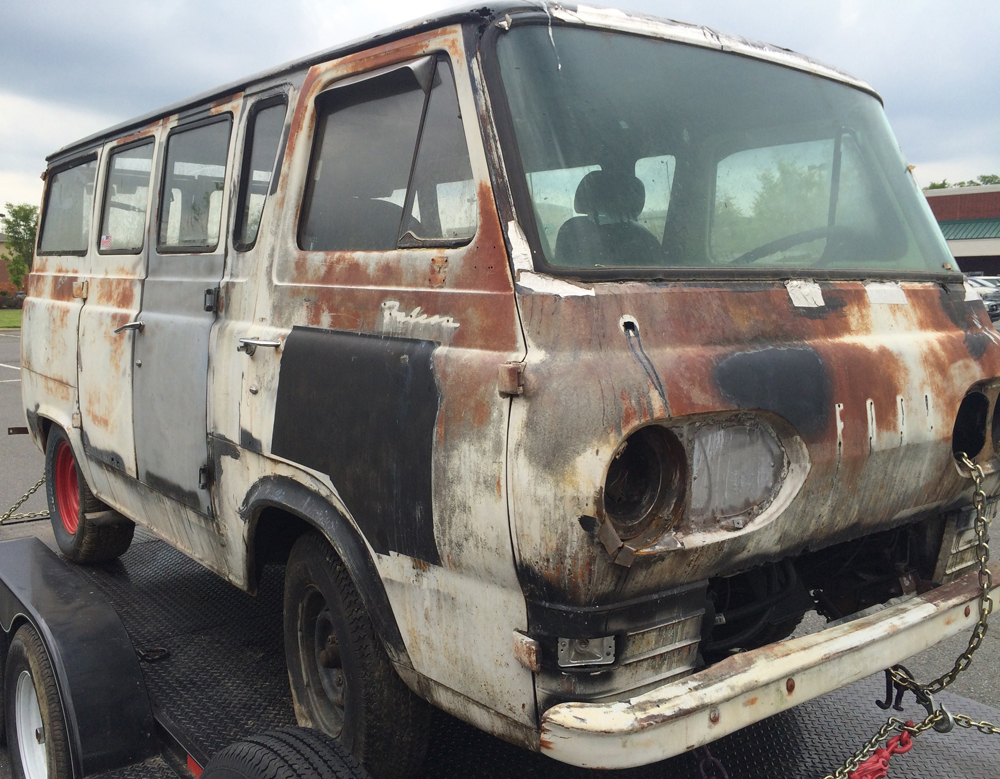

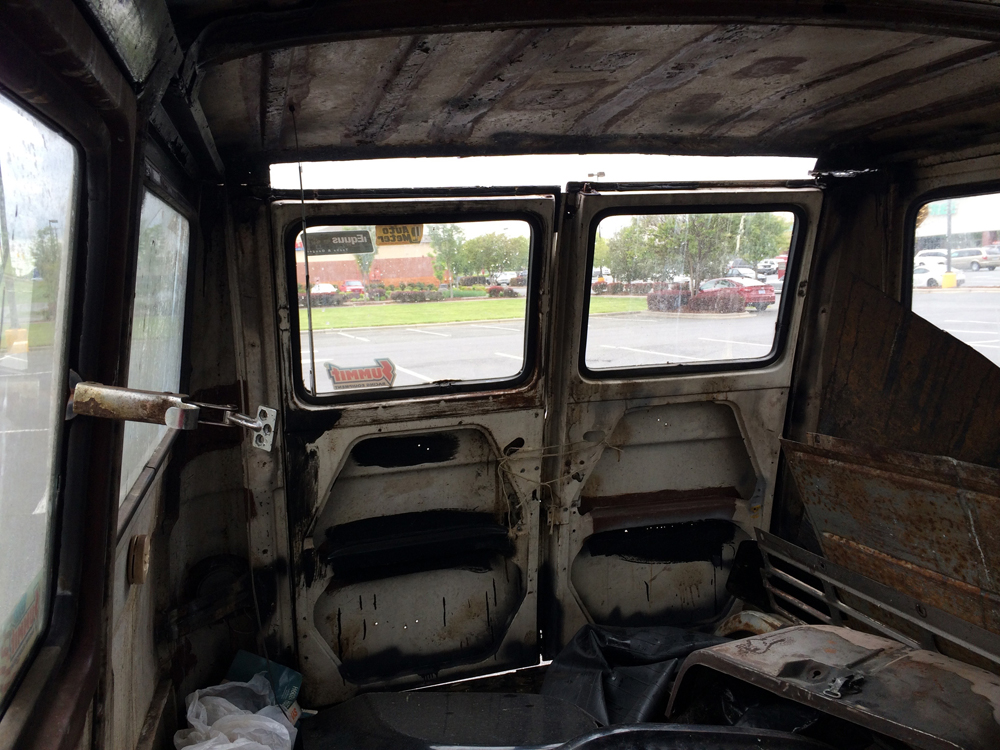

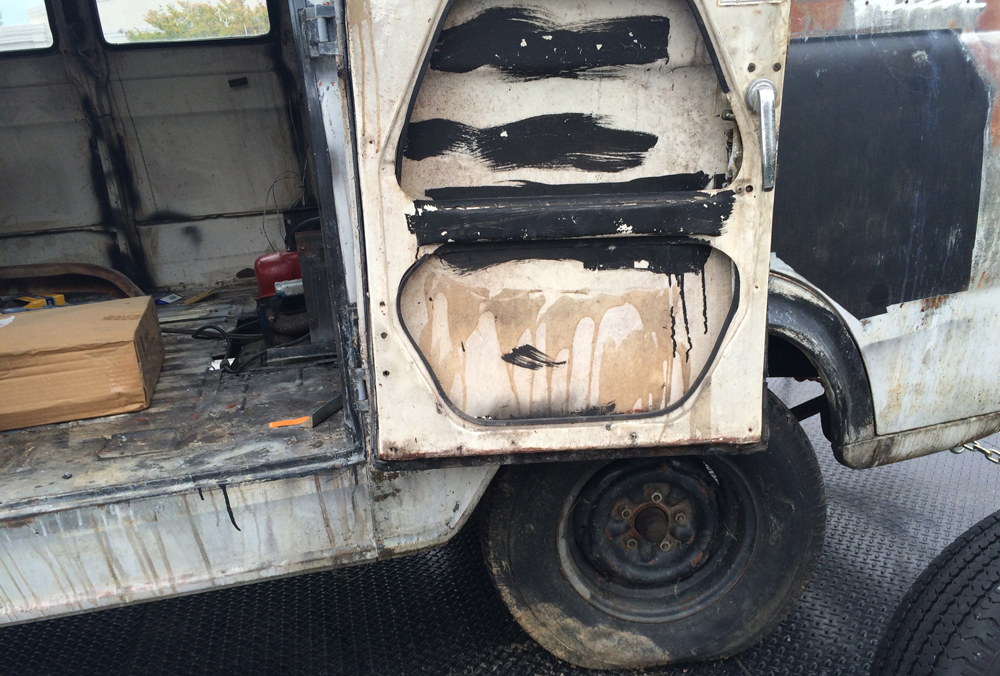

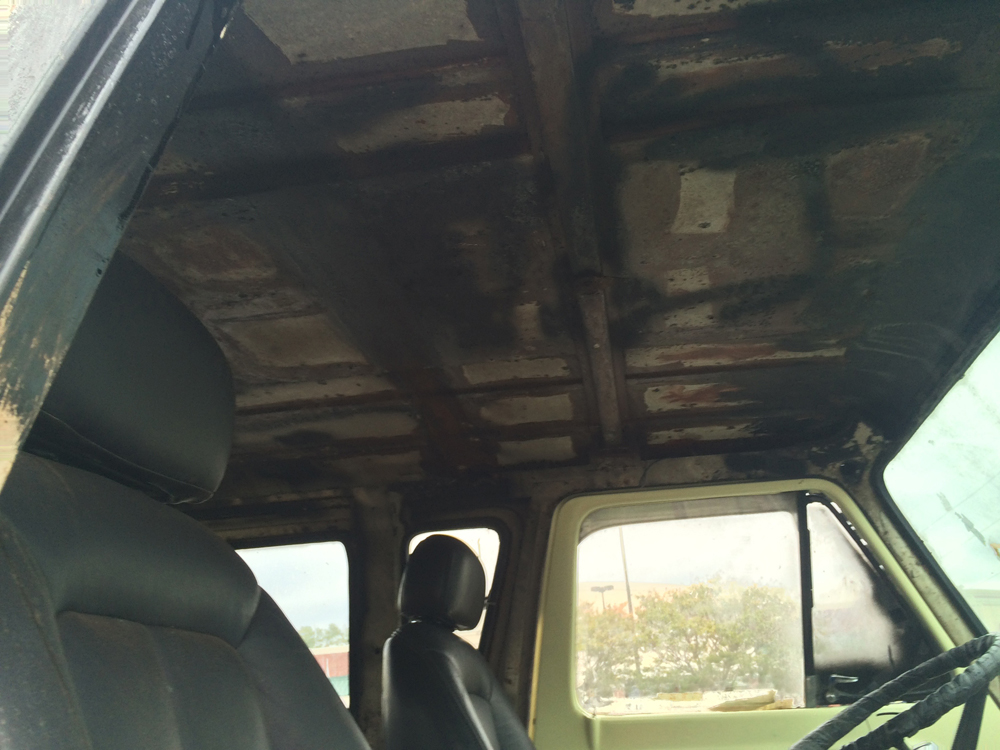

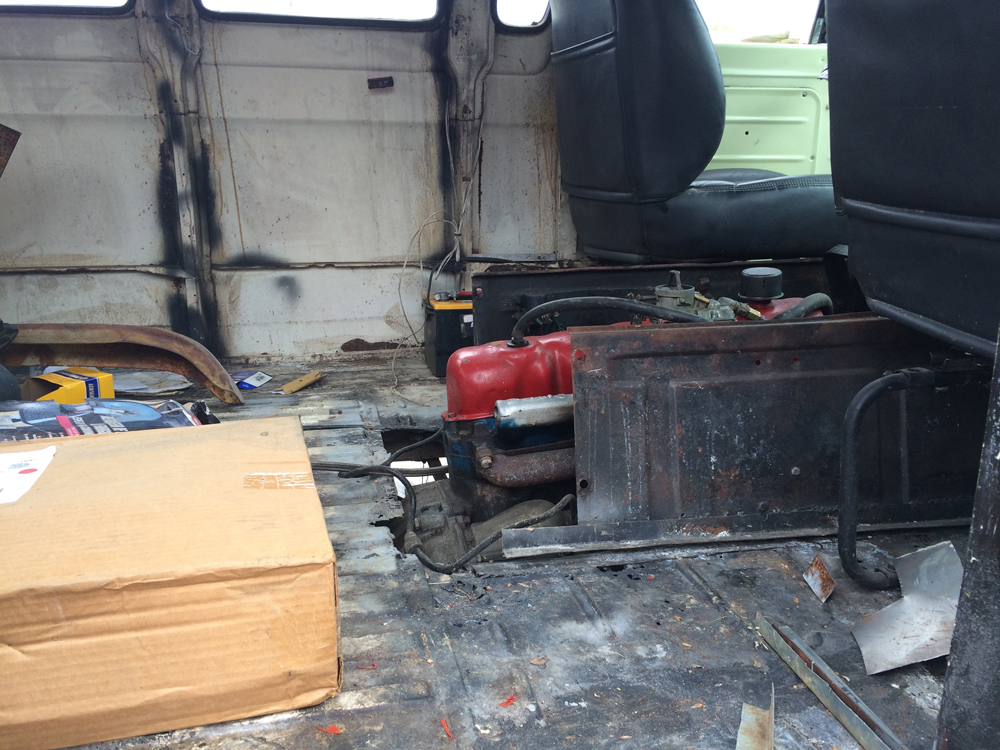

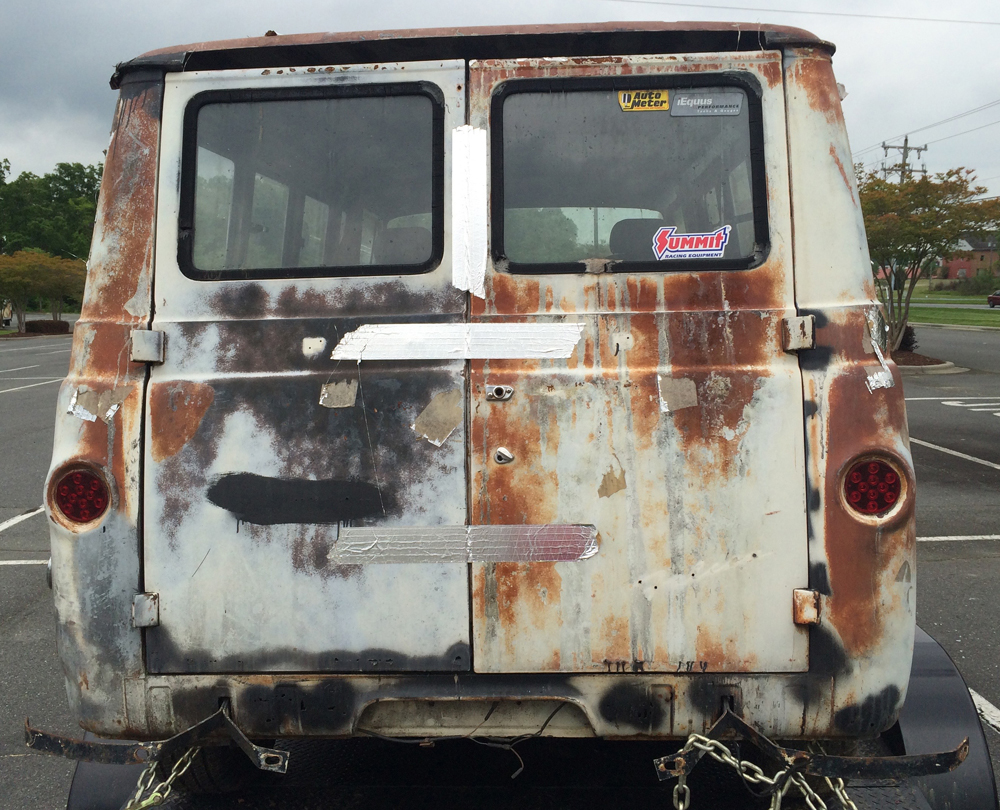

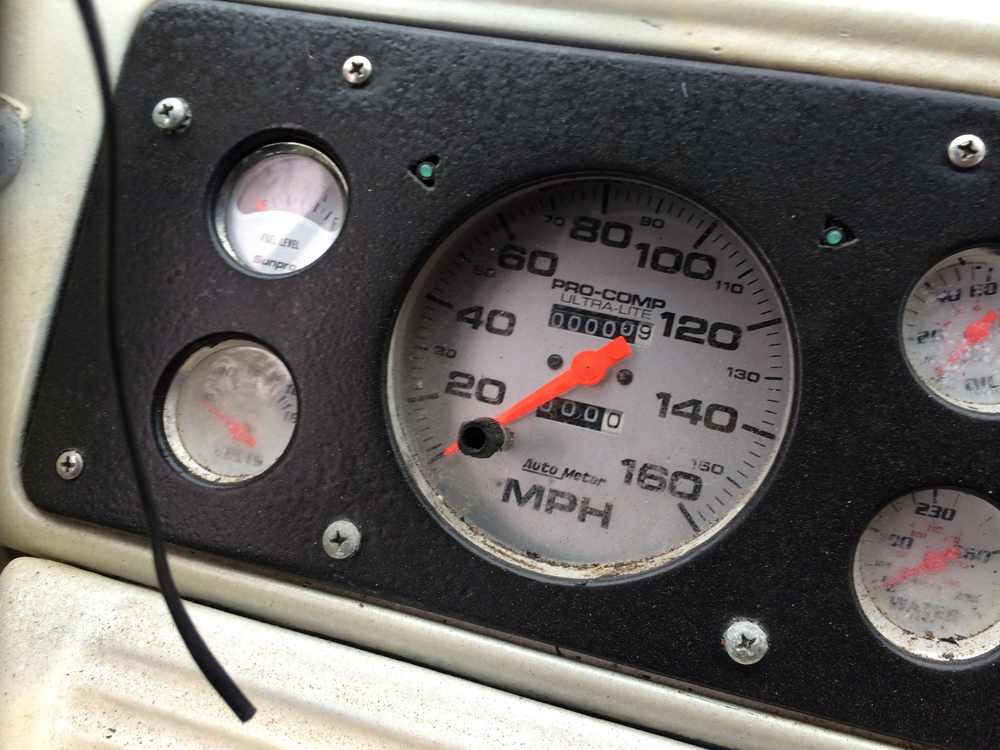

Photos

2015

Thanks for the positive comments that have been left on this site. It is still a work in progress.
