Econoline Identification

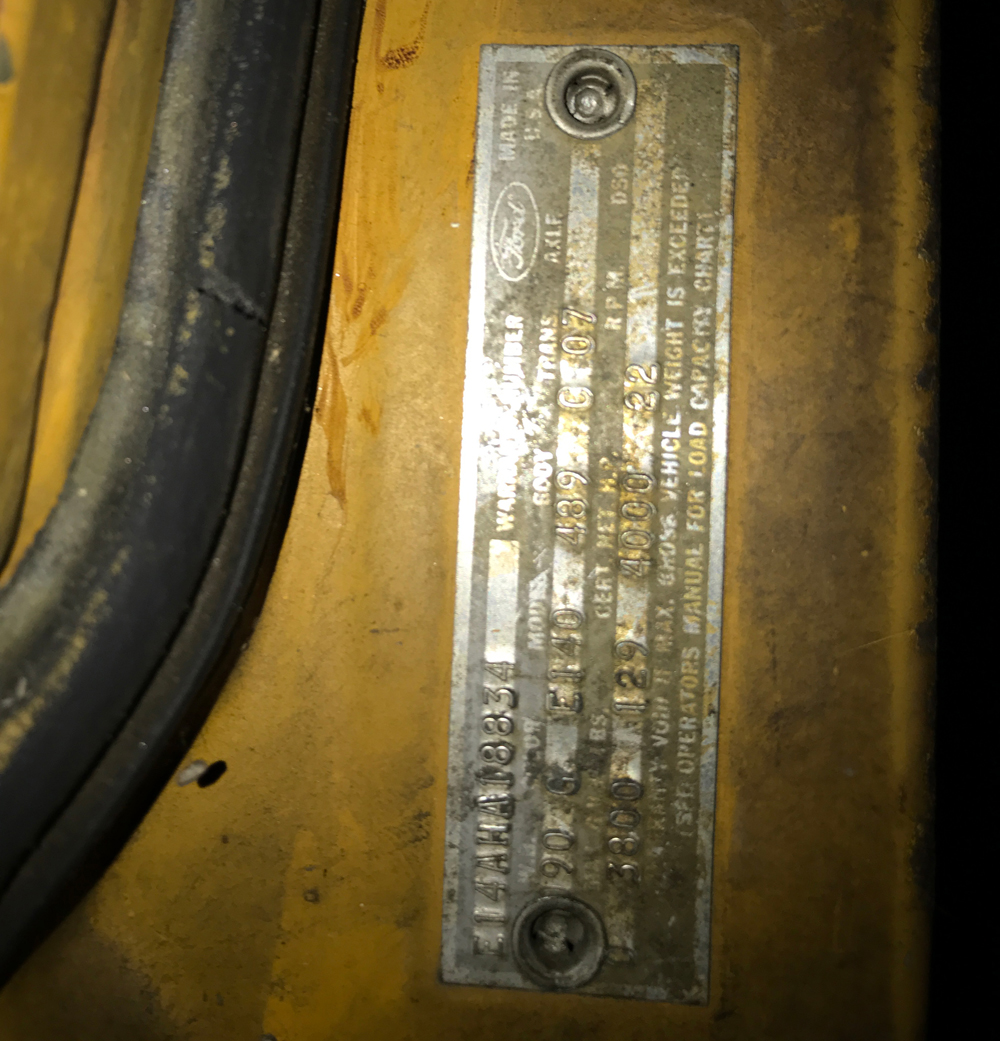

Here is the Warranty plate data from a specific Ford Econoline

Notes: No windows in side doors

Year - Model Name:		1967 E100
Warranty Number:		E14AHA18834
Series Code (1st - 3rd digits):	E14	Ford Econoline - Van
Engine (4th digit):	A	240 cui I6
Assembly Plant (5th digit):	H	Lorain, Ohio
Year/month built:		September 1966
Wheelbase (front to rear axle distance):	90	90"
Color:	G	Chrome Yellow (School Bus Yellow) 1526
Model:	E140	Van (regular length) 3,800 lbs. GVW, 1/2-ton payload
Interior Soft Trim (first digit of Body):	4	Medium beige crush vinyl and medium beige match stick pattern vinyl
Body Style (last digits in Body):	89	Van
Transmission:	C	Ford 3-speed manual, model 3.03 RAN Gears: 1st=2.99, 2nd=1.75, 3rd=1.00, R=3.17
Rear Axle:	07	WCR-S, 8-3/4" gear (9" axle) 3.00:1 ratio, 3050 lbs. rating
MAX G.V.W. LBS:	03800	3,800 pounds gross vehicle weight. 1/2-ton (1,000 lbs.) payload capacity
CERT. NET H.P. (Horsepower) R.P.M:	129 4000	129 H.P. @ 4,000 R.P.M.
Regional Sales District:	22	Charlotte
Special Order:		not a special order (or missing data)

NOTES: The following may or may not apply to this particular vehicle.

Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-January 1961, Ford started installing a ballast (weight) above the gas tank. The GVW is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity

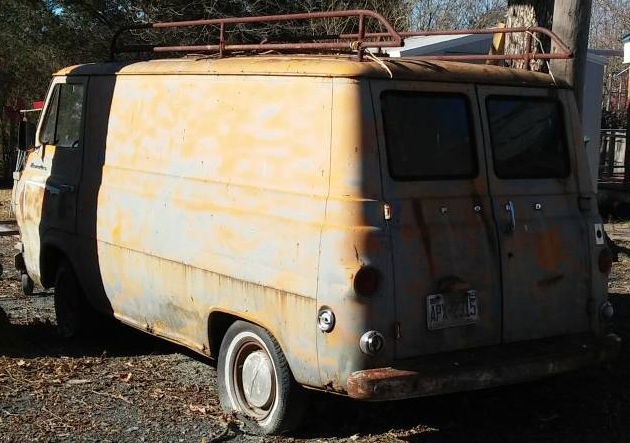

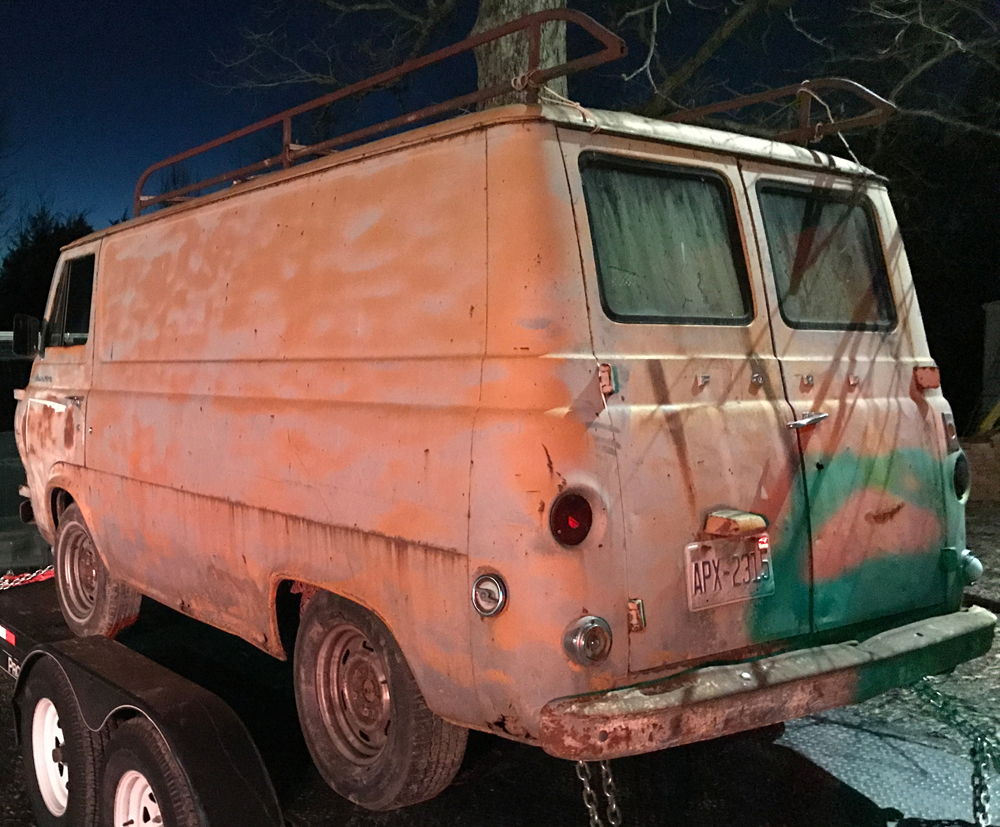

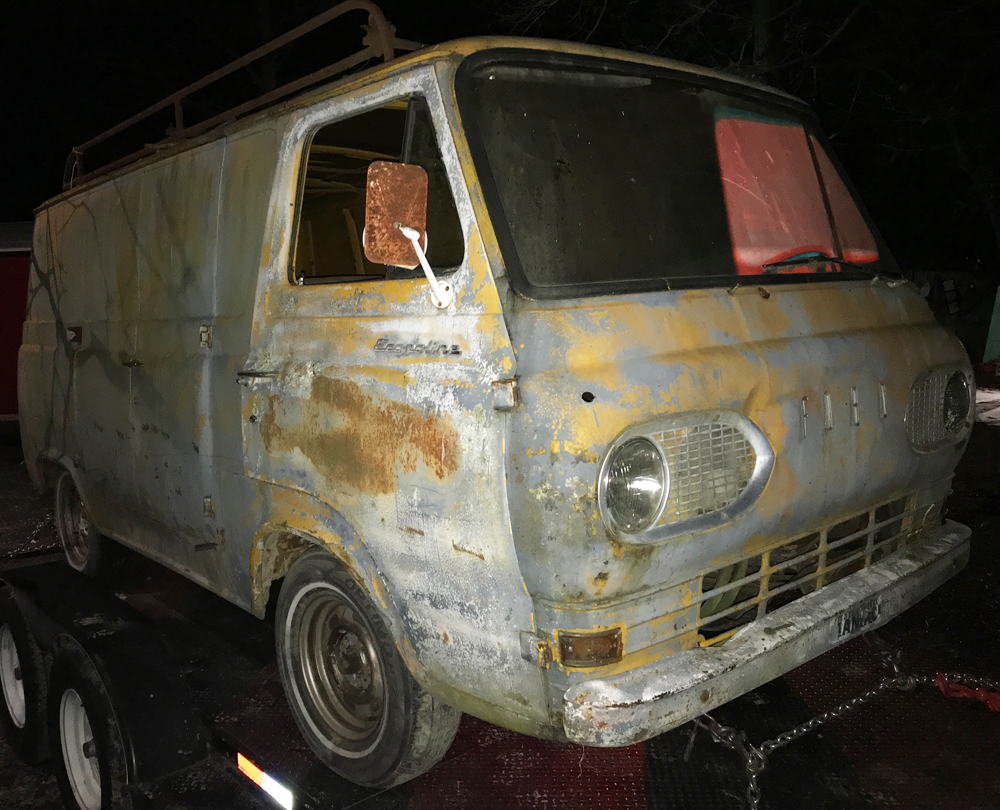

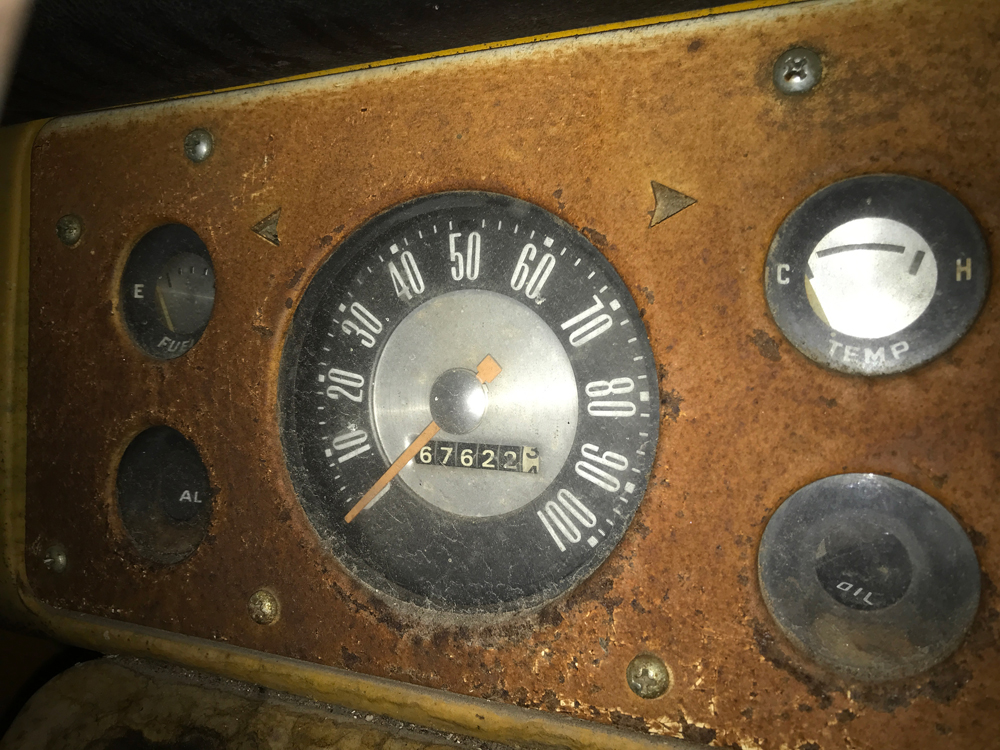

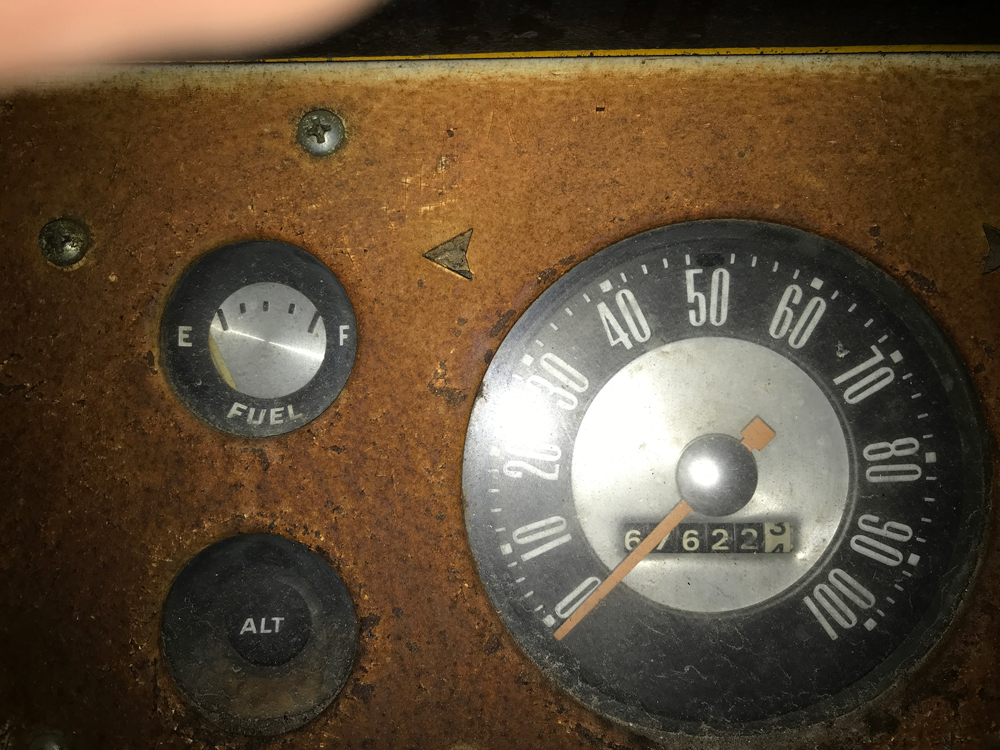

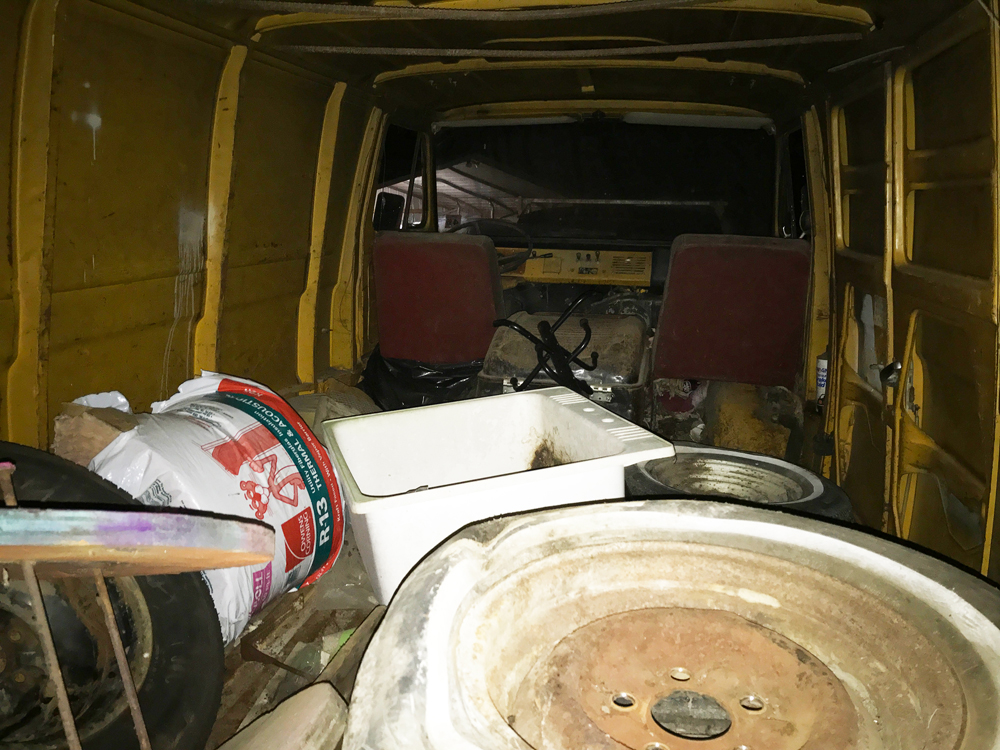

Photos

2018
