Econoline Identification

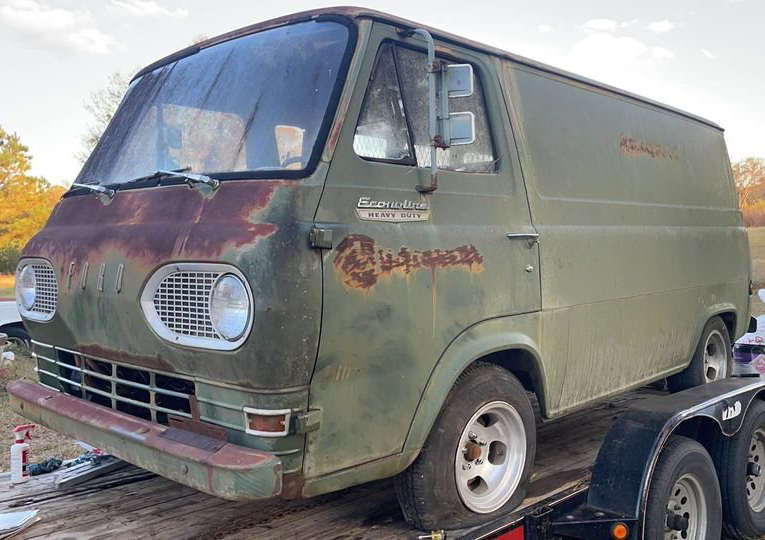

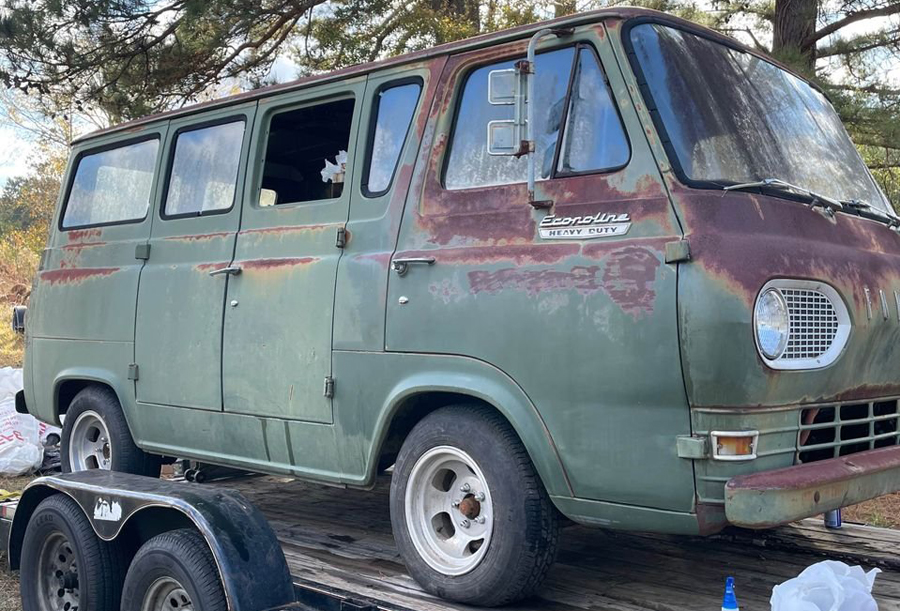

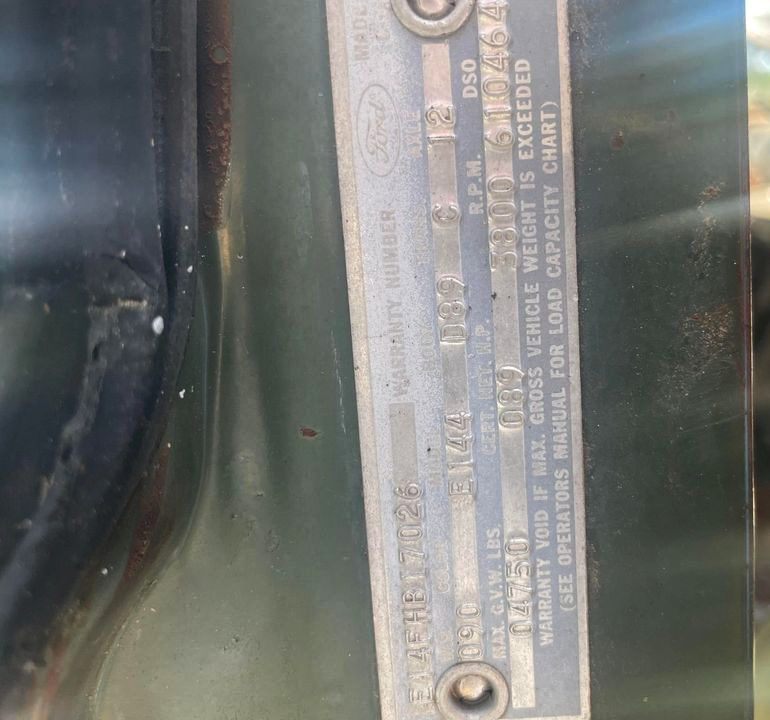

Here is the Warranty plate data from a specific Ford Econoline

display van,

Notes: Bell System van ??

Year - Model Name:		1967 E100
Warranty Number:		E14FHB17026
Series Code (1st - 3rd digits):	E14	Ford Econoline - Van
Engine (4th digit):	F	170 cui I6
Assembly Plant (5th digit):	H	Lorain, Ohio
Year/month built:		April 1967
Wheelbase (front to rear axle distance):	090	90"
Color:		if blank = special ordered color
Model:	E144	Van (regular length) (Heavy Duty) 4,750 lbs. GVW, 1-ton payload

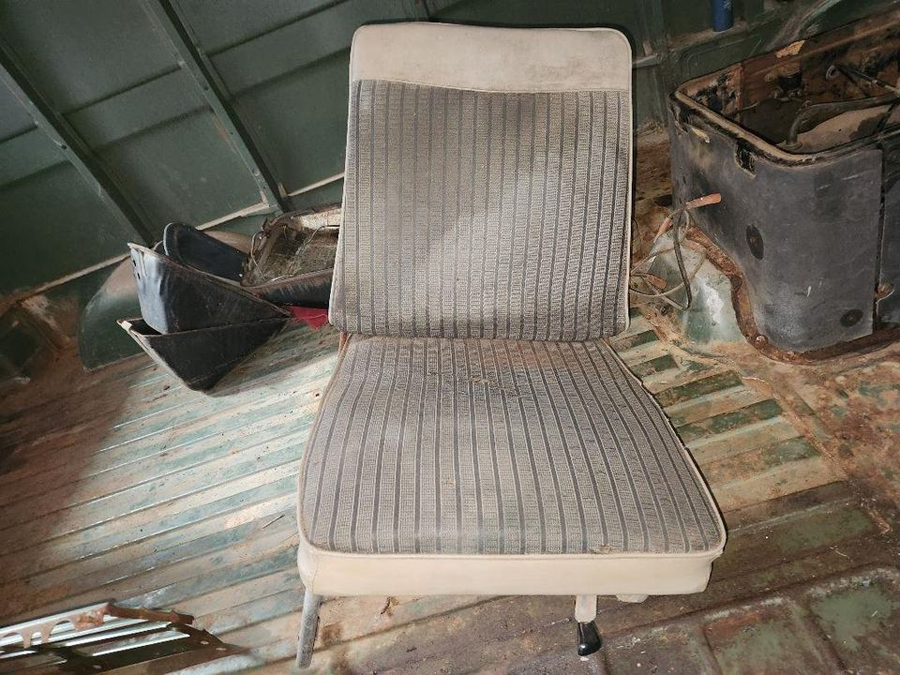

Interior Soft Trim (first digit of Body):	D	Custom Equipment Package Medium beige crush vinyl and medium beige leeds pattern woven plastic
Body Style (last digits in Body):	89	Van
Transmission:	C	Ford 3-speed manual, model 3.03 RAN Gears: 1st=3.41, 2nd=1.86, 3rd=1.00, R=3.51
Rear Axle:	12	WCR-M, 8-3/4" gear (9" axle) 4.11:1 ratio, 3050 lbs. rating
MAX G.V.W. LBS:	04750	4,750 pounds gross vehicle weight. 1-ton (2,000 lbs.) payload capacity
CERT. NET H.P. (Horsepower) R.P.M:	089 3800	89 H.P. @ 3,800 R.P.M.
Regional Sales District:	61	Dallas
Special Order:	0464	This vehicle was special ordered. If the paint code is blank, it might have been a special paint color.

NOTES: The following may or may not apply to this particular vehicle.

Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-January 1961, Ford started installing a ballast (weight) above the gas tank. The GVW is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity

Photos
