Econoline Identification

Here is the Warranty plate data from a specific Ford Econoline

5-window pickup,

Notes:

Year - Model Name:		1964 E100
Warranty Number:		E10TH508191
Series Code (1st - 3rd digits):	E10	Ford Econoline - pickup
Engine (4th digit):	T	170 cui I6
Assembly Plant (5th digit):	H	Lorain, Ohio
Year/month built:		February 1964
Wheelbase (front to rear axle distance):	090	90"
Color:	M	Wimbledon White 1619
Model:	E103	Pickup 3,600 lbs. GVW, 1/2-ton payload
Interior Soft Trim (first digit of Body):	E	Custom Equipment Package Red crush vinyl and red check stripe woven plastic
Body Style (last digits in Body):	87	Pickup 87A or 87B
Transmission:	F	Dagenham 4-speed manual. Gears: 1st=3.163, 2nd=2.214, 3rd=1.412, 4th=1.000, R=3.346
Rear Axle:	02	WCC-E or WCC-N, 7-1/4" gear 4.00:1 ratio, 2300 lbs. rating
MAX G.V.W. LBS:	3600	3,600 pounds - gross vehicle weight. 1/2-ton (1,000 lbs.) payload capacity
CERT. NET H.P. (Horsepower) R.P.M:	85 3600	85 H.P. @ 3,600 R.P.M.
Regional Sales District:	75	Phoenix
Special Order:		not a special order (or missing data)

NOTES: The following may or may not apply to this particular vehicle.

Panel Van = no side cargo doors, no side windows
Standard Pickup = has 3 or 5 windows (not counting the windshield)
Custom/Deluxe Pickup = has 5 windows
Falcon Deluxe/Custom = has side trim
Super = Extended length
exc. = Excluding
pre-ballast = In mid-January 1961, Ford started installing a ballast (weight) above the gas tank. The GVW is different for Econolines without the ballast.
(H.D.) = Heavy Duty - thicker steel frame, extra leaves in springs, heavy-duty rear axle, heavier payload capacity

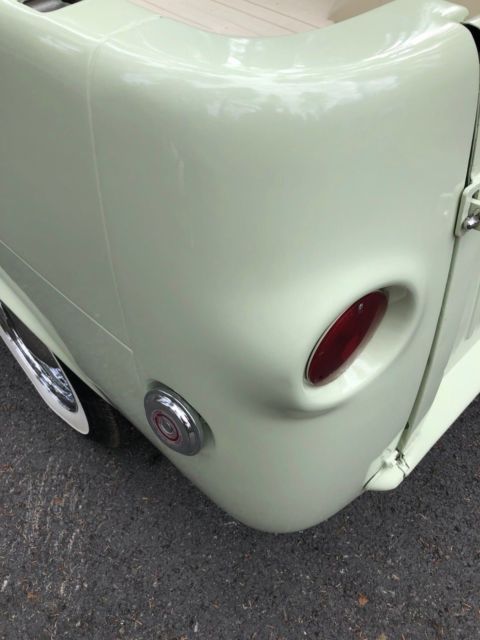

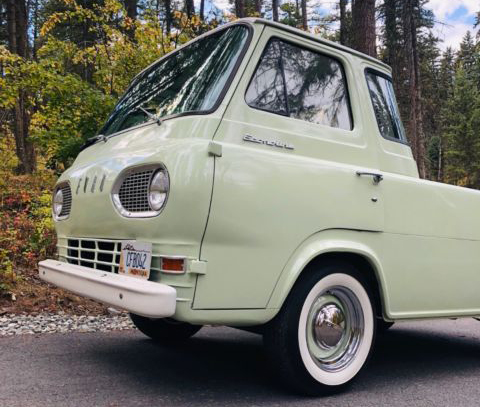

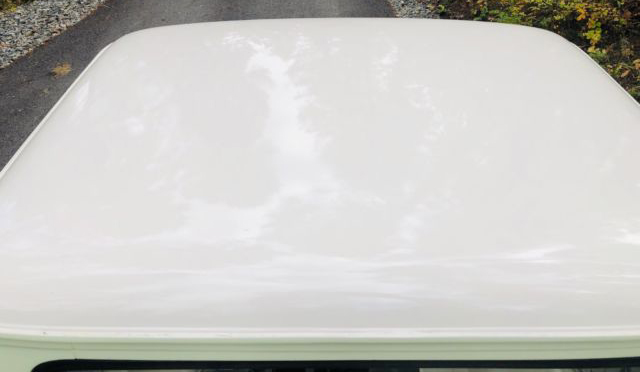

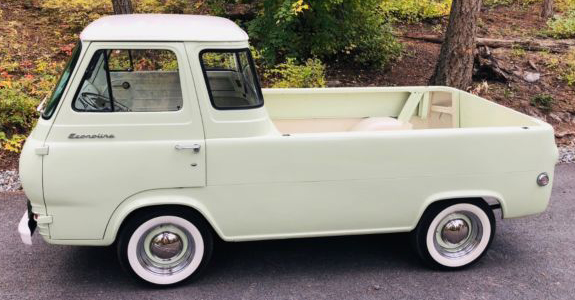

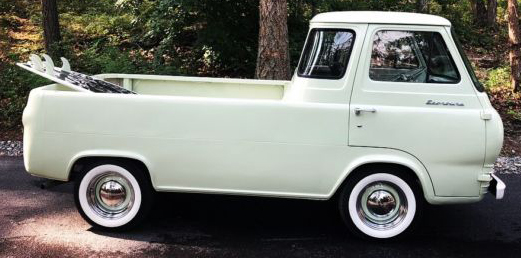

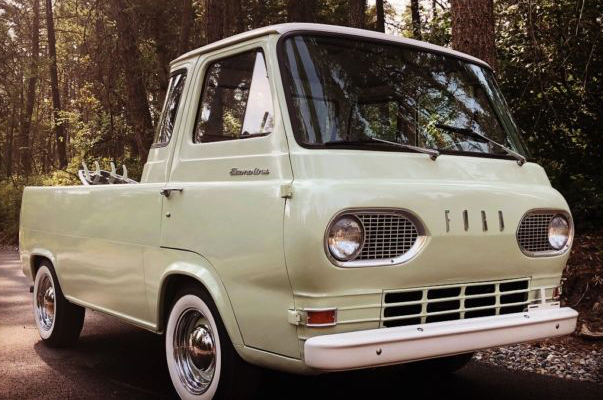

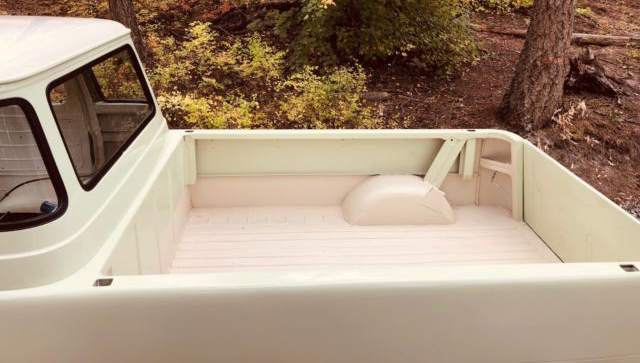

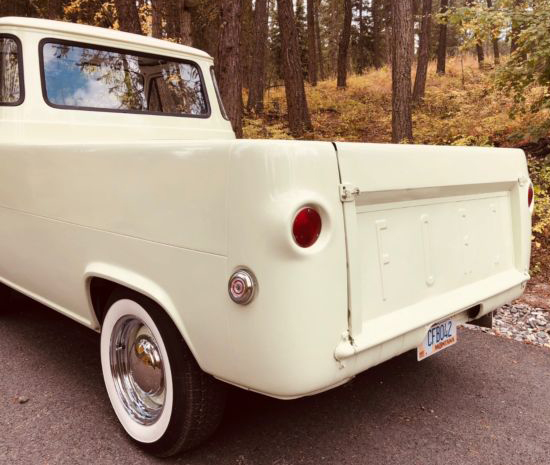

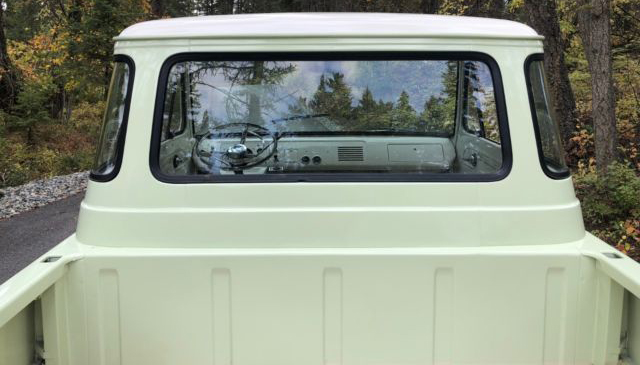

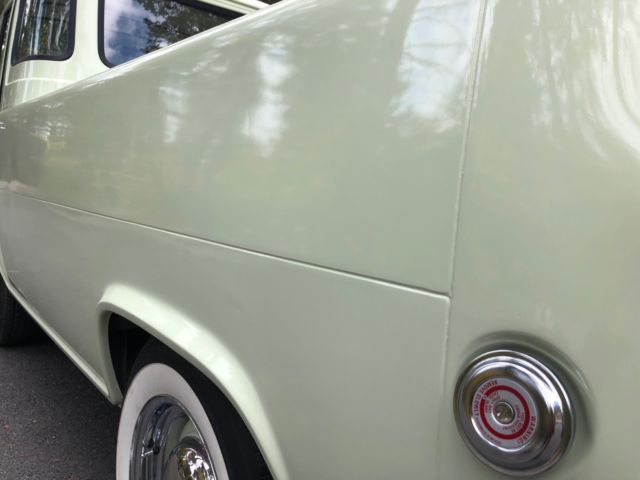

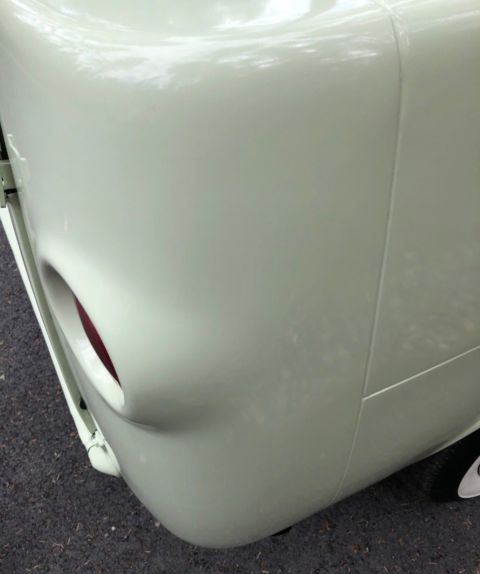

Photos
